Images are for reference only
Square D

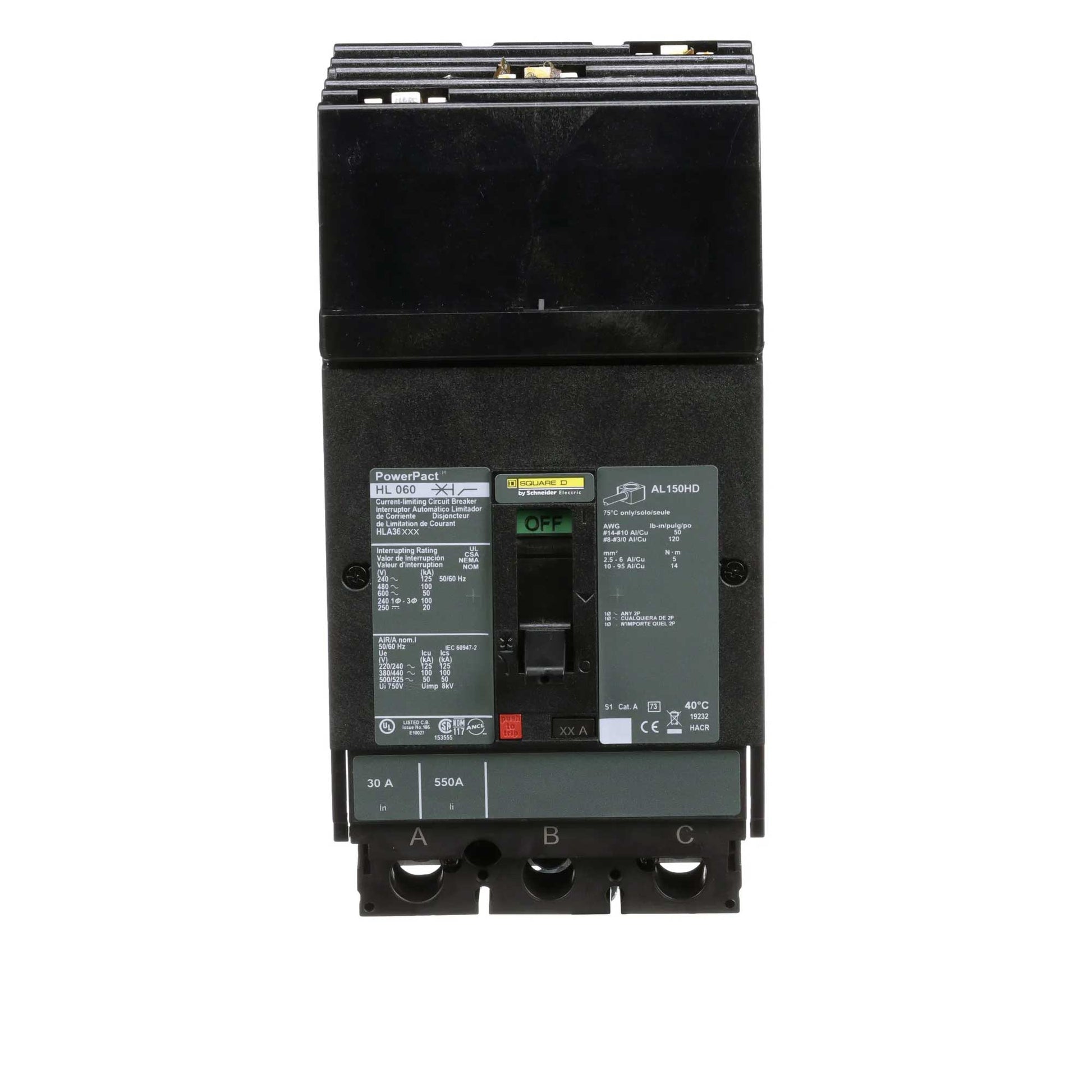

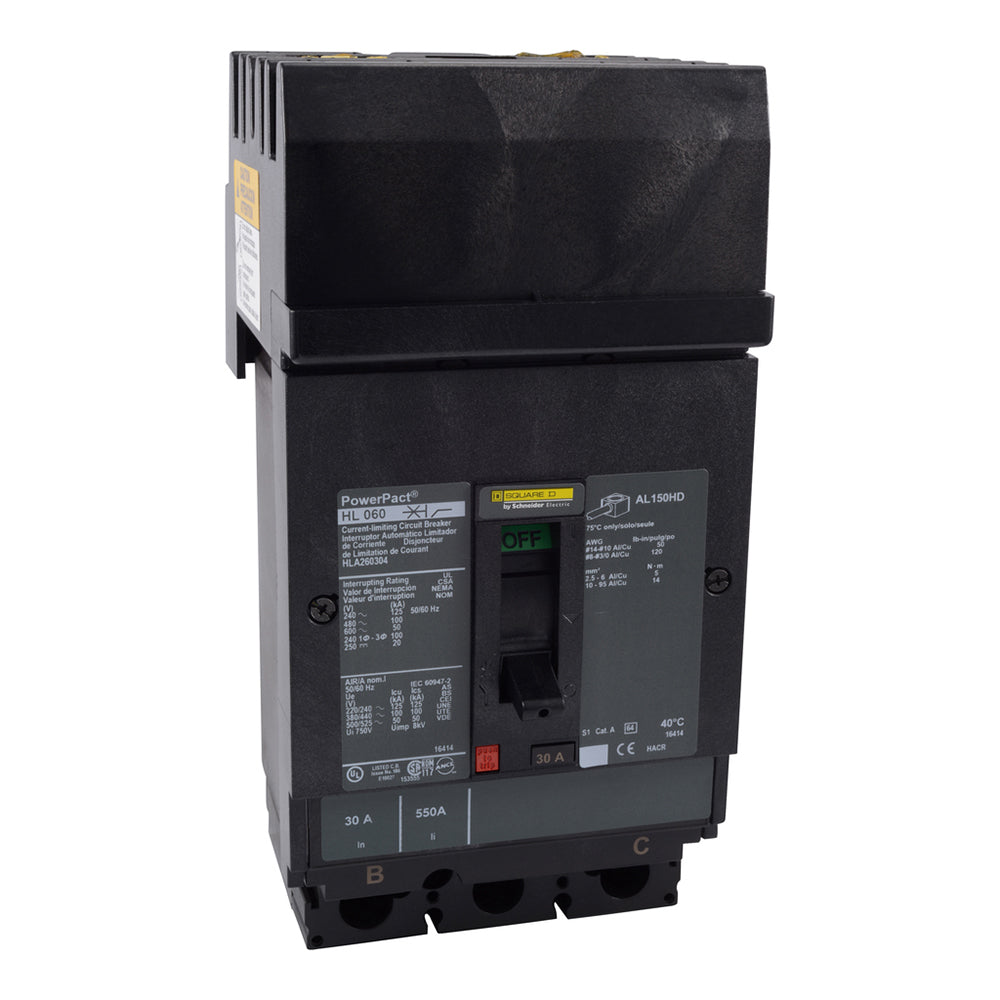

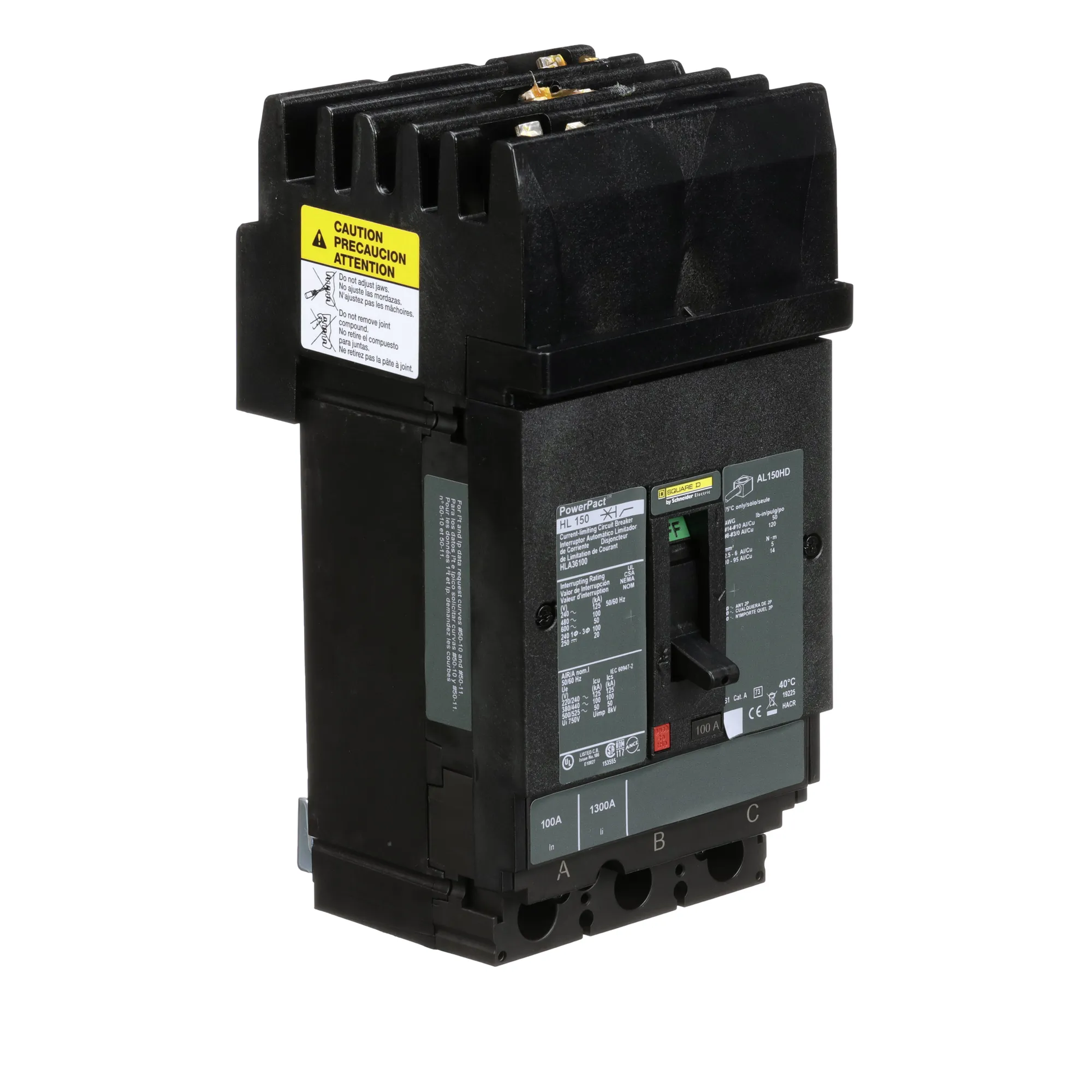

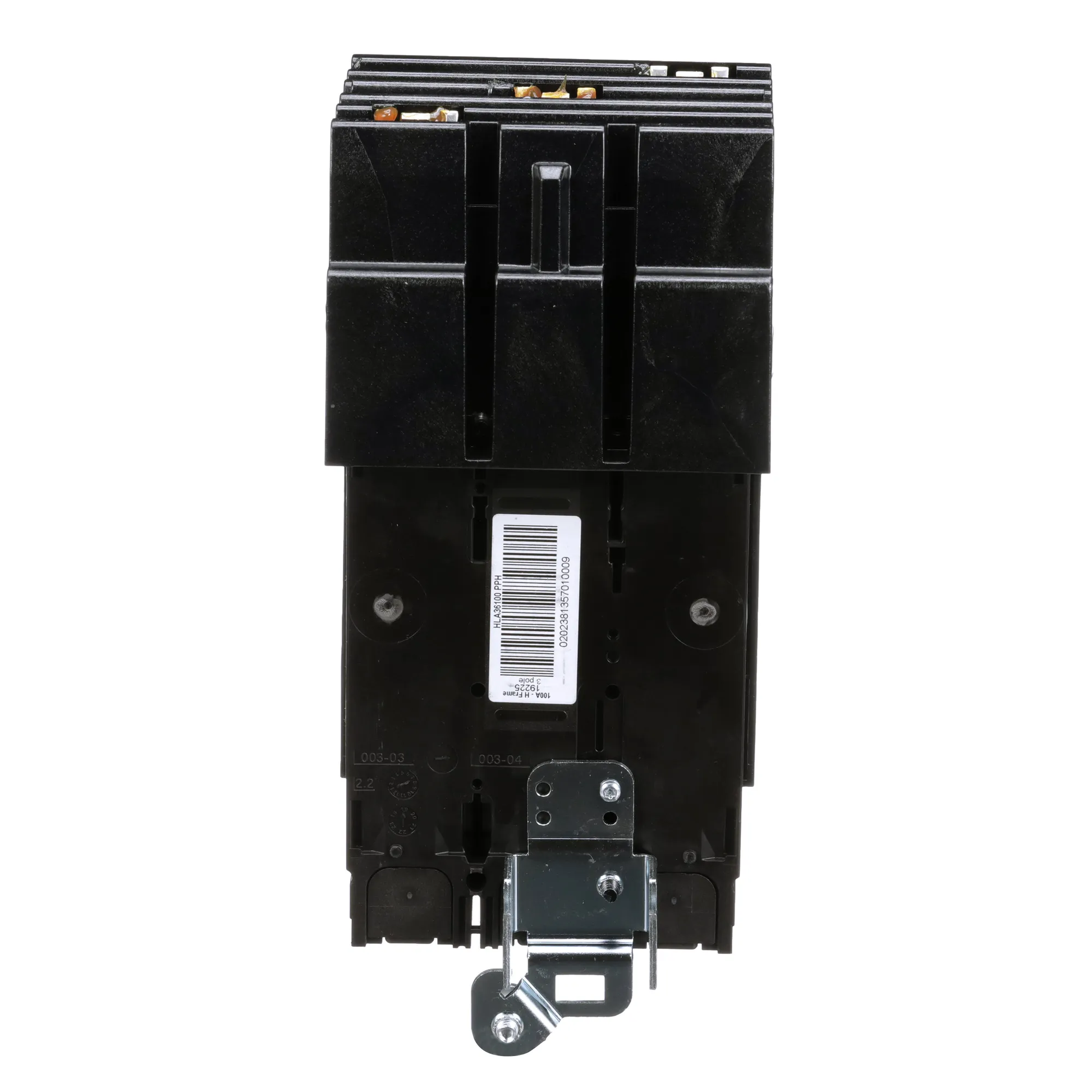

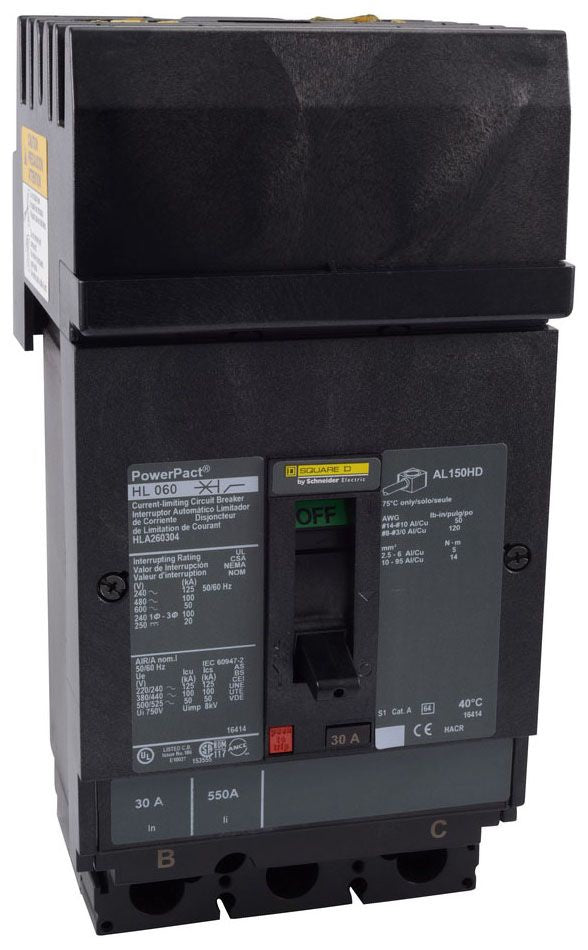

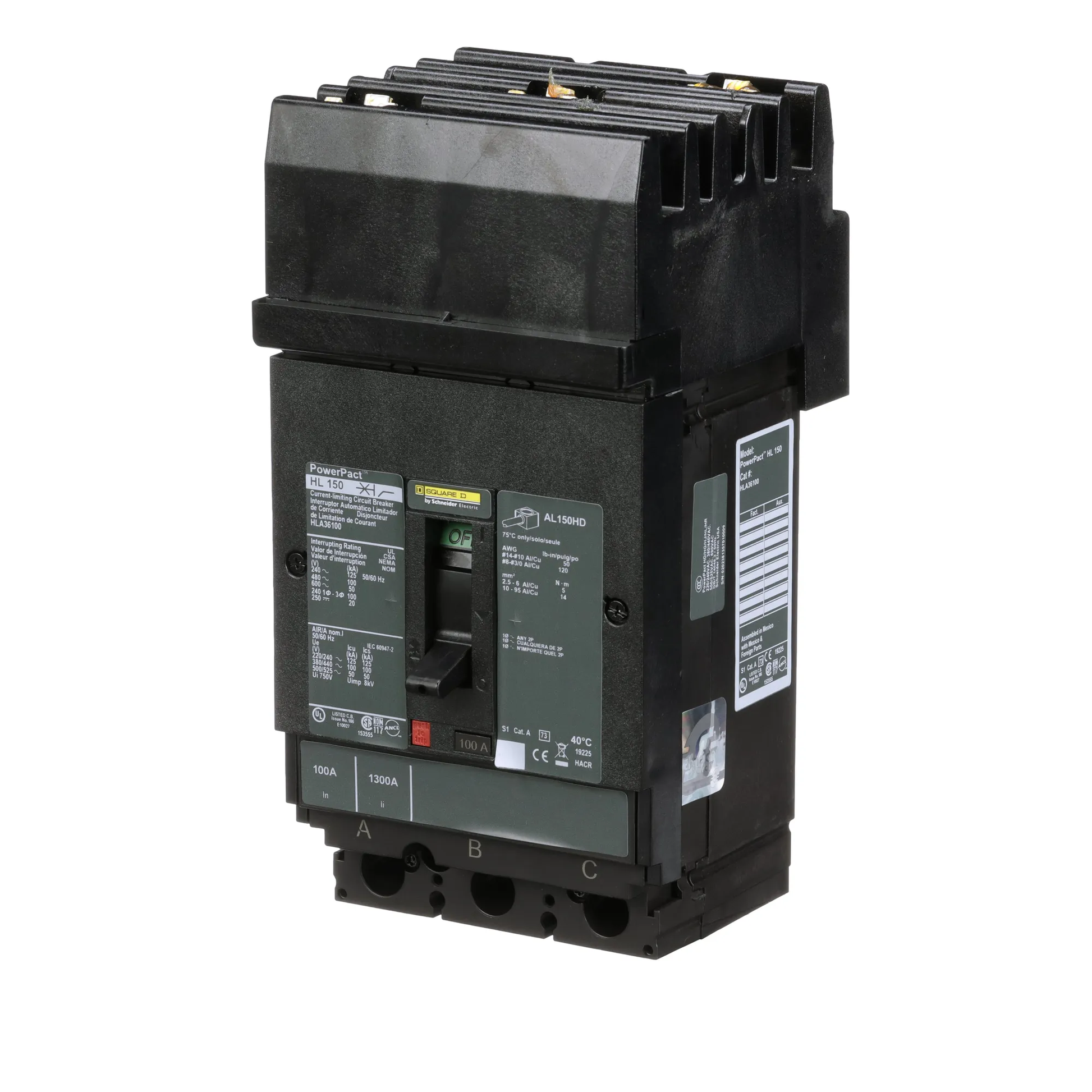

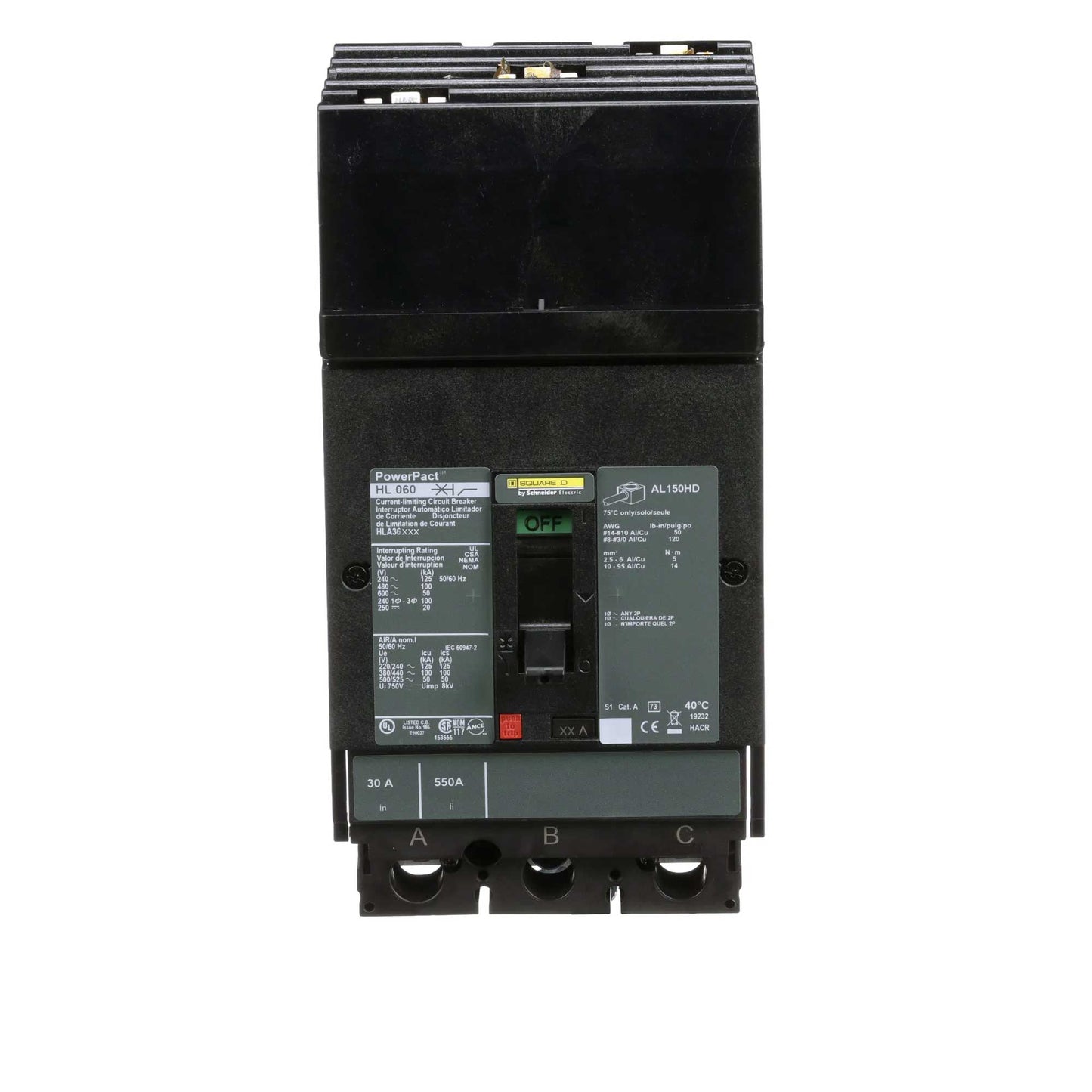

Square D HLA36070 Circuit Breaker | 600V 70A 3P 100kA@480V I-Line Plug-In HLA
Square D HLA36070 Circuit Breaker | 600V 70A 3P 100kA@480V I-Line Plug-In HLA
Price:
Sale
Sold out
Regular price
$1,309.36 USD
Regular price
$3,243.00 USD
Sale price
$1,309.36 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 4 left
Couldn't load pickup availability
Product Description:
The Square D HLA36070 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 70 amp breaker rated for 600 Volts with an AIC rating of 100kA@480V. This unit features an I-Line Style Plug-In connection and provides Thermal Magnetic protection for reliable circuit interruption.
Key Features:
✔ Part Number: HLA36070
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HLA
✔ Voltage: 600
✔ Amperage: 70
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 100kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: H
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901673118
✔ GTIN: 00785901673118
✔ Country of Origin: Mexico

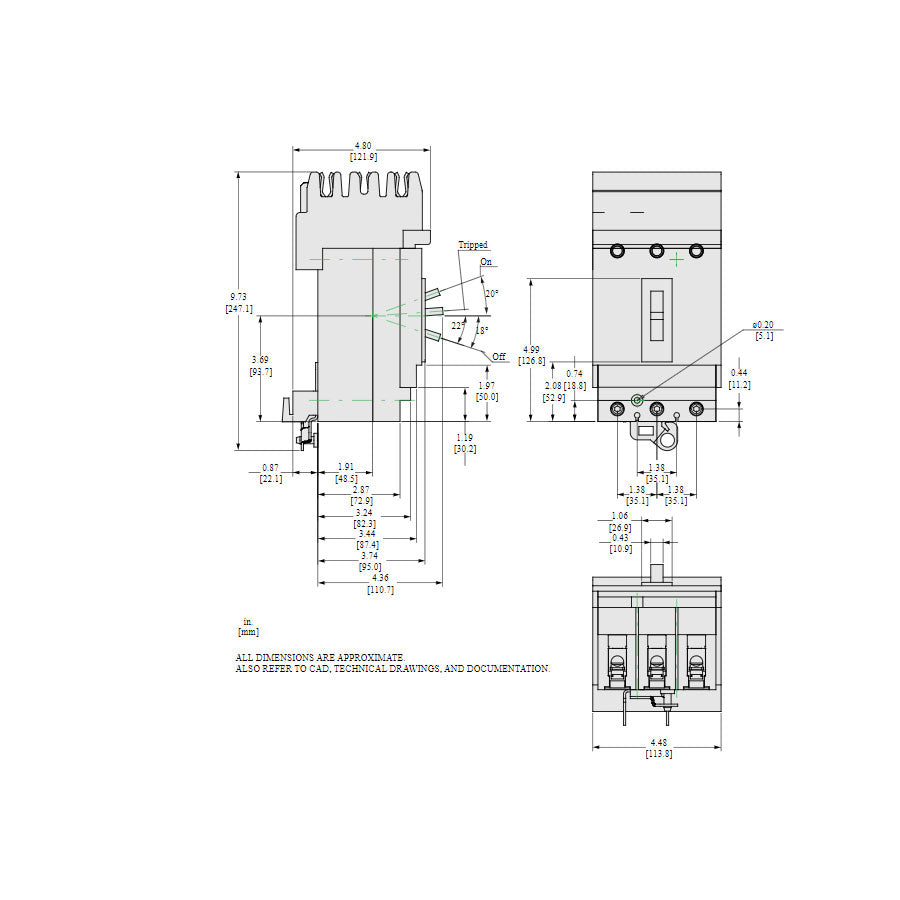

✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 2.46
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
