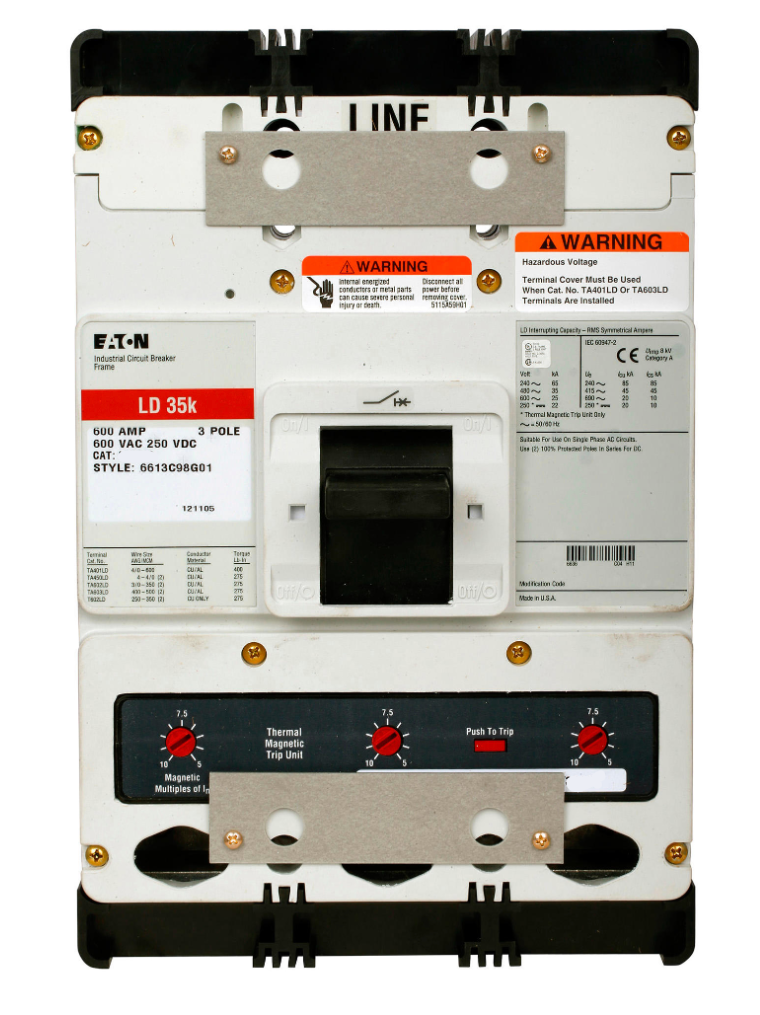

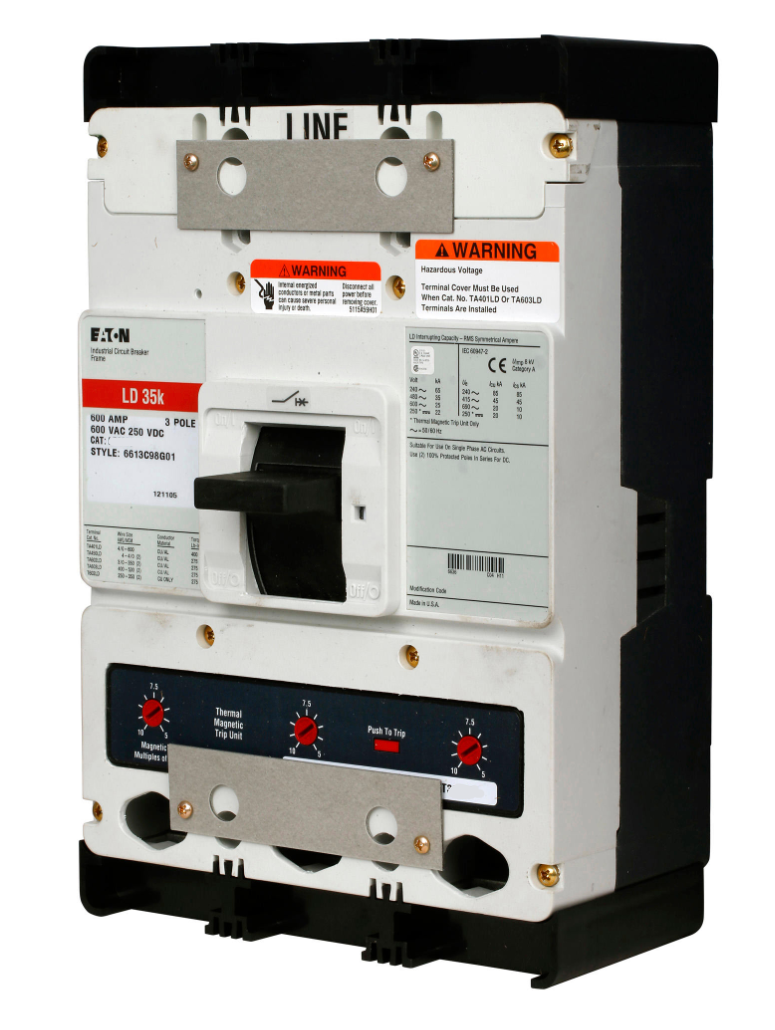

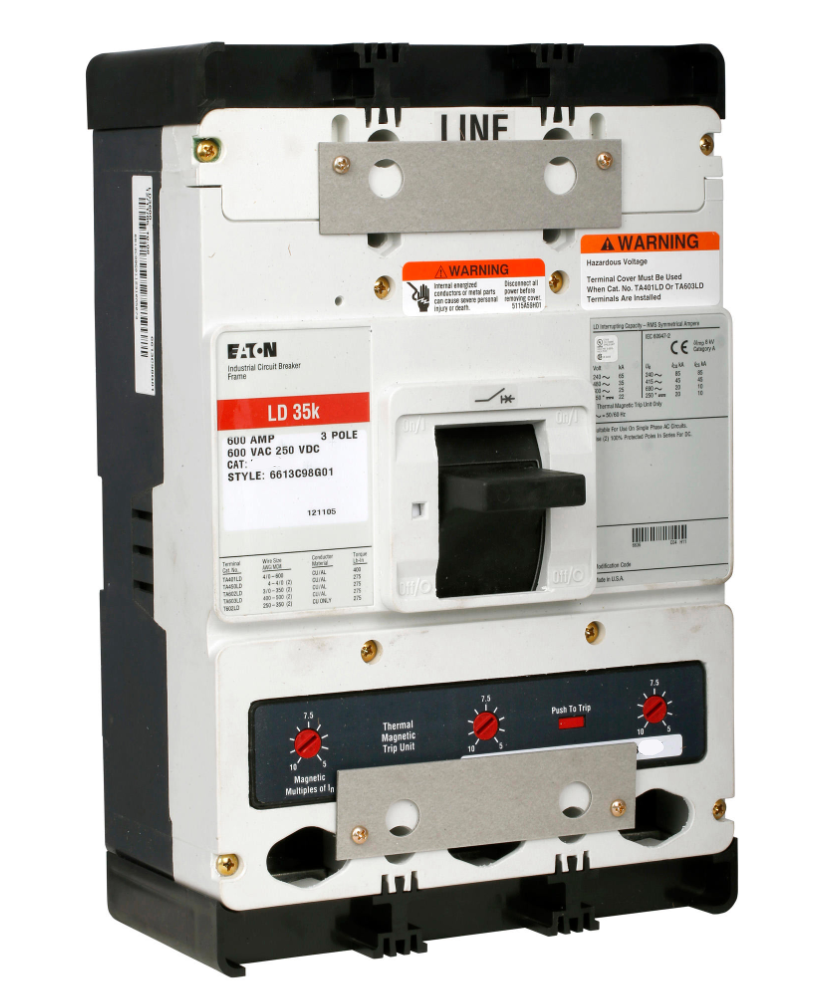

HLDB3600FT33W Cutler-Hammer Eaton 600A 3-Pole L-Frame Circuit Breaker Frame, No Trip Unit or Terminals

HLDB3600FT33W Cutler-Hammer Eaton 600A 3-Pole L-Frame Circuit Breaker Frame, No Trip Unit or Terminals

Building a 600 amp L-frame back up from components? This is the frame half of the job. The HLDB3600FT33W is the Eaton Series C L-frame breaker frame in the HLDB interrupting tier, three poles, 600A, good for 100 kAIC at 240 Vac and 65 kAIC at 480 Vac.

Know what shows up on the truck before you schedule the outage. Eaton sells this one as a frame only, which means no trip unit in the box and no terminals either, and both get their own line on the PO. The T33 in the number tells you which trip unit the frame is set up for, the Digitrip 310 RMS electronic LS type, and the W on the end is why there are no lugs. It runs 50 to 60 Hz.

Common Applications

• Switchboard, panelboard, and motor control center sections built with Series C breakers
• Rebuilding an L-frame breaker from frame, trip unit, and terminals
• Busway assemblies
• Main and branch circuit protection in distribution systems
• Data centers, healthcare, marine, oil and gas, and water and wastewater sites

Key Features

• Frame only: No trip unit and no terminals ship with this number.
• HLDB interrupting tier: 100 kAIC at 240 Vac, 65 kAIC at 480 Vac.
• 600A three-pole frame: Series C L-frame, 600 A rating, three poles.
• Set up for a 310 RMS LS trip unit: The T33 code calls out the Digitrip 310 RMS electronic LS trip type.
• 50 to 60 Hz: Manufacturer-stated frequency rating.
• UL Listed: Manufacturer certification is UL Listed.

Specifications

• Catalog Number: HLDB3600FT33W
• Manufacturer: Eaton (Cutler-Hammer)
• Product Type: Molded case circuit breaker frame
• Series: Series C
• Frame: L
• Circuit Breaker Type: HLDB
• Configuration: Frame only, trip unit and terminals not included
• Number of Poles: Three-pole
• Amperage Rating: 600 A
• Trip Unit Designation: Digitrip 310 RMS, electronic LS trip type
• Trip Type Code: T167
• Interrupting Rating: 100 kAIC at 240 Vac; 65 kAIC at 480 Vac
• Terminals: Without terminals
• Frequency Rating: 50 to 60 Hz
• Certification: UL Listed

Product Identification

• UPC: 786679281086
• Weight: 19.7 lb, manufacturer-stated product weight

FAQ

Is there a trip unit in the box? There is not. Eaton builds this catalog number as a frame only, so the trip unit is a separate part number.

Does it come with lugs? No lugs and no terminals. The W suffix means the frame ships bare, so put terminals on the order.

How many poles and what amperage? Three poles at a 600 A rating.

What can it interrupt? This frame is rated 100 kAIC at 240 Vac and 65 kAIC at 480 Vac.

Which trip unit does the T33 code point to? The Digitrip 310 RMS electronic LS type.
