Square D HLL26050 Circuit Breaker | 600V 50A 2P 100kA@480V Feed-Thru Powerpact HLL

Product Description:

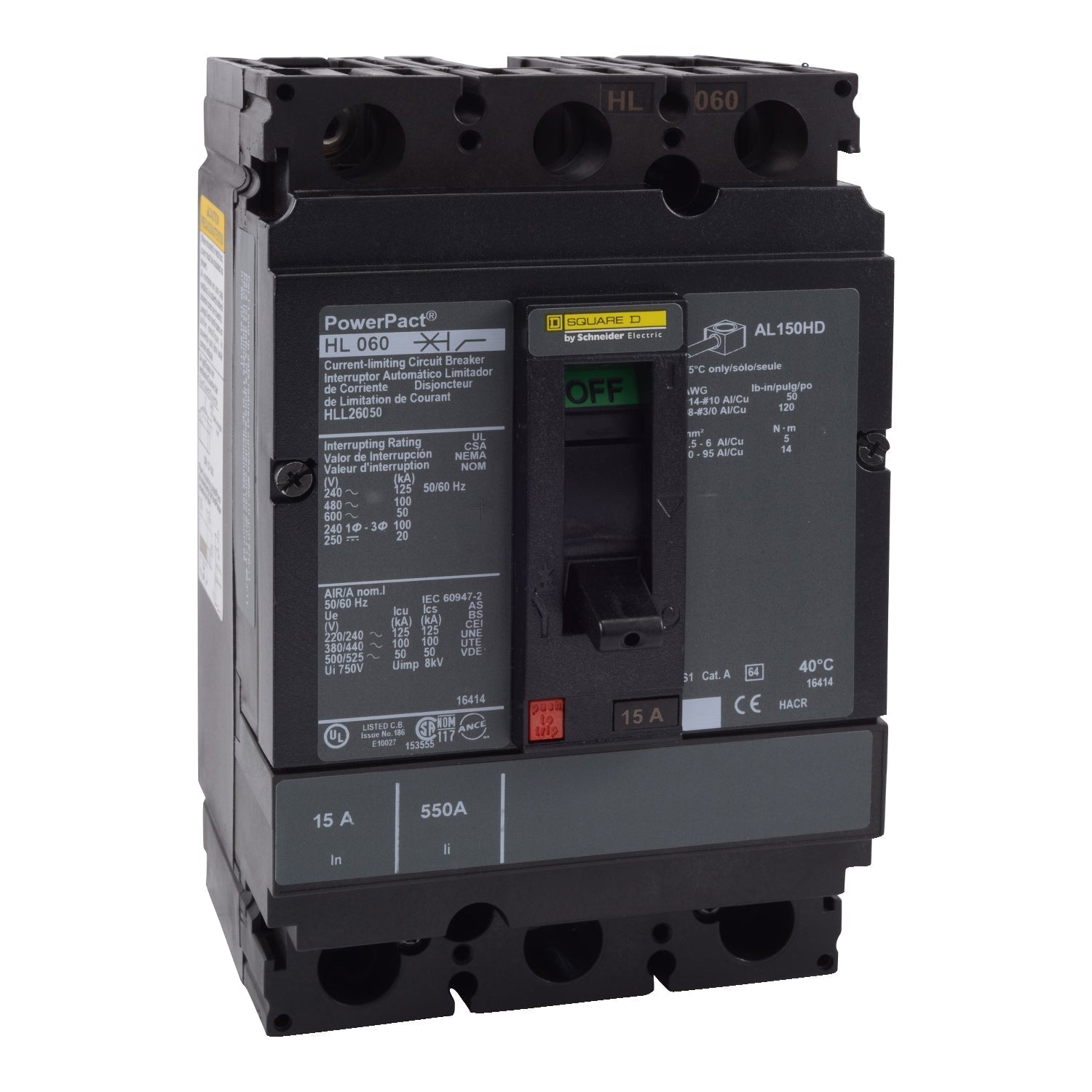

The Square D HLL26050 is a Molded Case Circuit Breaker from the Powerpact family. It is a 2-pole, 50 amp breaker rated for 600 Volts with an AIC rating of 100kA@480V. This model features Feed-Thru connections and provides Thermal Magnetic protection for reliable circuit interruption.

Key Features:
✔ Part Number: HLL26050
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HLL
✔ Voltage: 600
✔ Amperage: 50
✔ Poles: 2
✔ AIC rating: 100kA@480V
✔ Connection: Feed-Thru
✔ Protection: Thermal Magnetic
✔ Frame Size: H Frame
✔ UPC: 785901934769
✔ GTIN: 00785901934769
✔ Country of Origin: United States
✔ Dimensions: Height 6.42 in (163 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 1.81
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
