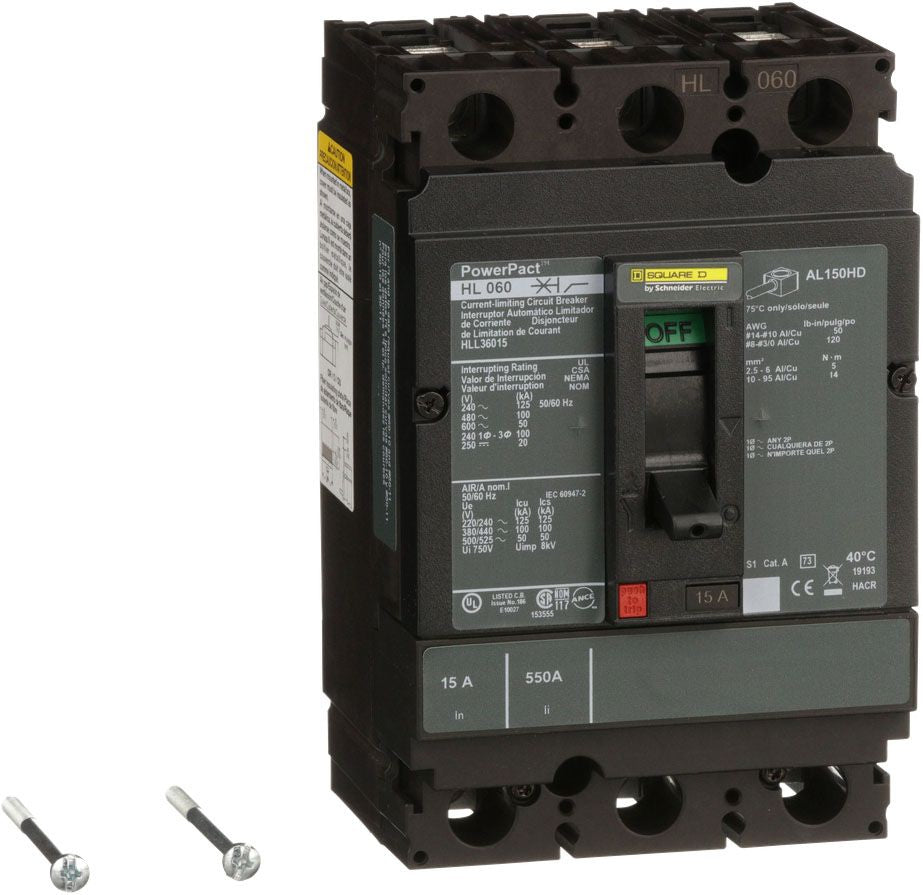

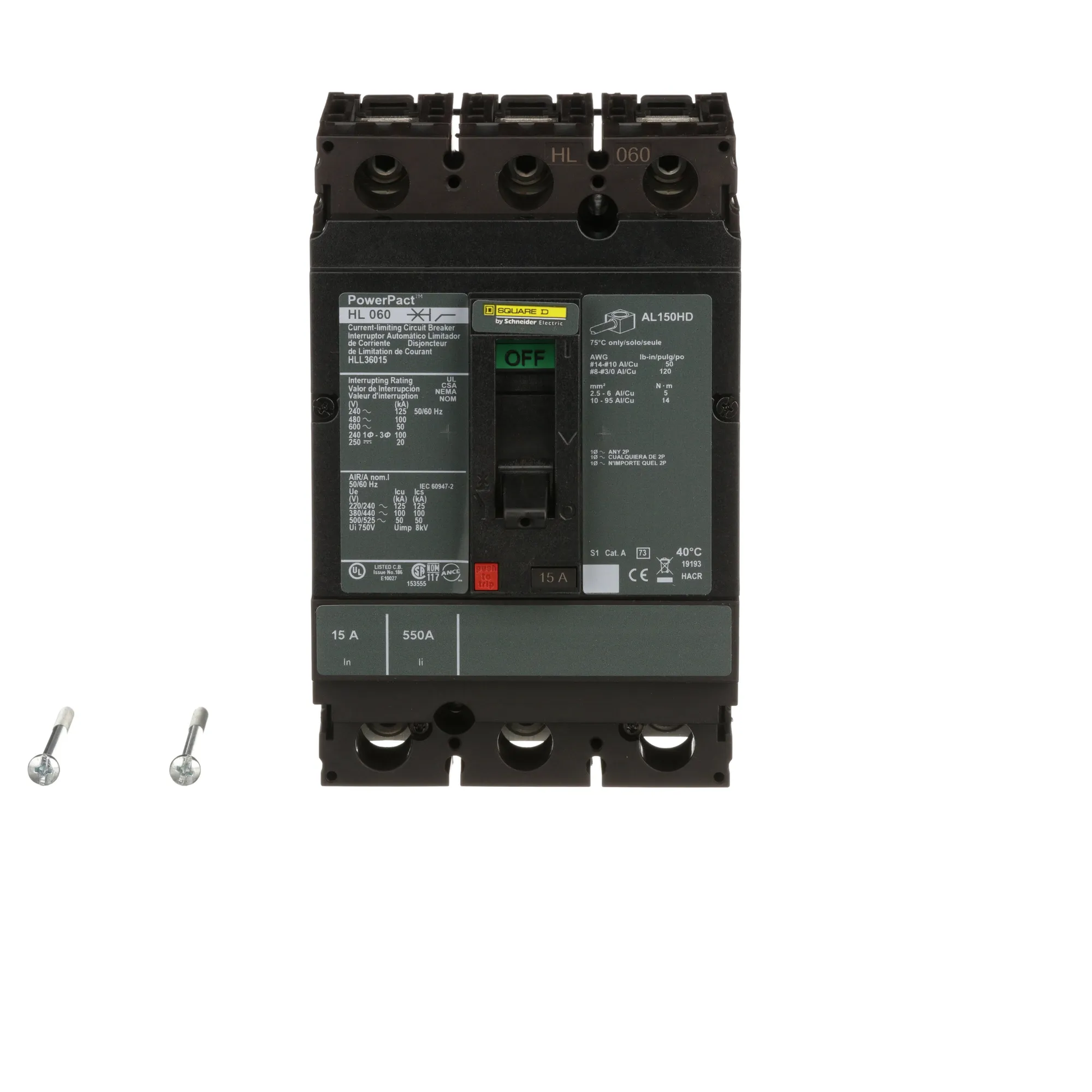

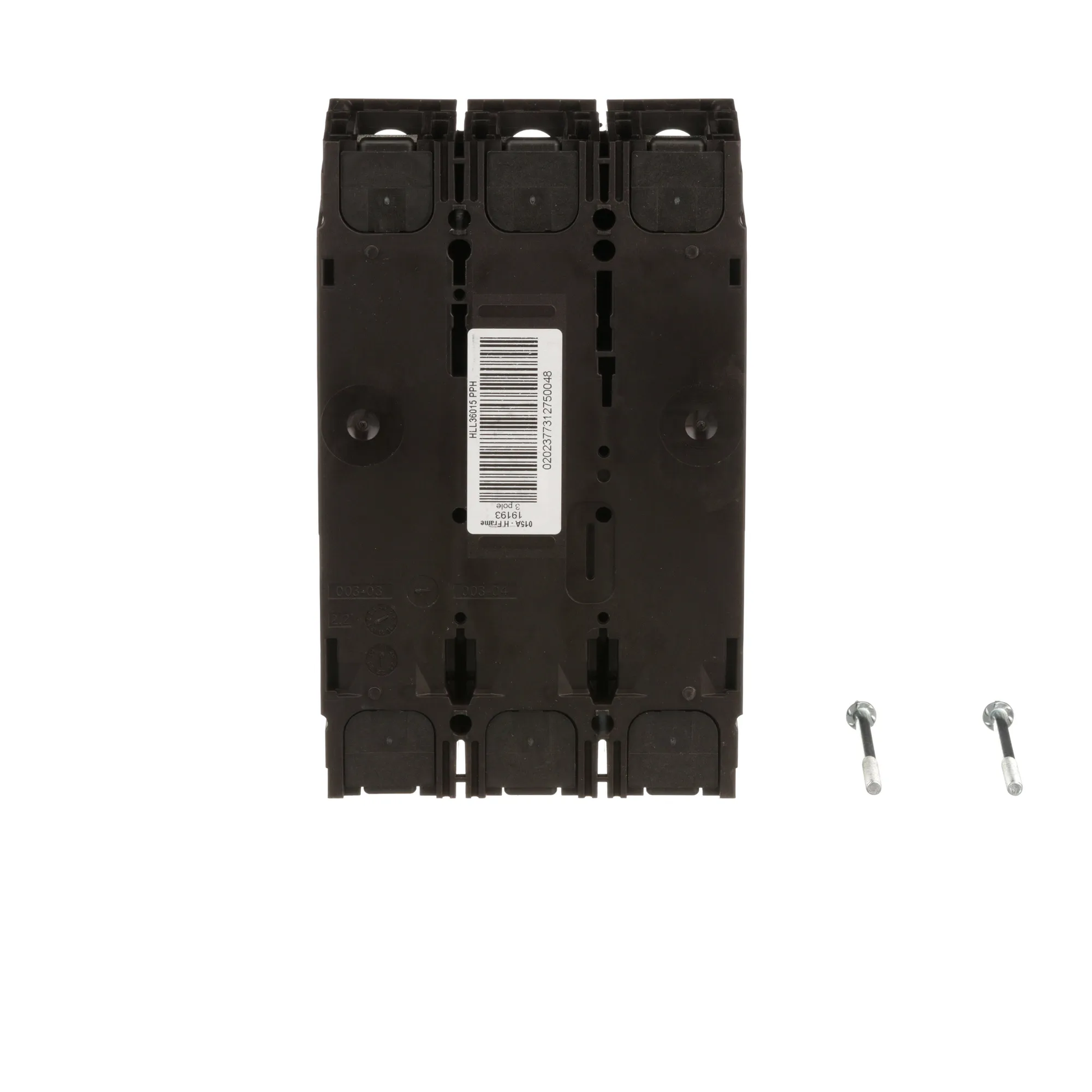

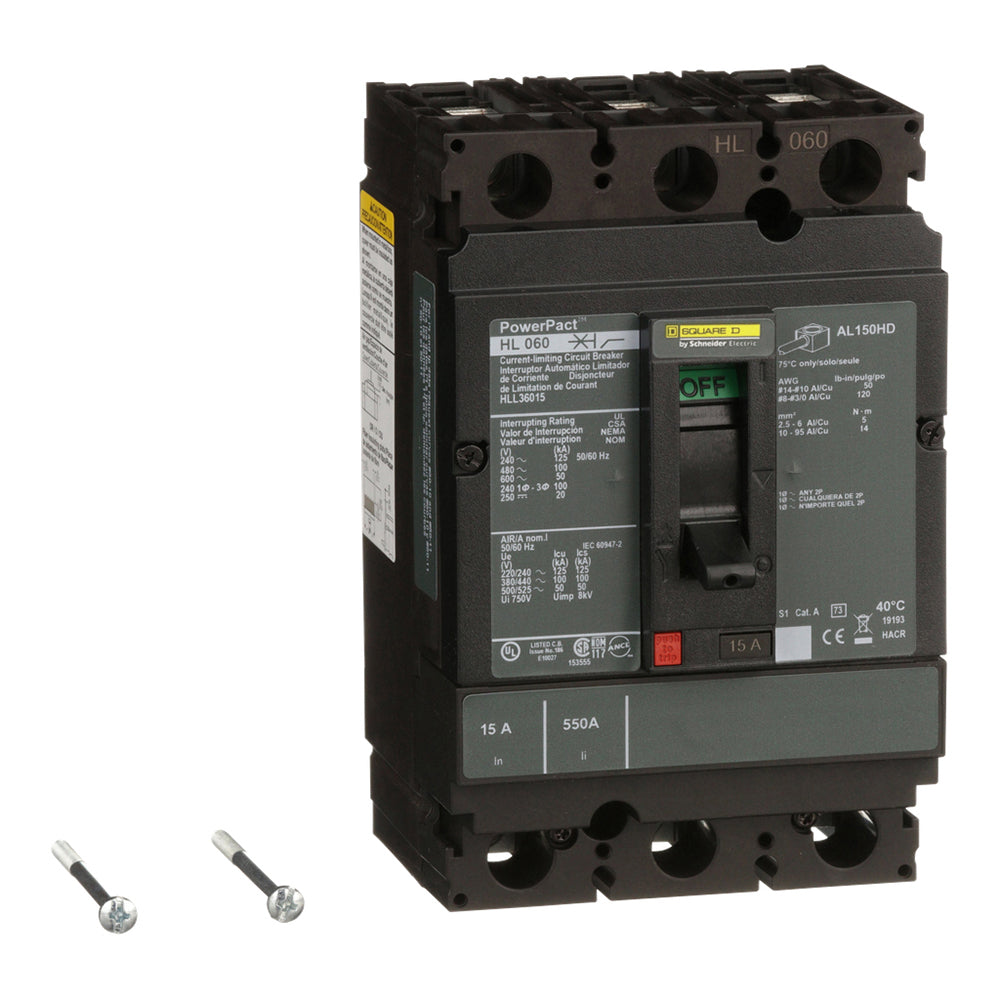

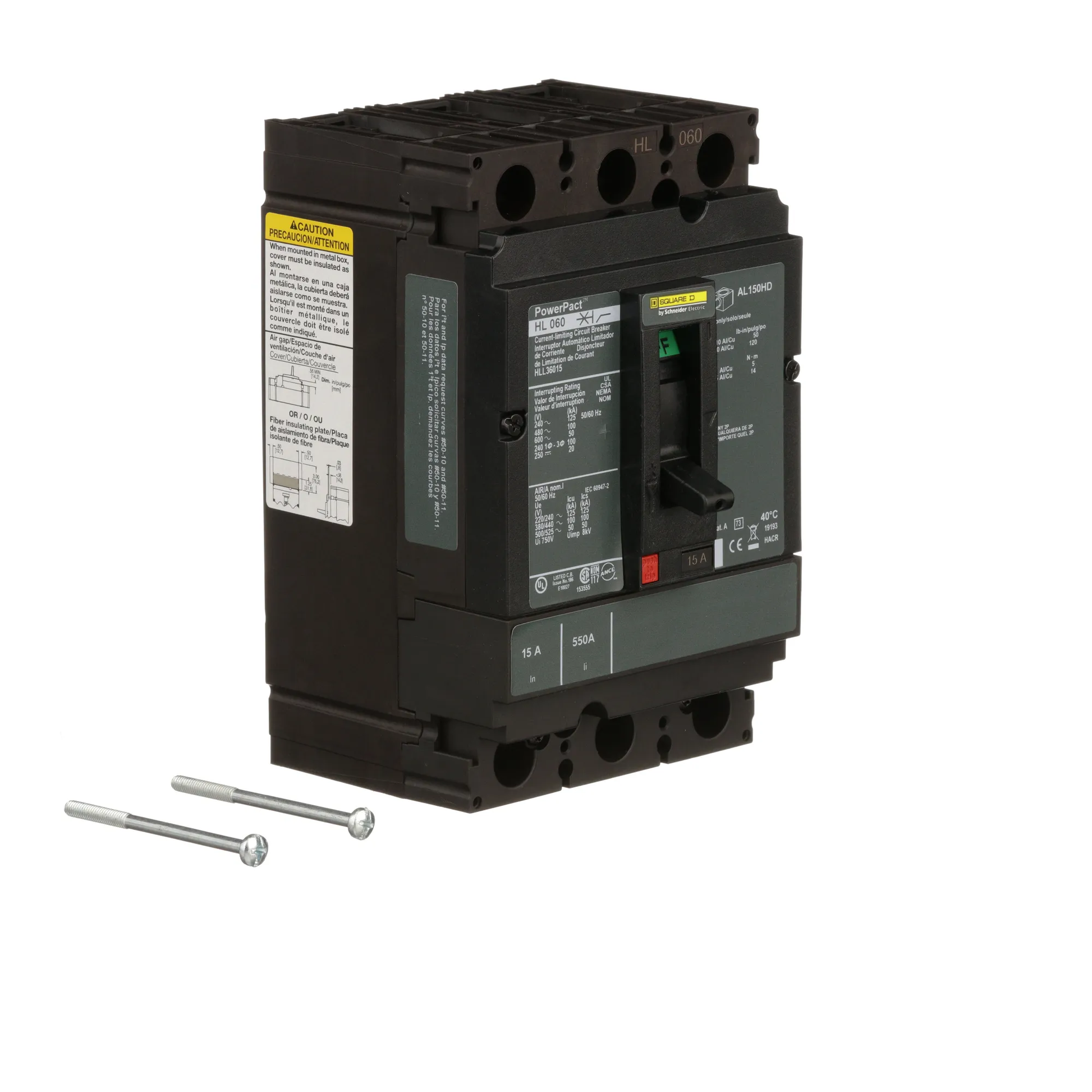

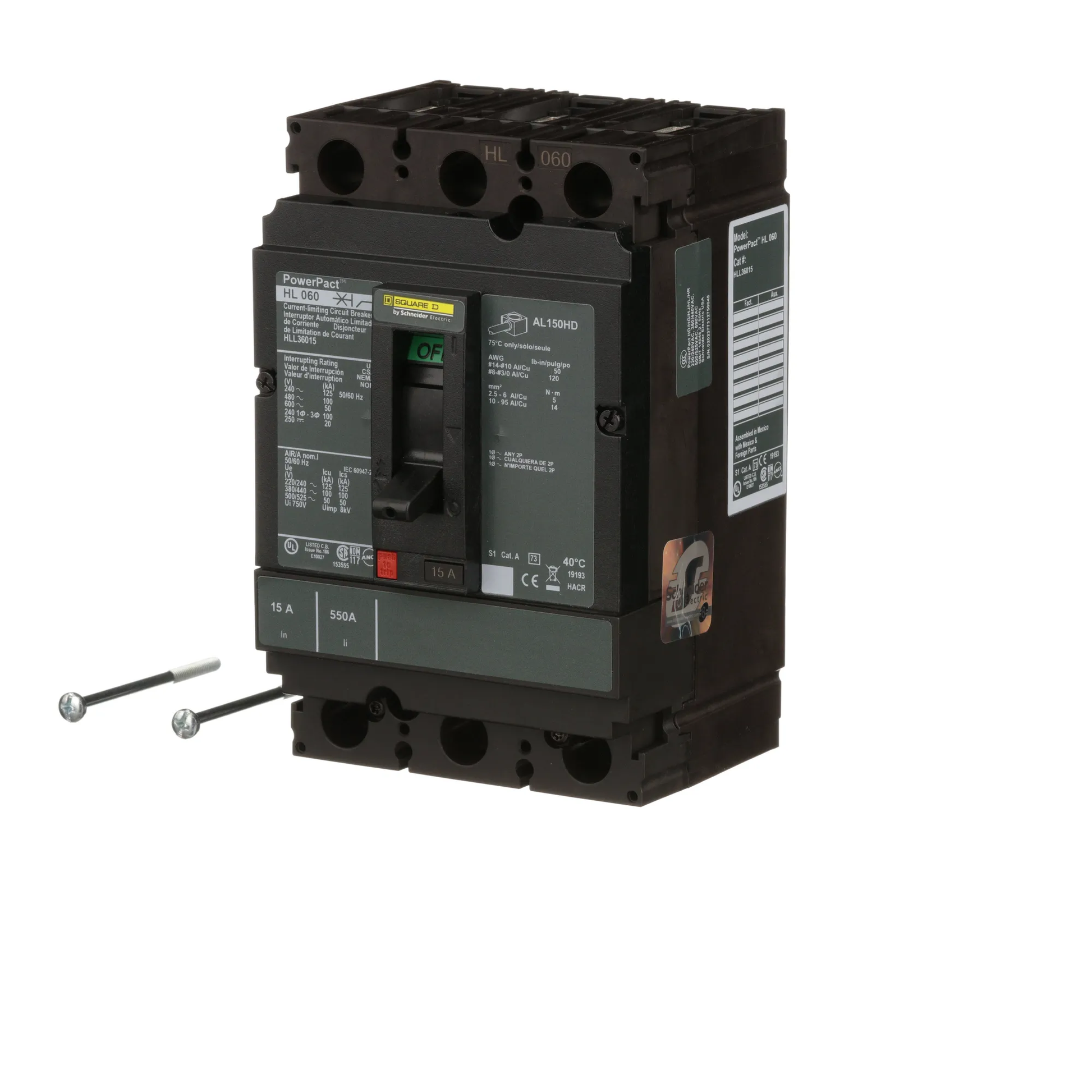

Square D HLL36015 Circuit Breaker | 600V 15A 3P 100kA@480V Feed-Thru Powerpact HLL

Product Description:
The Square D HLL36015 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 15A rating and a 100kA@480V AIC rating. This breaker uses Feed-Thru connections and offers Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: HLL36015
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HLL
✔ Voltage: 600
✔ Amperage: 15
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 100kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: H
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901598879
✔ GTIN: 00785901598879
✔ Country of Origin: Mexico

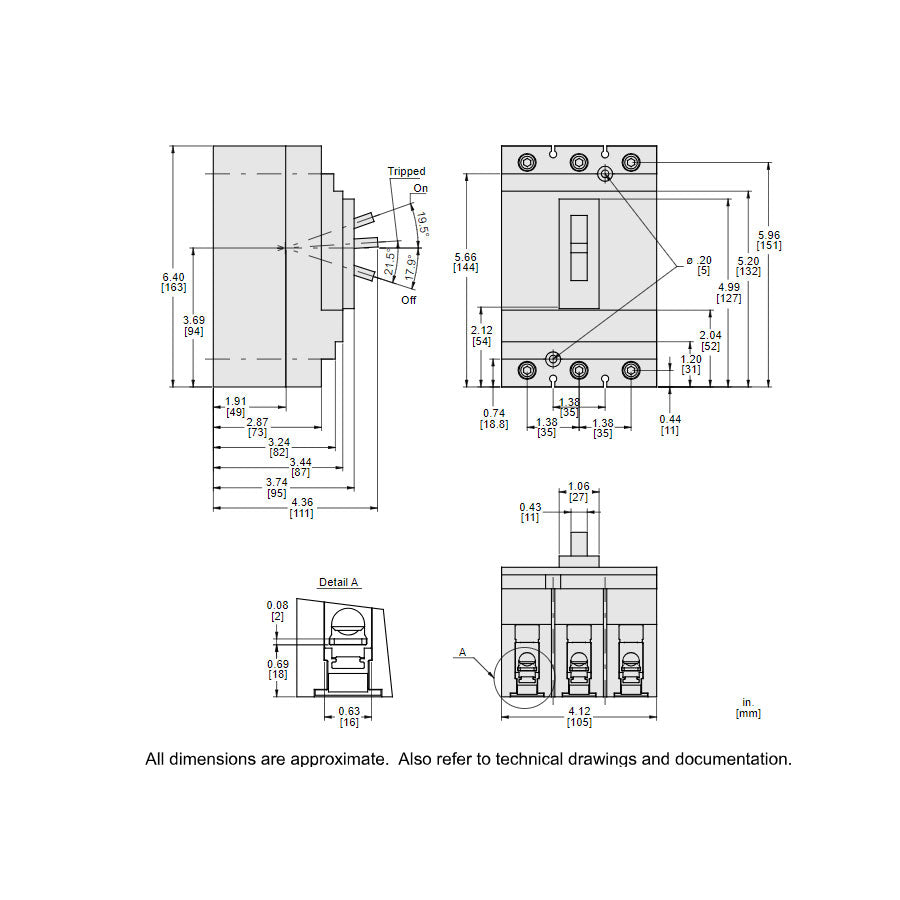

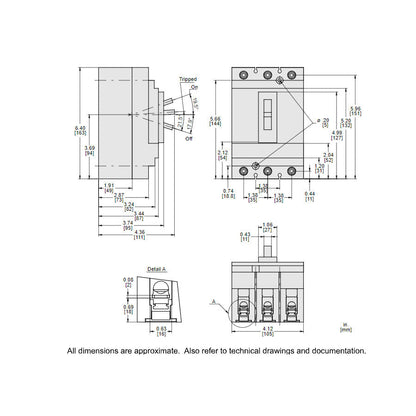

✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 1.87
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
