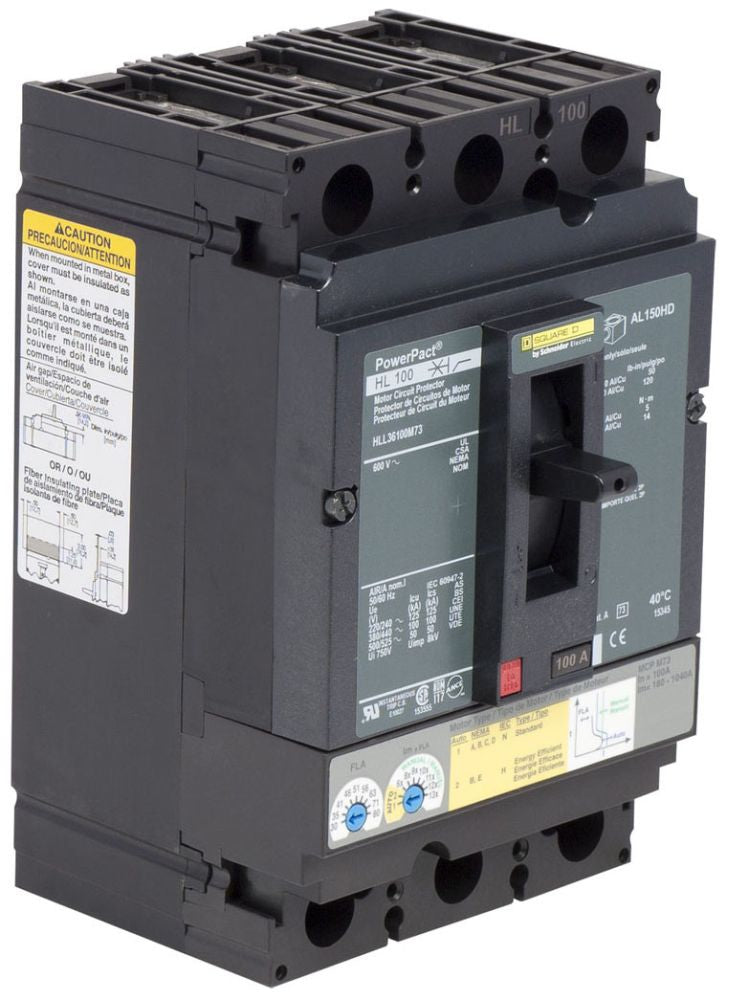

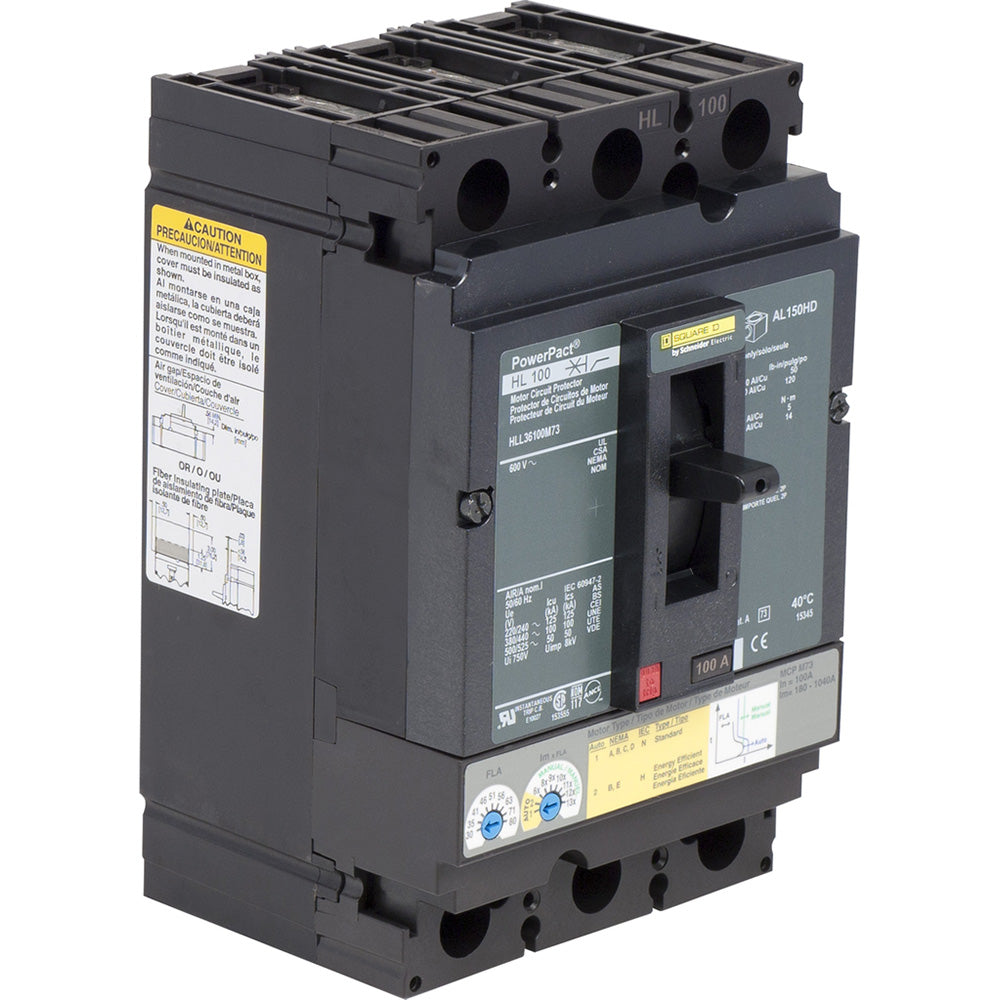

Square D HLL36100M73 Circuit Breaker | 600V 100A 3P 100kA@480V Feed-Thru Powerpact

Product Description:
The Square D HLL36100M73 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole breaker rated for 600 Volts and 100 amps, with an interrupting capacity of 100kA at 480V. This model features a Feed-Thru connection and provides Magnetic Only protection for instantaneous trip functions.

Key Features:
✔ Part Number: HLL36100M73
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HLL
✔ Voltage: 600
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 100kA@480V
✔ Connection: Feed-Thru
✔ Functions: I - Instantaneous
✔ Frame Size: H Frame
✔ Protection: Magnetic Only
✔ UPC: 785901914006
✔ GTIN: 00785901914006
✔ Country of Origin: United States
✔ Dimensions: Height 6.42 in (163 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 1.99
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
