Square D HLL36150M74 Circuit Breaker | 600V 150A 3P 100kA@480V Feed-Thru Powerpact HLL
Square D HLL36150M74 Circuit Breaker | 600V 150A 3P 100kA@480V Feed-Thru Powerpact HLL
Price:
Sale
Sold out
Regular price
$1,682.66 USD
Regular price
$2,306.00 USD
Sale price
$1,682.66 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:

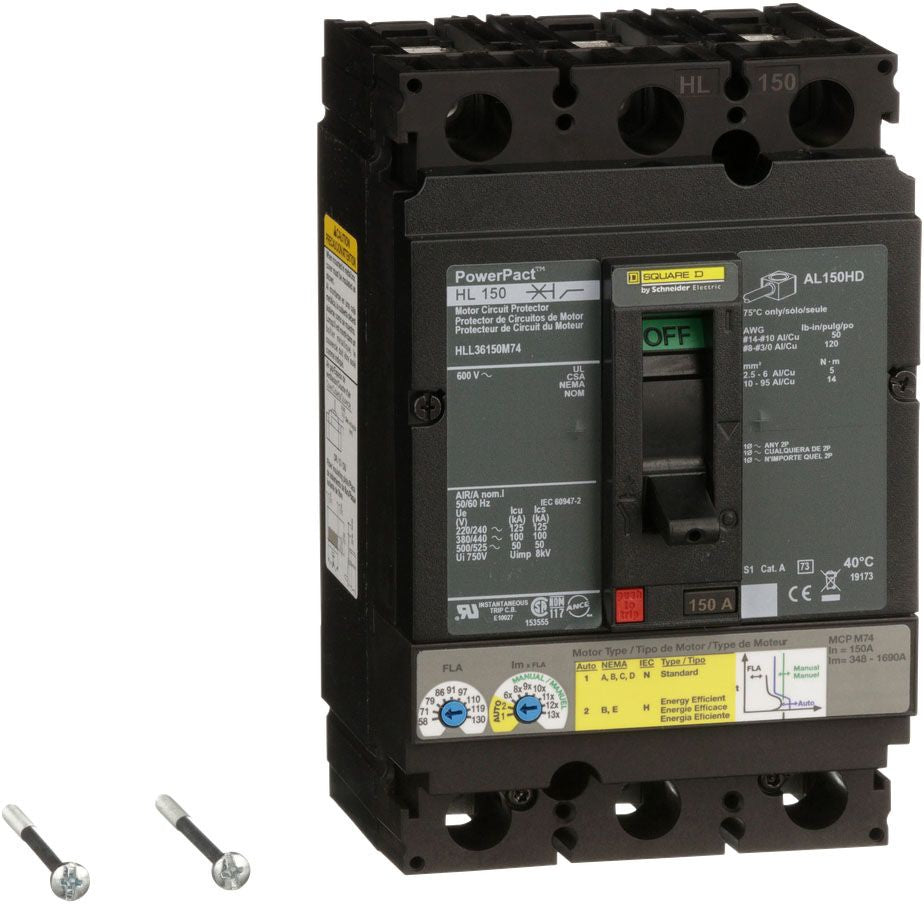

The Square D HLL36150M74 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole breaker rated for 600 Volts and 150 amps, with an AIC rating of 100kA at 480V. This model features a Feed-Thru connection and provides Magnetic Only protection for reliable circuit interruption.
Key Features:
✔ Part Number: HLL36150M74
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HLL
✔ Voltage: 600
✔ Amperage: 150
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 100kA@480V
✔ Connection: Feed-Thru
✔ Functions: I - Instantaneous
✔ Frame Size: H Frame
✔ Protection: Magnetic Only
✔ UPC: 785901835677
✔ GTIN: 00785901835677
✔ Country of Origin: Mexico
✔ Dimensions: Height 6.42 in (163 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 1.96 lb
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
