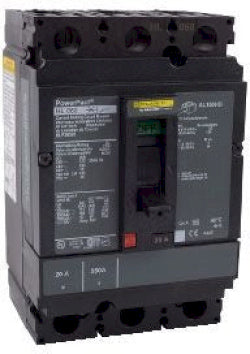

Square D HLP36100 Circuit Breaker | 600V 100A 3P 100kA@480V Bolt-On Powerpact

Product Description:
The Square D HLP36100 is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 100 amp rating with a 100kA@480V AIC rating. This breaker uses a Bolt-On connection and offers Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: HLP36100
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HLP
✔ Voltage: 600
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 100kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: H Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901835691
✔ GTIN: 00785901835691
✔ Country of Origin: United States
✔ Dimensions: Height 6.42 in (163 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 1.81
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
