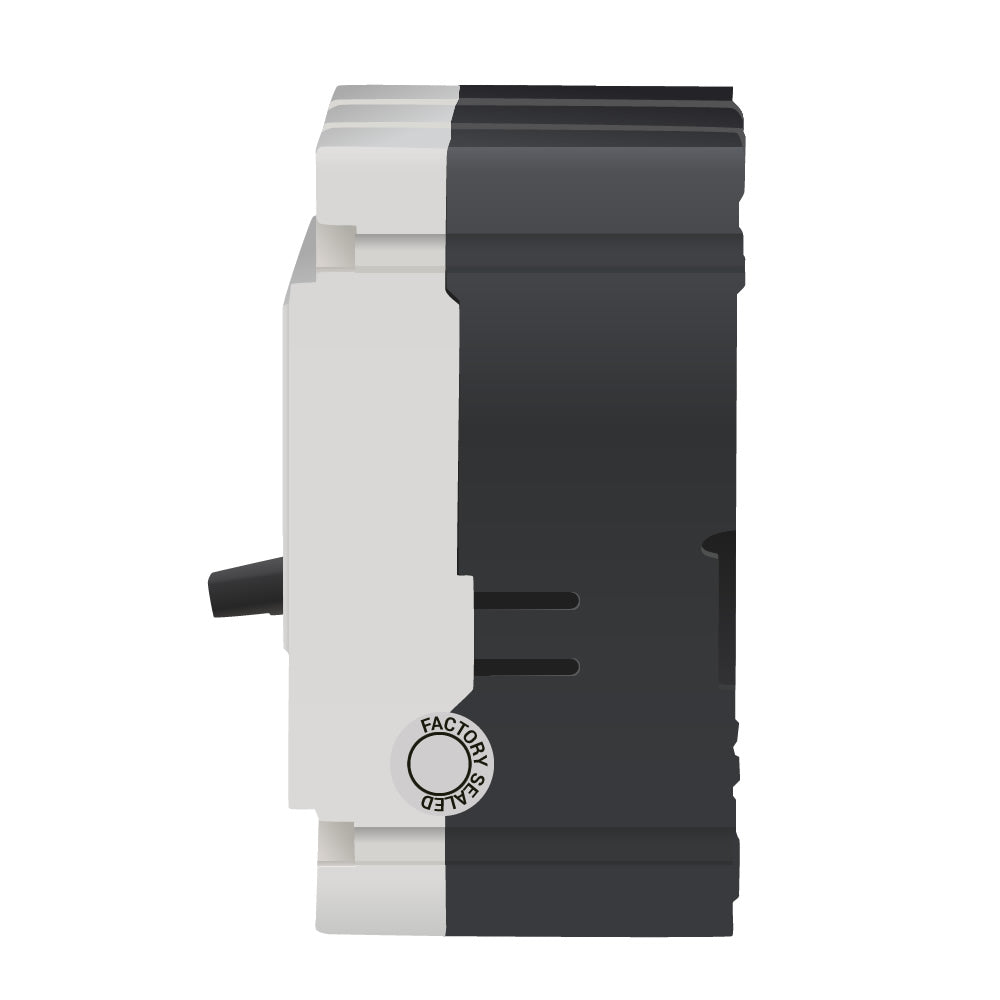

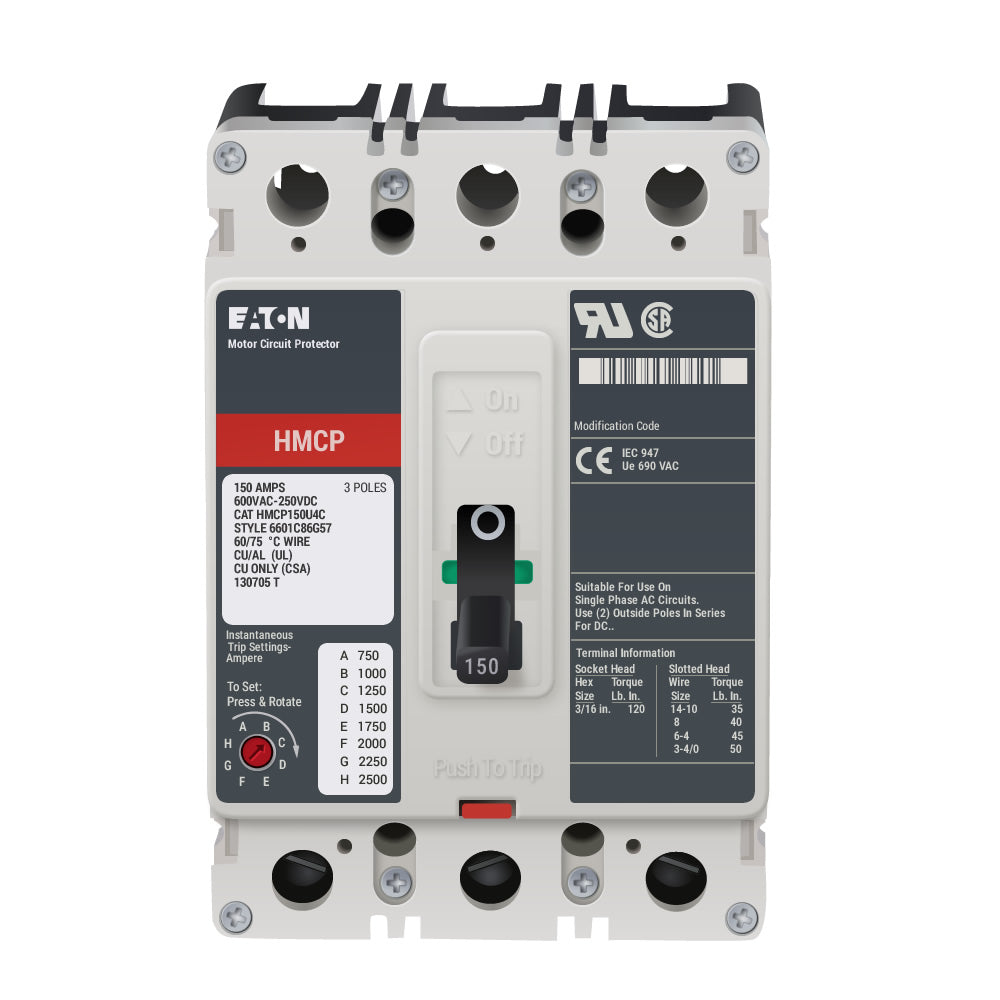

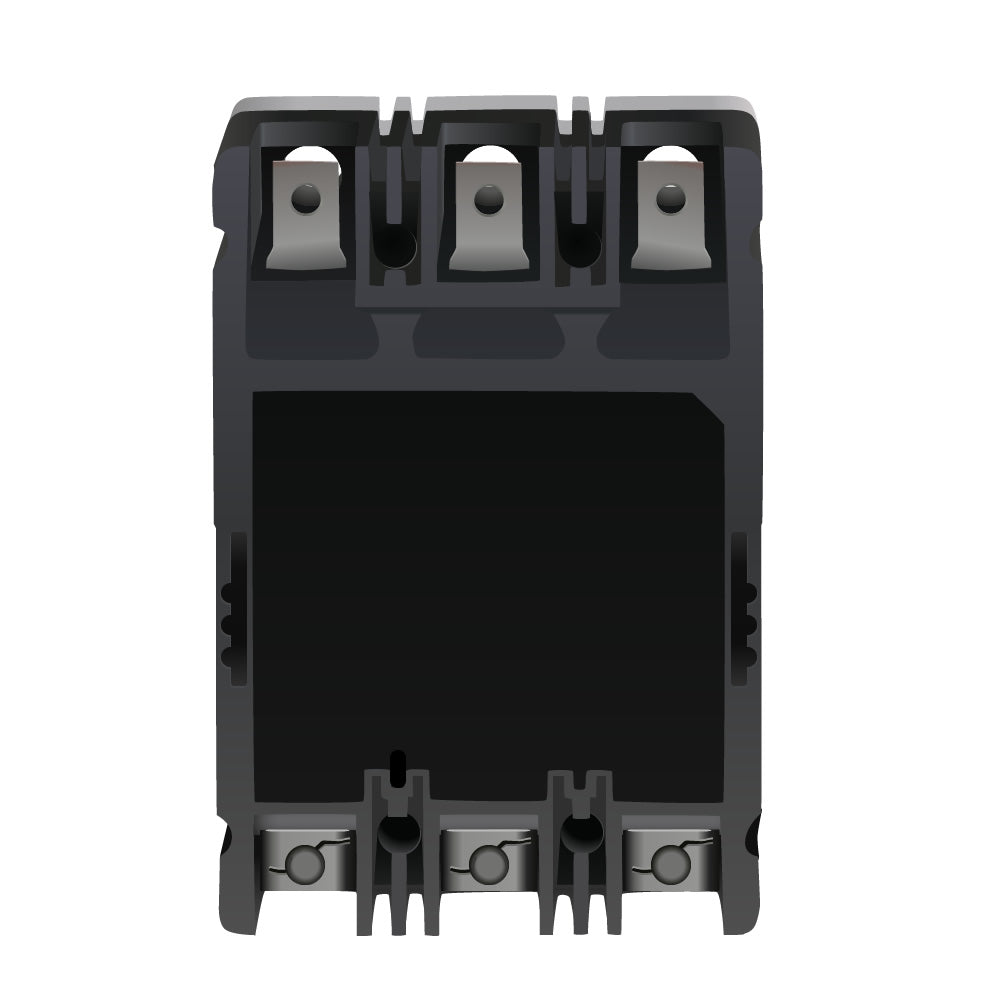

Cutler Hammer HMCP150U4C Circuit Breaker | Series C HMCP 600V 150A
Cutler Hammer HMCP150U4C Circuit Breaker | Series C HMCP 600V 150A
Price:
Sale
Sold out
Regular price
$741.84 USD
Regular price
$3,638.99 USD
Sale price
$741.84 USD
Unit price
per
Shipping calculated at checkout.
Stock:
100+ in stock
Couldn't load pickup availability
Product Description:
The Cutler Hammer HMCP150U4C is a Molded Case Circuit Breaker from the Series C family. It features a 3-pole design with a 600V rating and 150A capacity, offering 65kA@480V AIC protection. This breaker uses a bolt-on connection and provides magnetic-only protection.
Key Features:
✔ Part Number: HMCP150U4C
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: HMCP
✔ Voltage: 600V
✔ Amperage: 150A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: Bolt-On
✔ Protection: Magnetic Only
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 250A/J
✔ Wire Size: 14 AWG (Min), 1/0 AWG (Max)
✔ Certification: CSA Certified, IEC Rated, UL Listed
✔ UPC: 786679150870
✔ GTIN: 00786679150870
✔ Country of Origin: Dominican Republic
