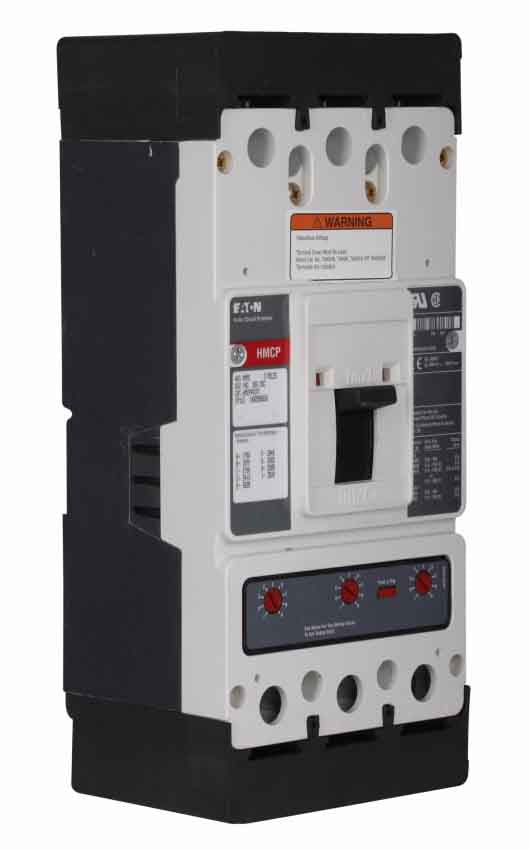

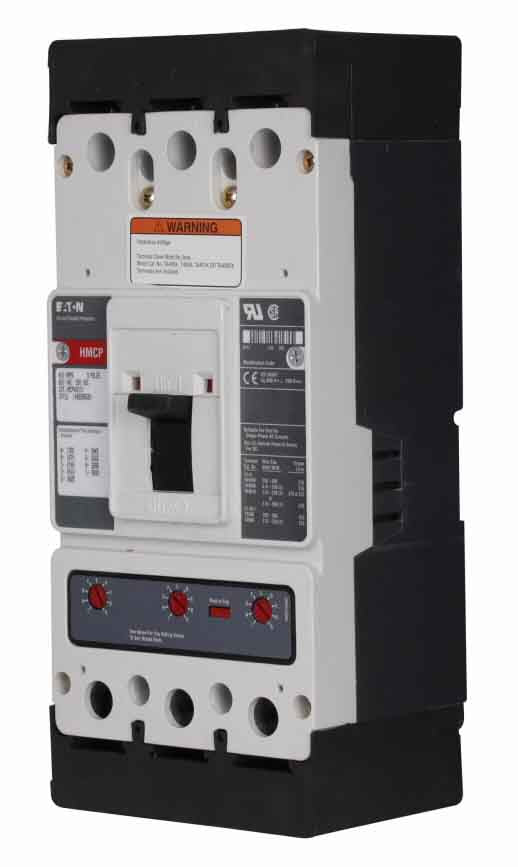

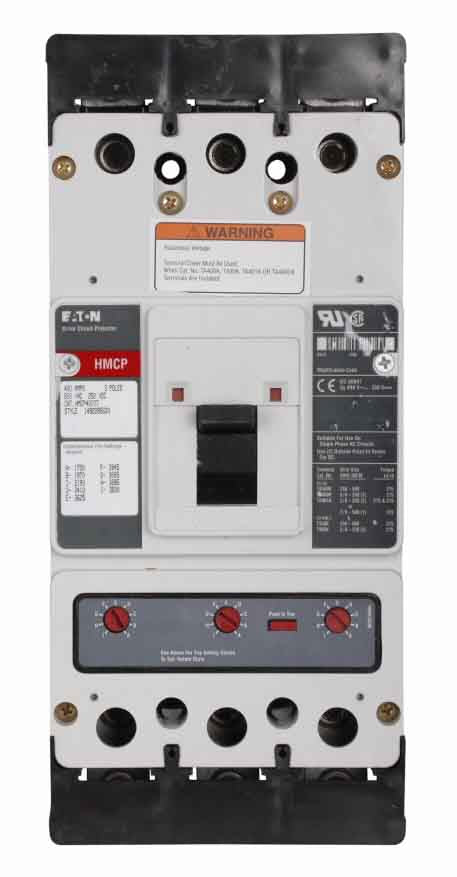

Westinghouse HMCP400L5 Circuit Breaker | Series C HMCP 600V 400A
Westinghouse HMCP400L5 Circuit Breaker | Series C HMCP 600V 400A
Price:
Sale
Sold out
Regular price
$1,914.84 USD
Regular price
$9,305.66 USD
Sale price
$1,914.84 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Cutler Hammer HMCP400L5 is a Molded Case Circuit Breaker from the Series C family. It features a 3-pole design with a 600V, 400A rating and a 35kA@480V AIC rating. This breaker uses a Feed-Thru connection and offers Magnetic Only protection. It is UL Listed and CSA Certified for safety compliance.
Key Features:
✔ Part Number: HMCP400L5
✔ Manufacturer: Westinghouse
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: HMCP
✔ Voltage: 600V
✔ Amperage: 400A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Protection: Magnetic Only
✔ Frame Size: K Frame
✔ Certification: UL Listed, CSA Certified
✔ UPC: 786679342404
✔ GTIN: 00786679342404
✔ Country of Origin: Dominican Republic
✔ Dimensions: 4.1in (L) x 10.13in (H) x 5.5in (W)
✔ Weight: 11.
The Cutler Hammer HMCP400L5 is a Molded Case Circuit Breaker from the Series C family. It features a 3-pole design with a 600V, 400A rating and a 35kA@480V AIC rating. This breaker uses a Feed-Thru connection and offers Magnetic Only protection. It is UL Listed and CSA Certified for safety compliance.
