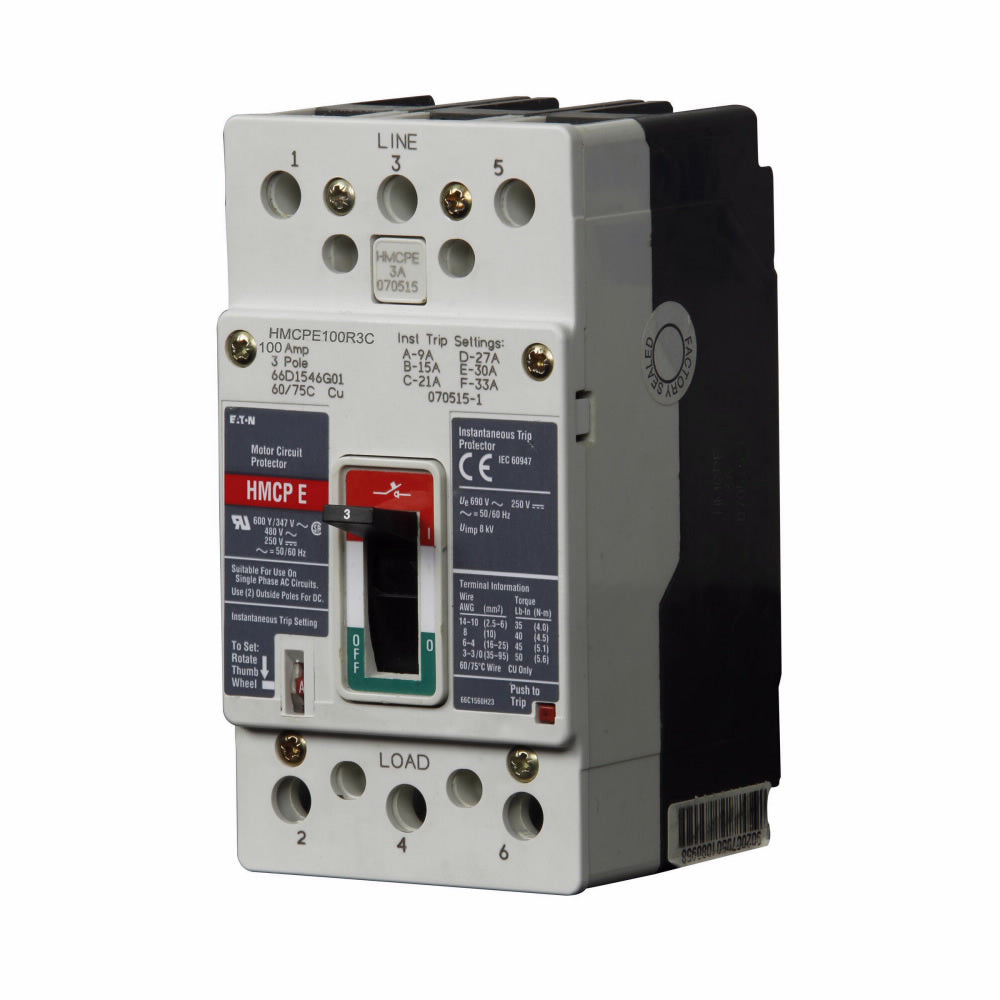

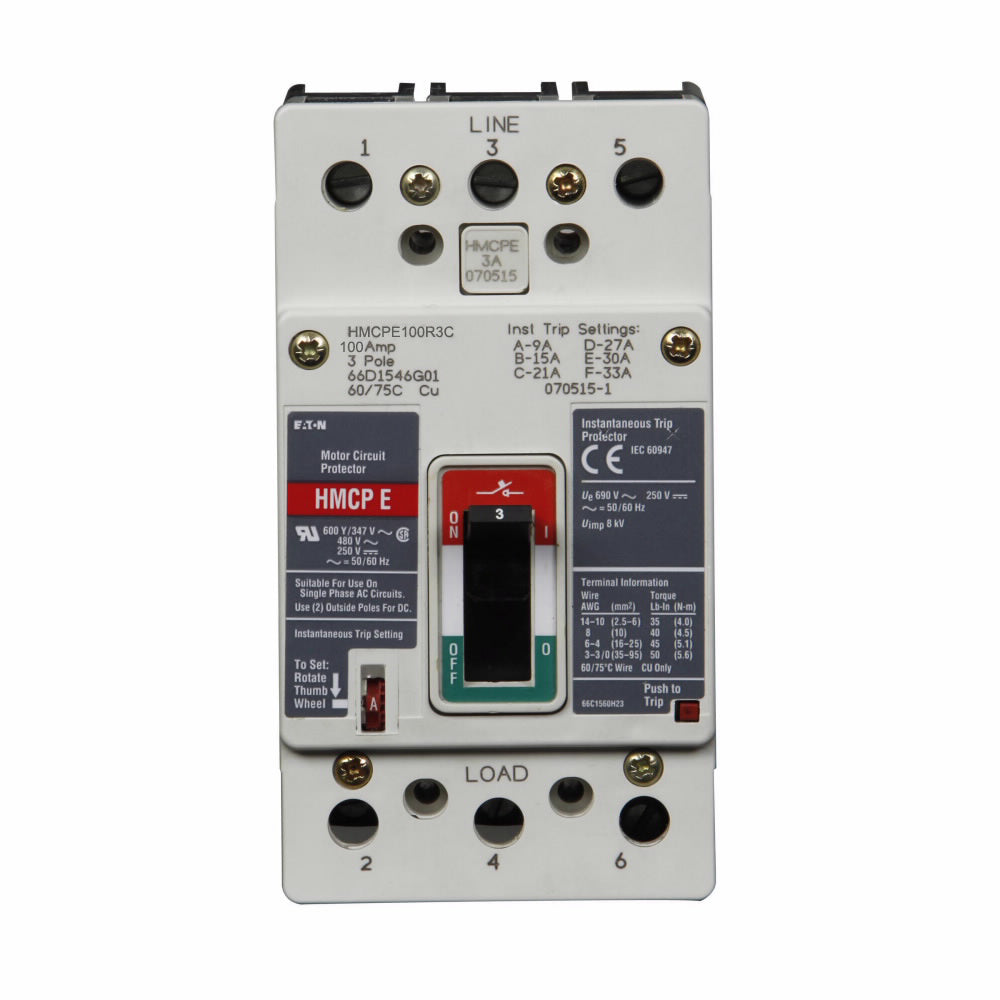

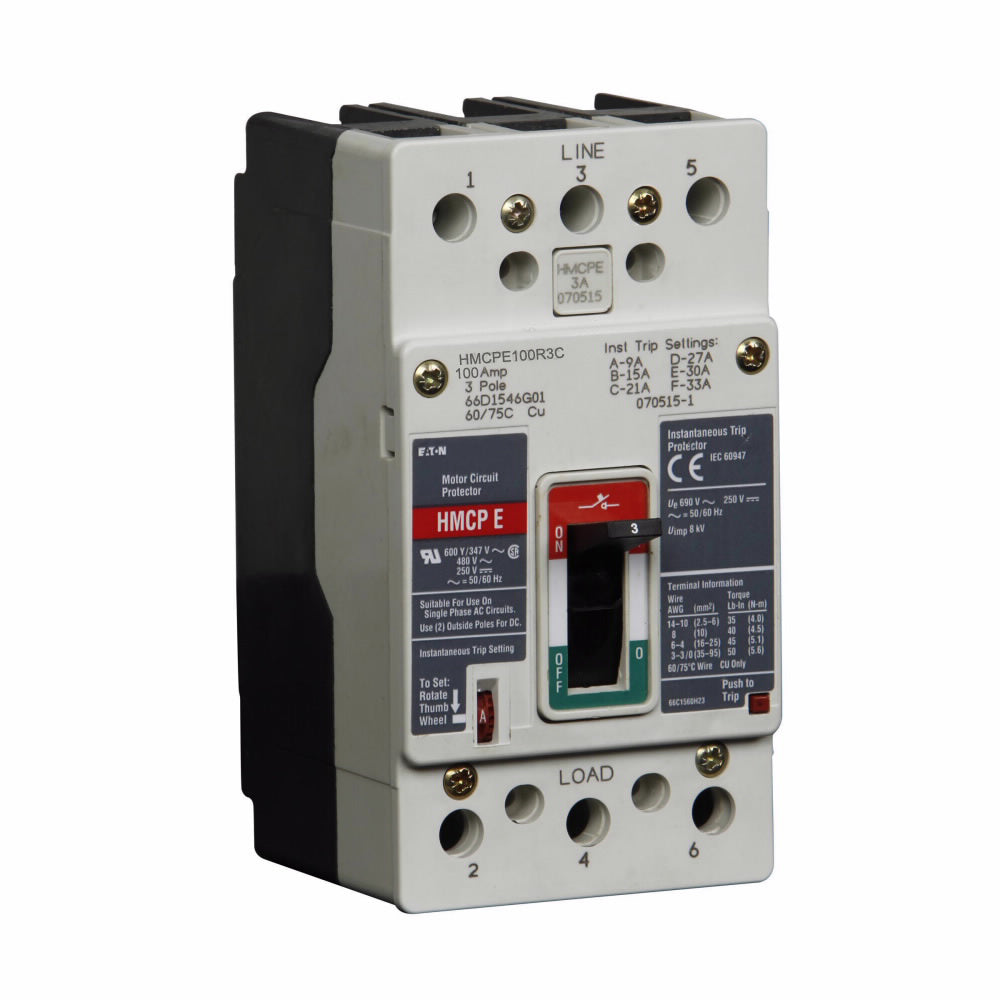

Cutler Hammer HMCPE100R3C Circuit Breaker | 480V 100A 3P 15kA@400V Feed-Thru Series G

Product Description:
The Cutler Hammer HMCPE100R3C is a Molded Case Circuit Breaker from the Series G family. It features a 3-pole design with a 480V voltage rating and 100A amperage capacity. This breaker has a 15kA@400V AIC rating and uses a Feed-Thru connection. It provides Magnetic Only protection for reliable circuit safety.

Key Features:
✔ Part Number: HMCPE100R3C
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series G
✔ Type: HMCPE
✔ Voltage: 480
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 15kA@400V
✔ Connection: Feed-Thru
✔ Protection: Magnetic Only
✔ UPC: 786679113691
✔ GTIN: 00786679113691
✔ Country of Origin: Dominican Republic
✔ Dimensions: 3 in x 5.5 in
✔ Weight: 3
✔ Certification: CSA Certified, IEC Rated, UL Listed
