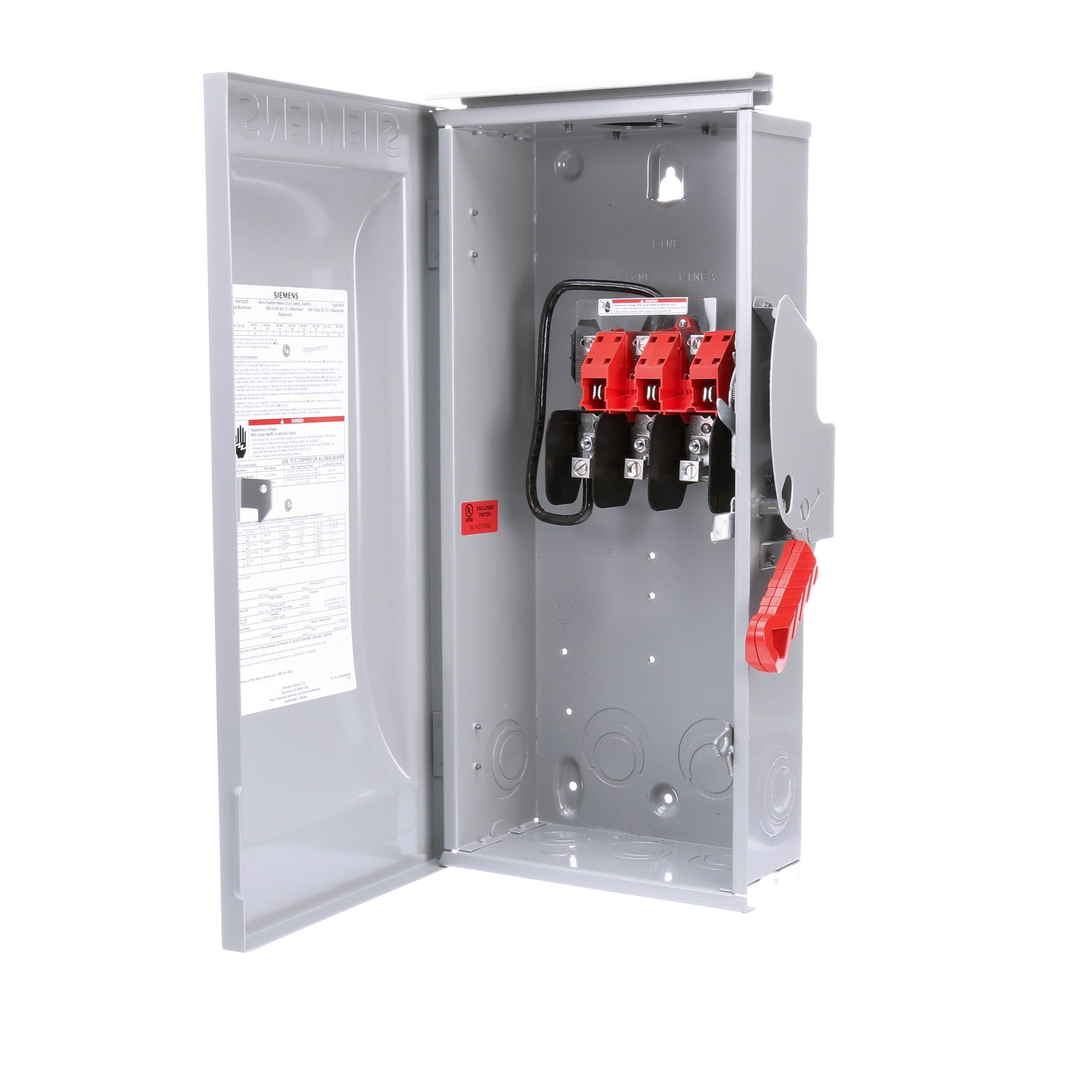

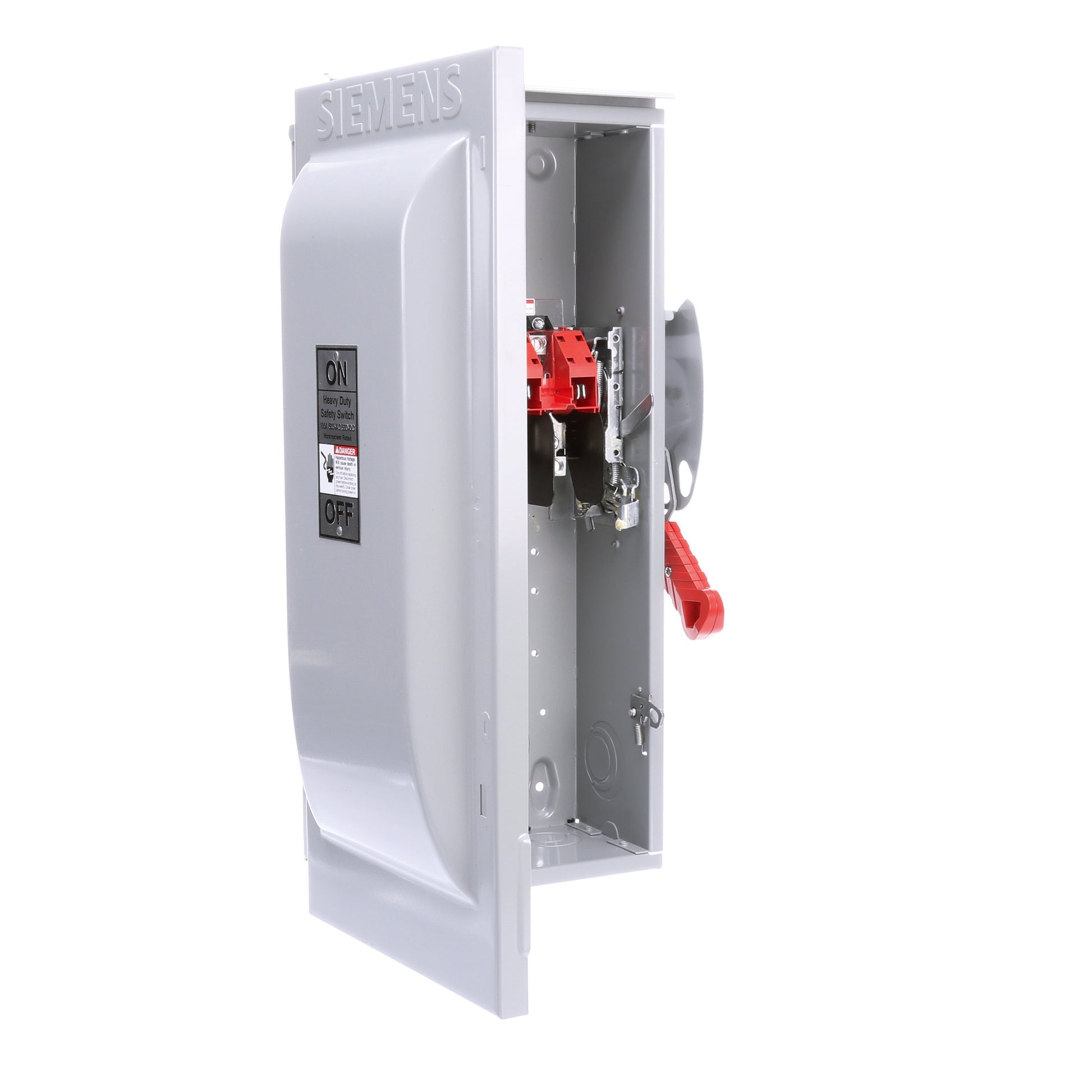

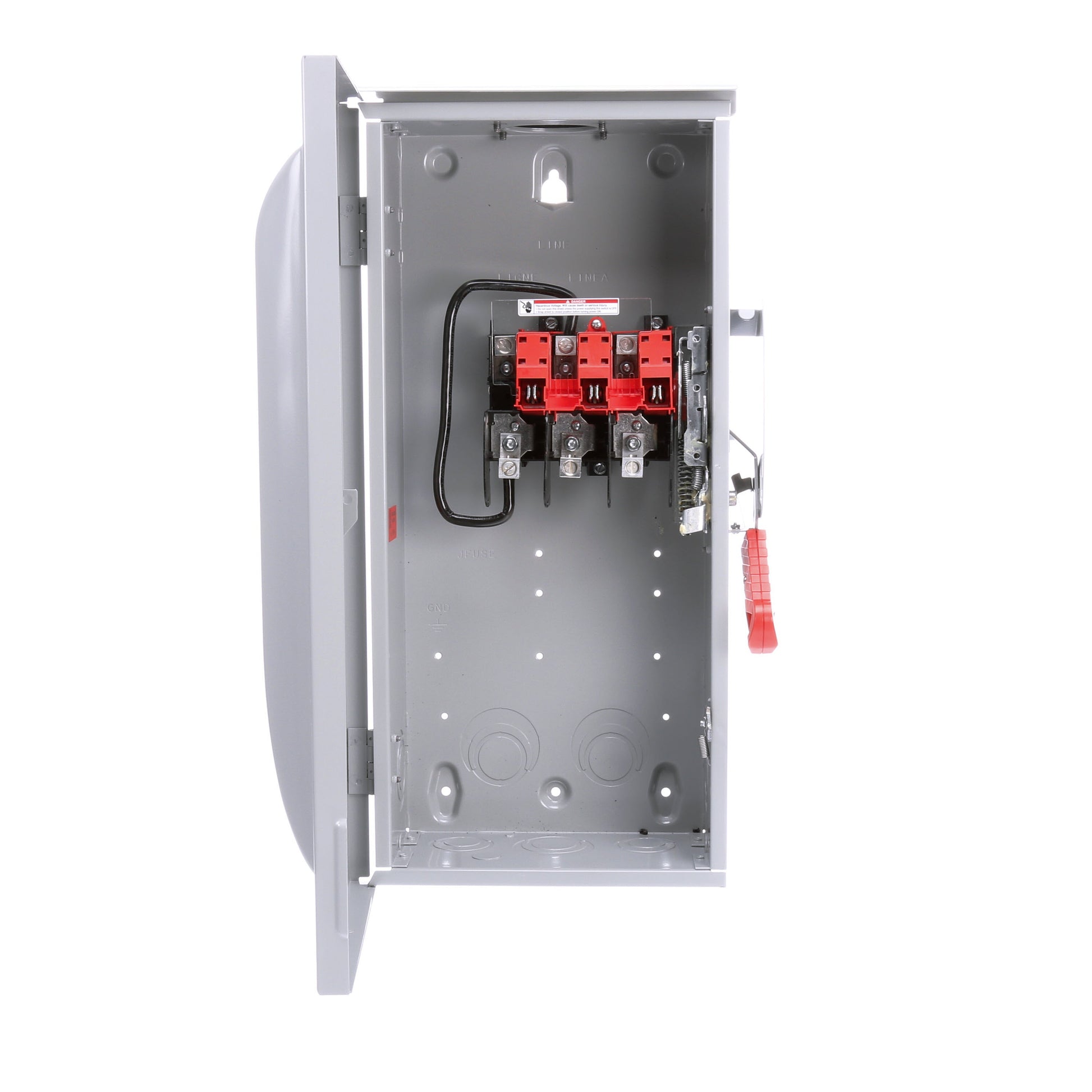

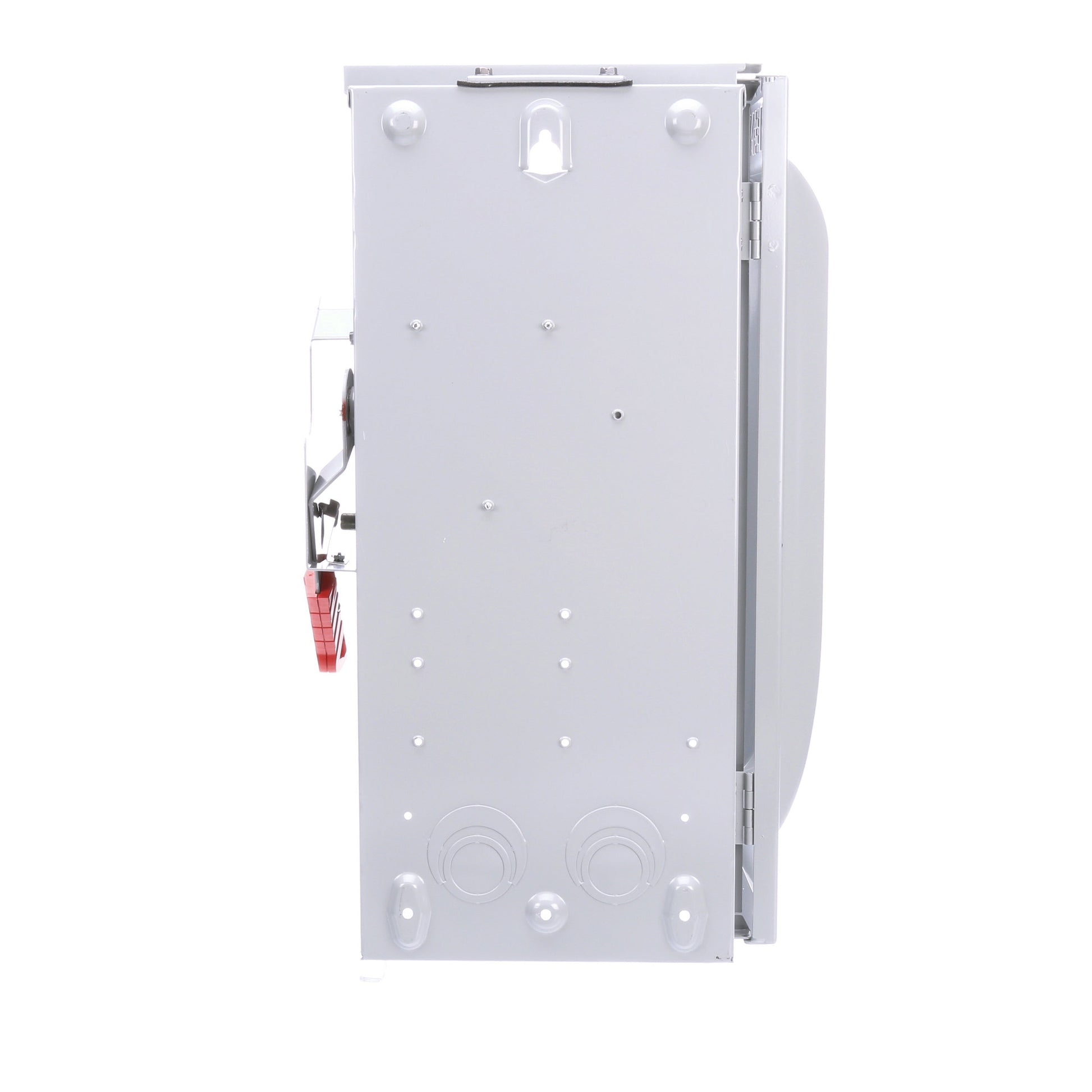

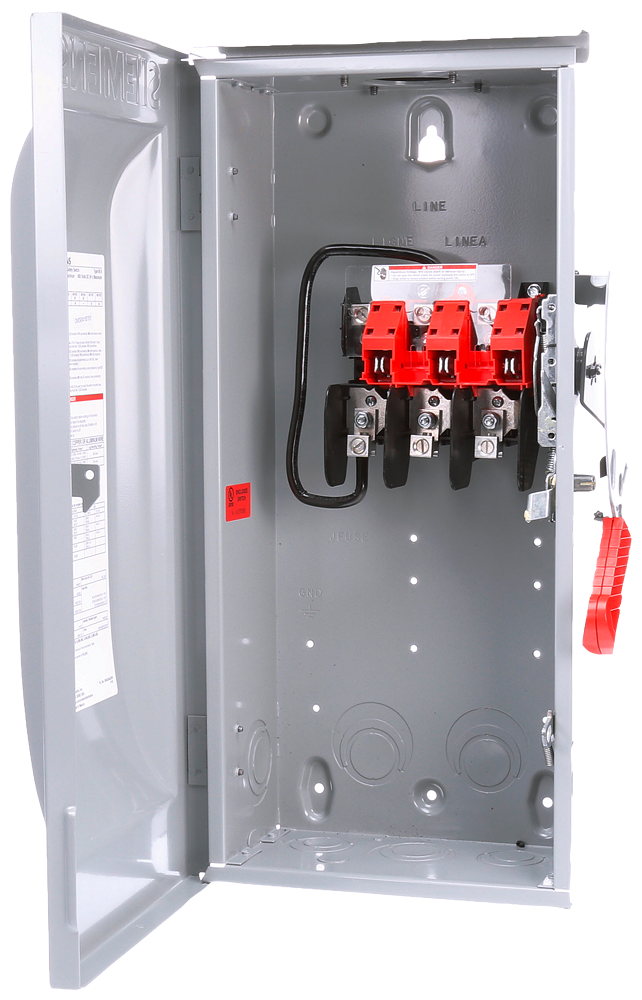

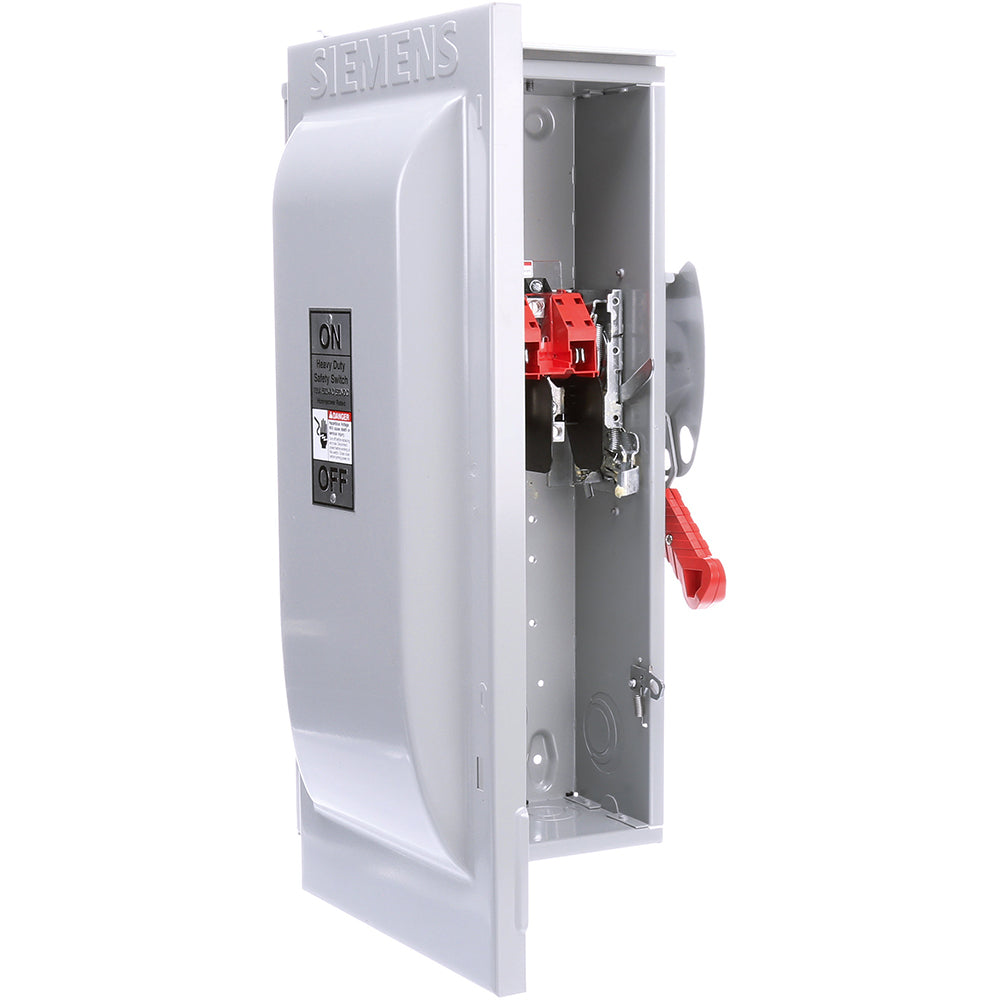

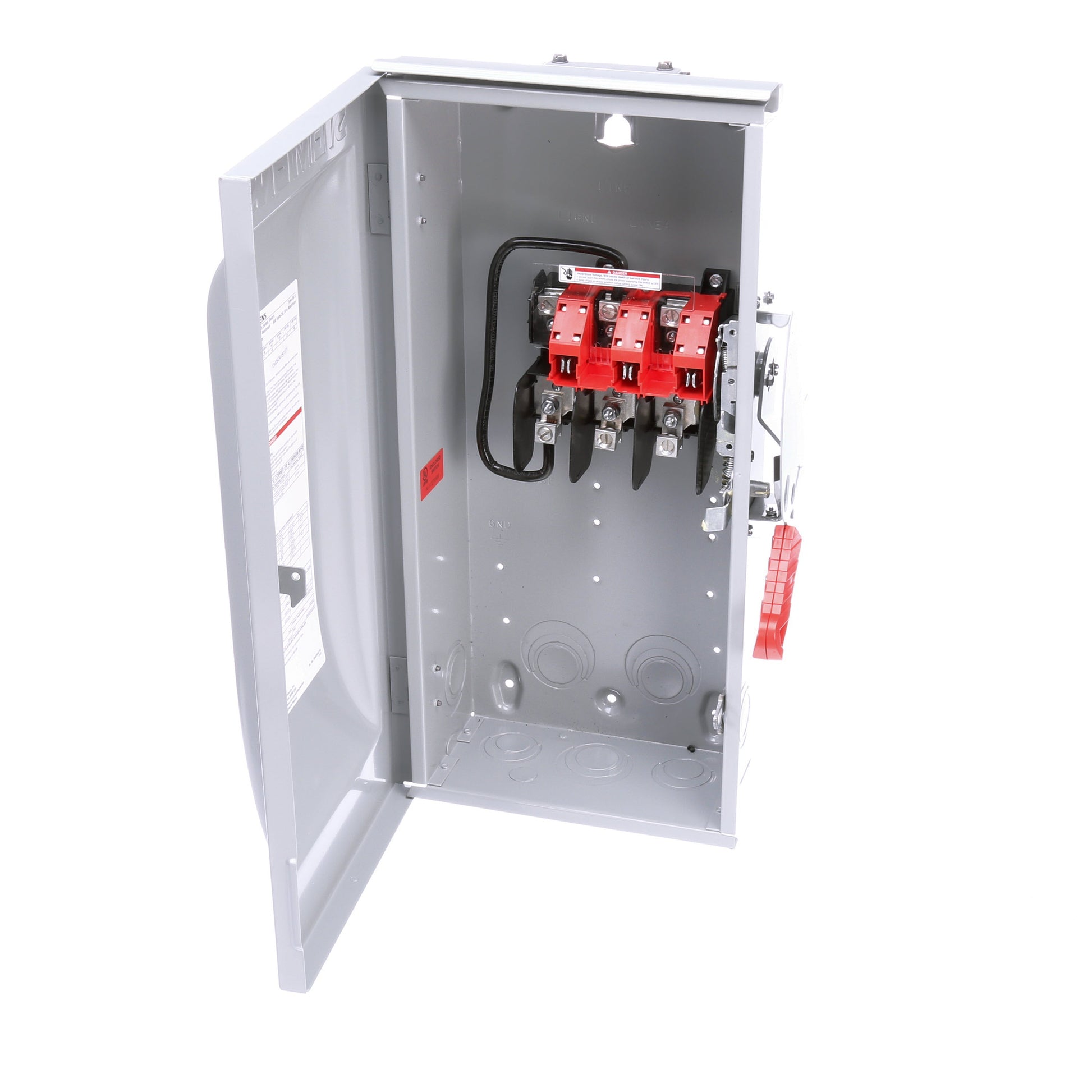

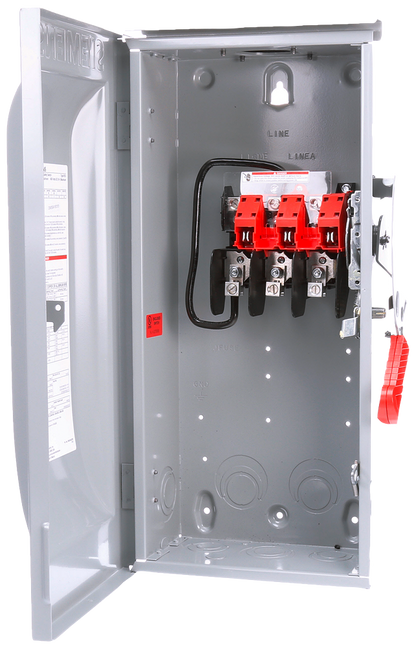

Siemens HNF263R Disconnect Switch 600VAC 100A VBII Series

Product Description:
The Siemens HNF263R is a heavy-duty fused disconnect switch designed for industrial and commercial electrical systems.
It operates at 600V AC with a 100A capacity and features a NEMA 3R rating for outdoor use and corrosion resistance.
This 1-phase, 2-pole switch offers reliable circuit protection with an interrupting rating of 200kA at 600V.
Its single-switch configuration ensures straightforward installation and operation in various applications.

Key Features:
✔ Part Number: HNF263R
✔ Manufacturer: Siemens
✔ Category: Switch
✔ Subcategory: Disconnect
✔ Family: VBII Series
✔ Type: HNF
✔ Voltage: 600 AC
✔ Amperage: 100
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 200kA@600V
✔ Configuration: Single
✔ NEMA Rating: NEMA 3R
✔ Switch Type: Heavy Duty
✔ Compatible Frames: PGP
✔ Shipping Dimensions: 13.78 x 25.984 x 6.693
✔ UPC: 783643174085
✔ GTIN: 00783643174085
✔ Country of Origin: Mexico
✔ Dimensions: 12.0 in x 23.1 in
✔ Weight: 35 lb
✔ Certification: UL listed
