Square D HOM115CAFI Circuit Breaker | 120V 15A 1P 10kA@120V Plug-In HOMELINE

Product Description:

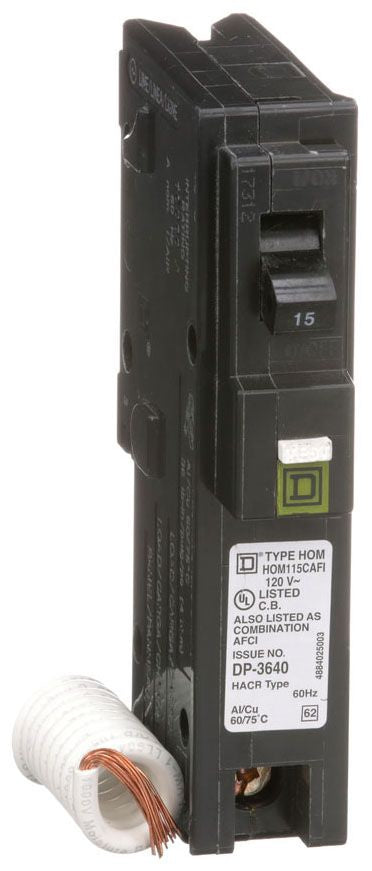

The Square D HOM115CAFI is a Molded Case Circuit Breaker from the HOMELINE family. It is a 1 pole, 120 Volt, 15 amp rated breaker with a 10kA@120V AIC rating and Plug-In connection. This model includes Thermal Magnetic protection and is designed for use in Homeline Load Centers.

Key Features:
✔ Part Number: HOM115CAFI
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: HOMELINE
✔ Type: HOM
✔ Voltage: 120
✔ Amperage: 15
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp
✔ Frame Size: 100A/HOM
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 8 AWG
✔ Breaker Type: Combination Arc Fault Circuit Interrupter
✔ Protection: Thermal Magnetic
✔ UPC: 785901439721
✔ GTIN: 00785901439721
✔ Country of Origin: Mexico
✔ Dimensions: 4.09 in x 3.13 in x 6.42 in
✔ Weight: 0.65 lb
✔ Panel Type: Homeline Load Center
✔ Standards: CSA Certified, HACR, UL Listed
✔ Certification: CSA Certified, HACR, UL Listed
