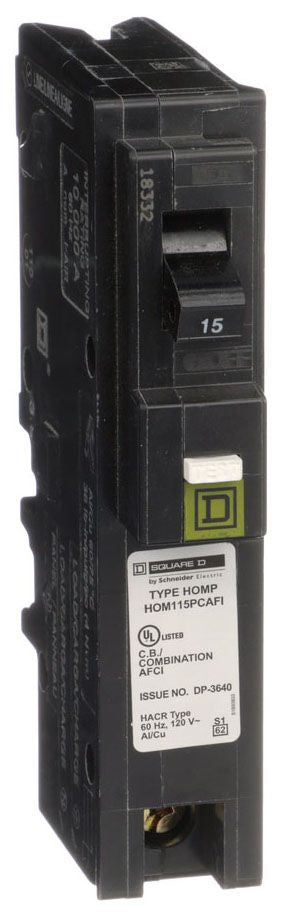

Square D HOM115PCAFI Circuit Breaker | 120V 15A 1P 10kA@120V Plug-In HOMELINE

Product Description:
The Square D HOM115PCAFI is a Molded Case Circuit Breaker from the HOMELINE family. It features a 1 pole, 120 Volt, 15 amp rating with a 10kA@120V AIC rating. This breaker uses a Plug-In connection and includes Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: HOM115PCAFI
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: HOMELINE
✔ Type: HOM
✔ Voltage: 120
✔ Amperage: 15
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp Terminals
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al), 14 AWG (Cu) Max. Wire Size 8 AWG (Cu/Al), 10 AWG (Cu)
✔ Breaker Type: Combination Arc-Fault
✔ Protection: Thermal Magnetic
✔ UPC: 785901950806
✔ GTIN: 00785901950806
✔ Country of Origin: Mexico
✔ Dimensions: 1 in x 3.13 in
✔ Weight: 1 lb
✔ Standards: UL Listed
✔ Certification: UL Listed
