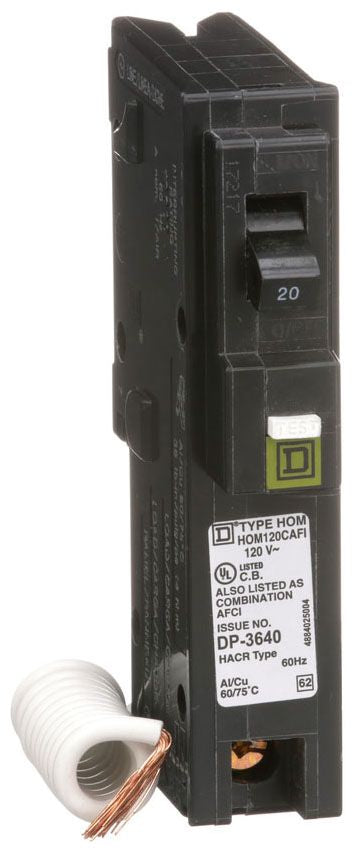

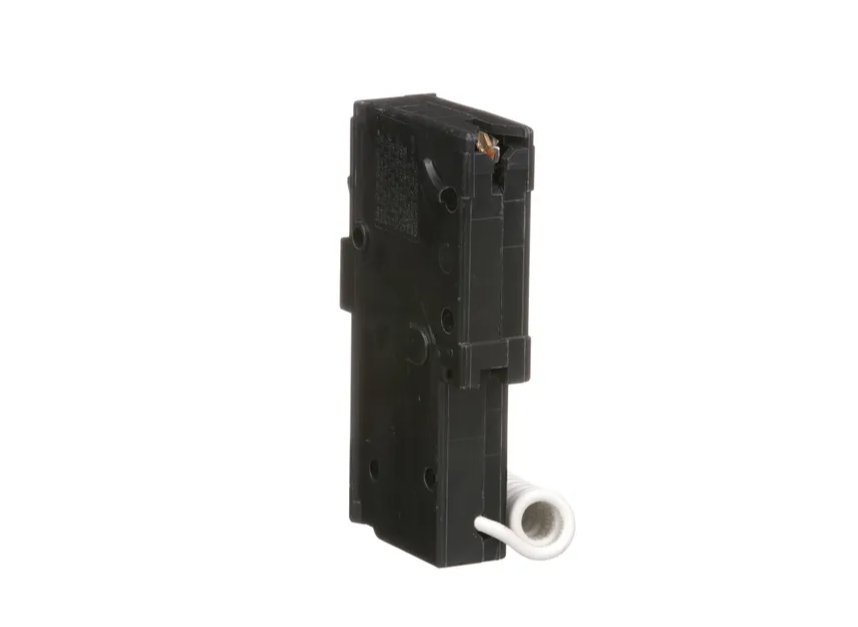

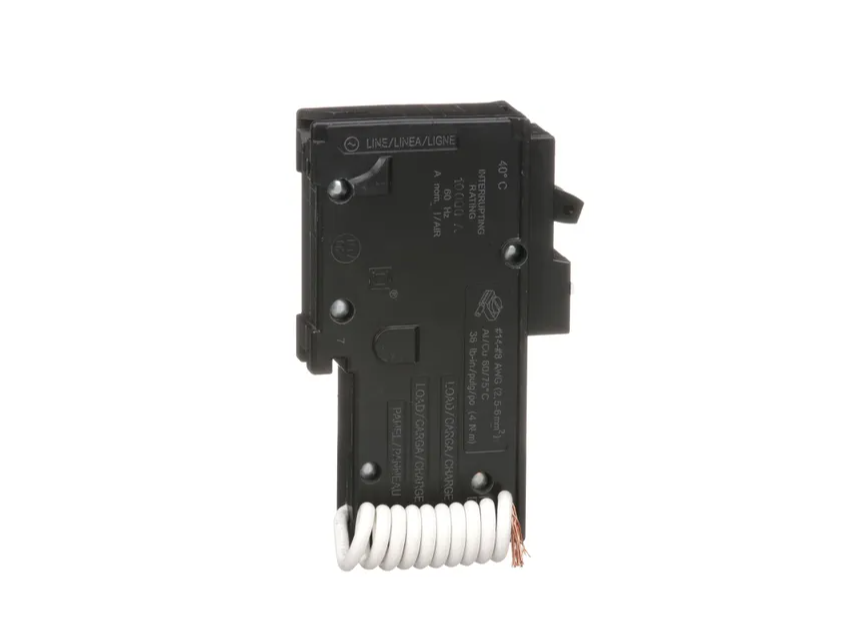

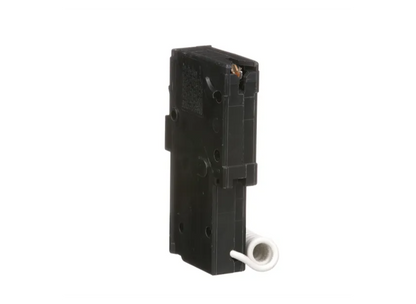

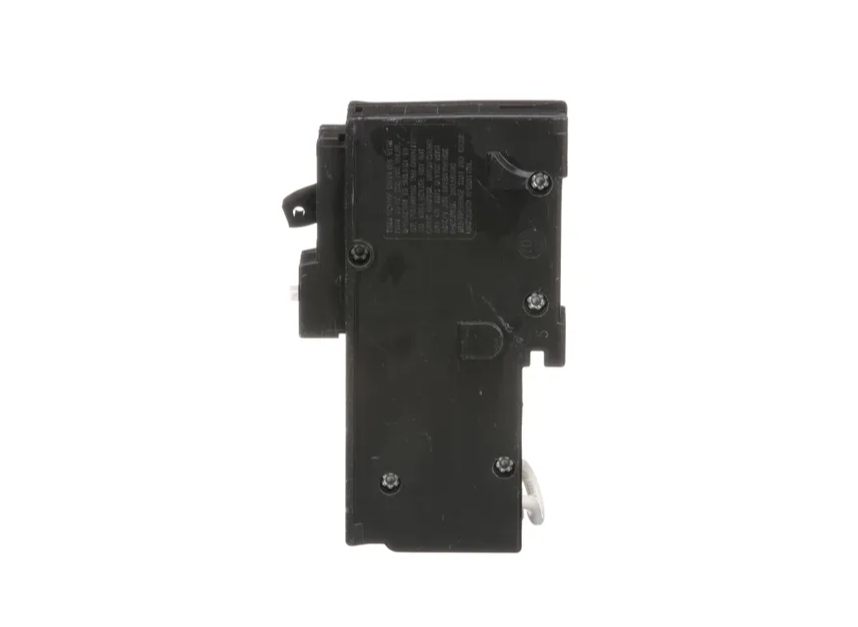

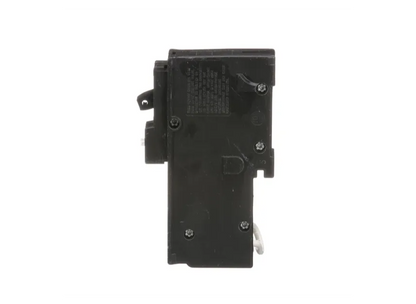

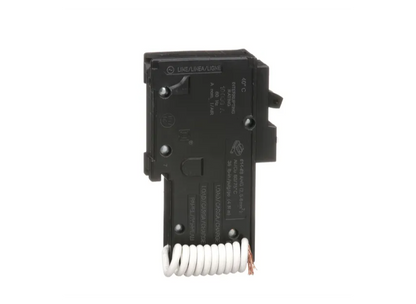

Square D HOM120CAFI Circuit Breaker 120V 20A 1P 10kA@120V Plug-In HOMELINE

Product Description:
The Square D HOM120CAFI is a Molded Case Circuit Breaker from the HOMELINE family. It is a 1 pole, 20 amp breaker rated for 120 volts with a 10kA interrupting capacity. This model features Plug-In connection and Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: HOM120CAFI
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: HOMELINE
✔ Type: HOM
✔ Voltage: 120
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp
✔ Frame Size: 100A/HOM
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 8 AWG
✔ Breaker Type: Combination Arc Fault Circuit Interrupter
✔ Protection: Thermal Magnetic
✔ UPC: 785901601517
✔ GTIN: 00785901601517
✔ Country of Origin: Mexico

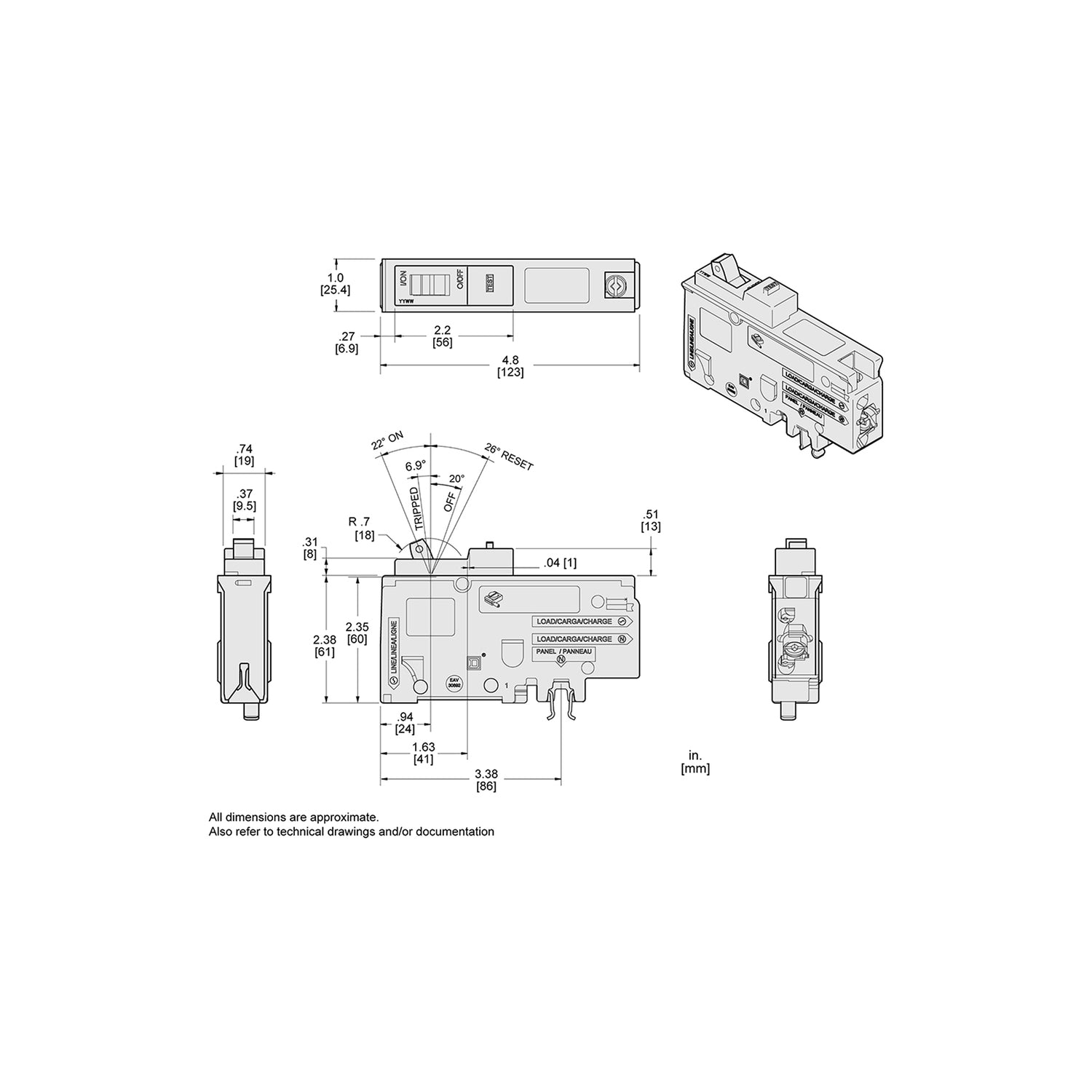

✔ Dimensions: 1 in x 3.13 in x 3.13 in
✔ Weight: 0.64
✔ Panel Type: Homeline Load Center
✔ Standards: CSA Certified, HACR, UL Listed
✔ Certification: CSA Certified, HACR, UL Listed
