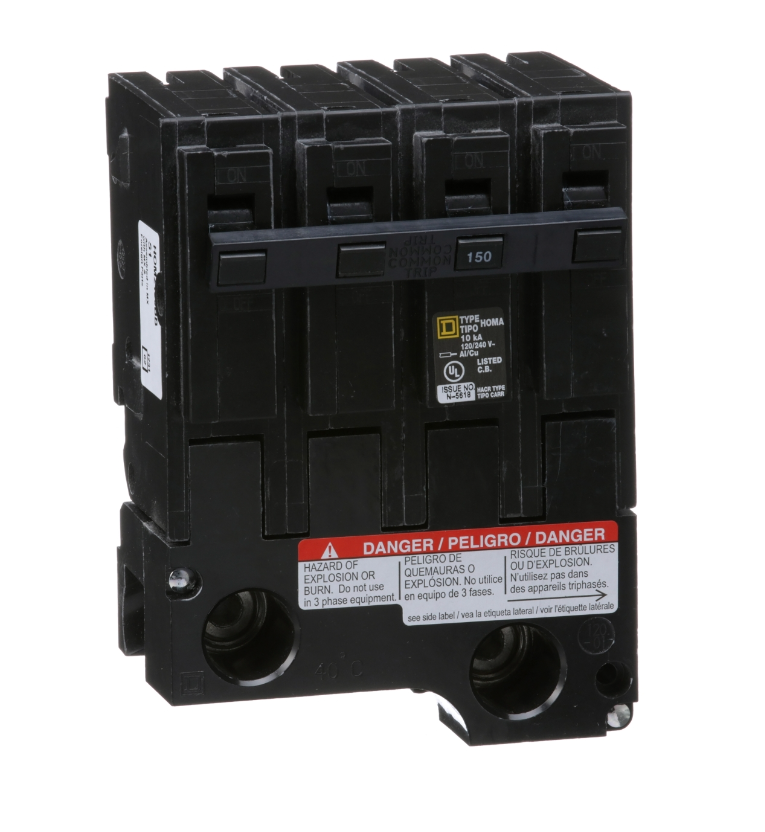

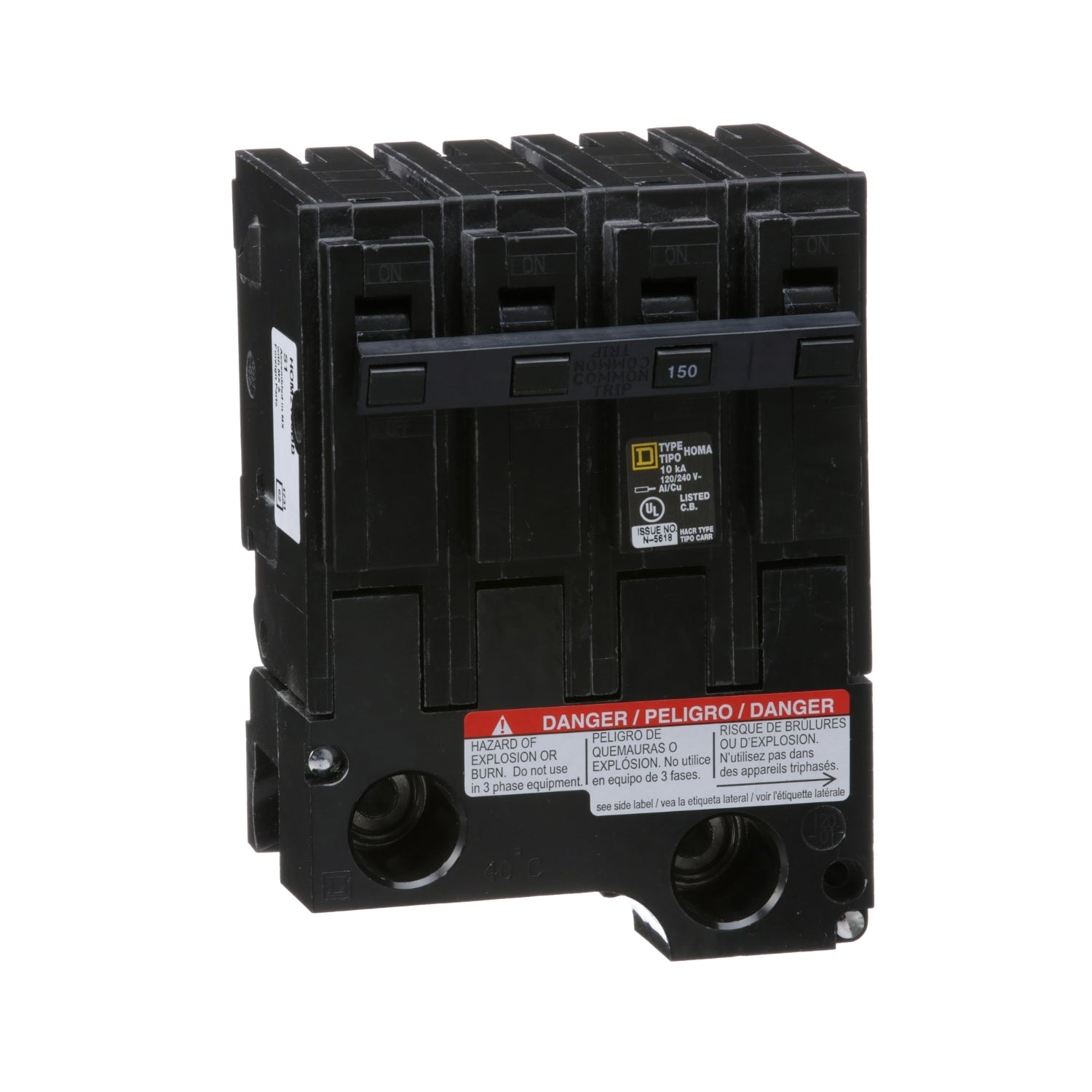

Square D HOM2150BB Circuit Breaker | 240V 150A 2P 10kA@240V Plug-In HOMELINE
Square D HOM2150BB Circuit Breaker | 240V 150A 2P 10kA@240V Plug-In HOMELINE
Price:
Sale
Sold out
Regular price
$308.84 USD
Regular price
$428.00 USD
Sale price
$308.84 USD
Unit price
per
Shipping calculated at checkout.
Stock:
100+ in stock
Couldn't load pickup availability
Product Description:
The Square D HOM2150BB is a Molded Case Circuit Breaker from the HOMELINE family. It features a 2-pole design with a 240V, 150A rating and a 10kA@240V AIC rating. This breaker uses a plug-in connection and offers thermal magnetic protection for reliable performance.
Key Features:
✔ Part Number: HOM2150BB
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: HOMELINE
✔ Type: HOM
✔ Voltage: 240
✔ Amperage: 150
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Box Lugs
✔ MCM Size: Min. Wire Size 4 AWG (Cu/Al) Max. Wire Size 300 kcmil (Cu/Al)
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901296201
✔ GTIN: 00785901296201
✔ Country of Origin: Mexico
✔ Dimensions: 3.98 in x 5.39 in
✔ Weight: 1.39
✔ Standards: UL Listed
✔ Certification: UL Listed
The Square D HOM2150BB is a Molded Case Circuit Breaker from the HOMELINE family. It features a 2-pole design with a 240V, 150A rating and a 10kA@240V AIC rating. This breaker uses a plug-in connection and offers thermal magnetic protection for reliable performance.
Key Features:
✔ Part Number: HOM2150BB
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: HOMELINE
✔ Type: HOM
✔ Voltage: 240
✔ Amperage: 150
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Box Lugs
✔ MCM Size: Min. Wire Size 4 AWG (Cu/Al) Max. Wire Size 300 kcmil (Cu/Al)
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901296201
✔ GTIN: 00785901296201
✔ Country of Origin: Mexico
✔ Dimensions: 3.98 in x 5.39 in
✔ Weight: 1.39
✔ Standards: UL Listed
✔ Certification: UL Listed
