Product Description:

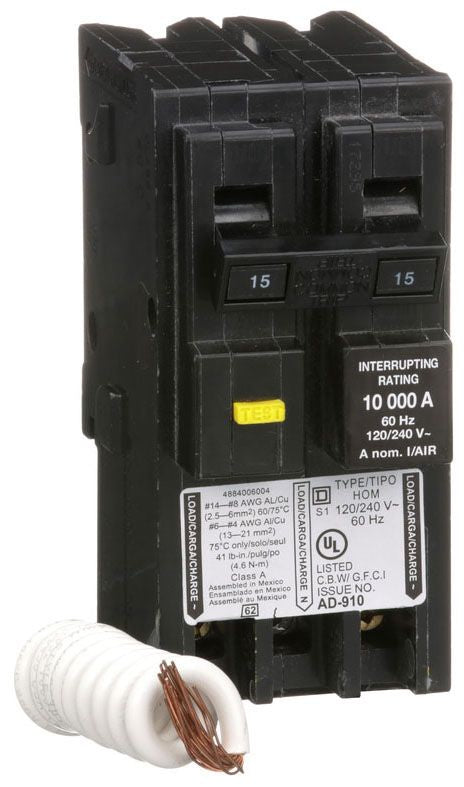

The Square D HOM215GFI is a Molded Case Circuit Breaker from the HOMELINE family. It is a 2-pole, 15 amp breaker rated for 120/240 VAC with an AIC rating of 10kA@240V. This plug-in circuit breaker is designed for use in Homeline load centers and includes ground fault circuit interrupter protection.
Key Features:
✔ Part Number: HOM215GFI
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: HOMELINE
✔ Type: HOM
✔ Voltage: 120/240 VAC
✔ Amperage: 15
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp
✔ Frame Size: 100A/HOM
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
✔ Breaker Type: Ground Fault Circuit Interrupter (Class A - 5mA)
✔ UPC: 785901303190
✔ GTIN: 00785901303190
✔ Country of Origin: Mexico
✔ Dimensions: 2 in x 3.13 in x 3.13 in
✔ Weight: 1.15
✔ Panel Type: Homeline Load Center
✔ Standards: CSA Certified, HACR, UL Listed
✔ Certification: CSA Certified, HACR, UL Listed
