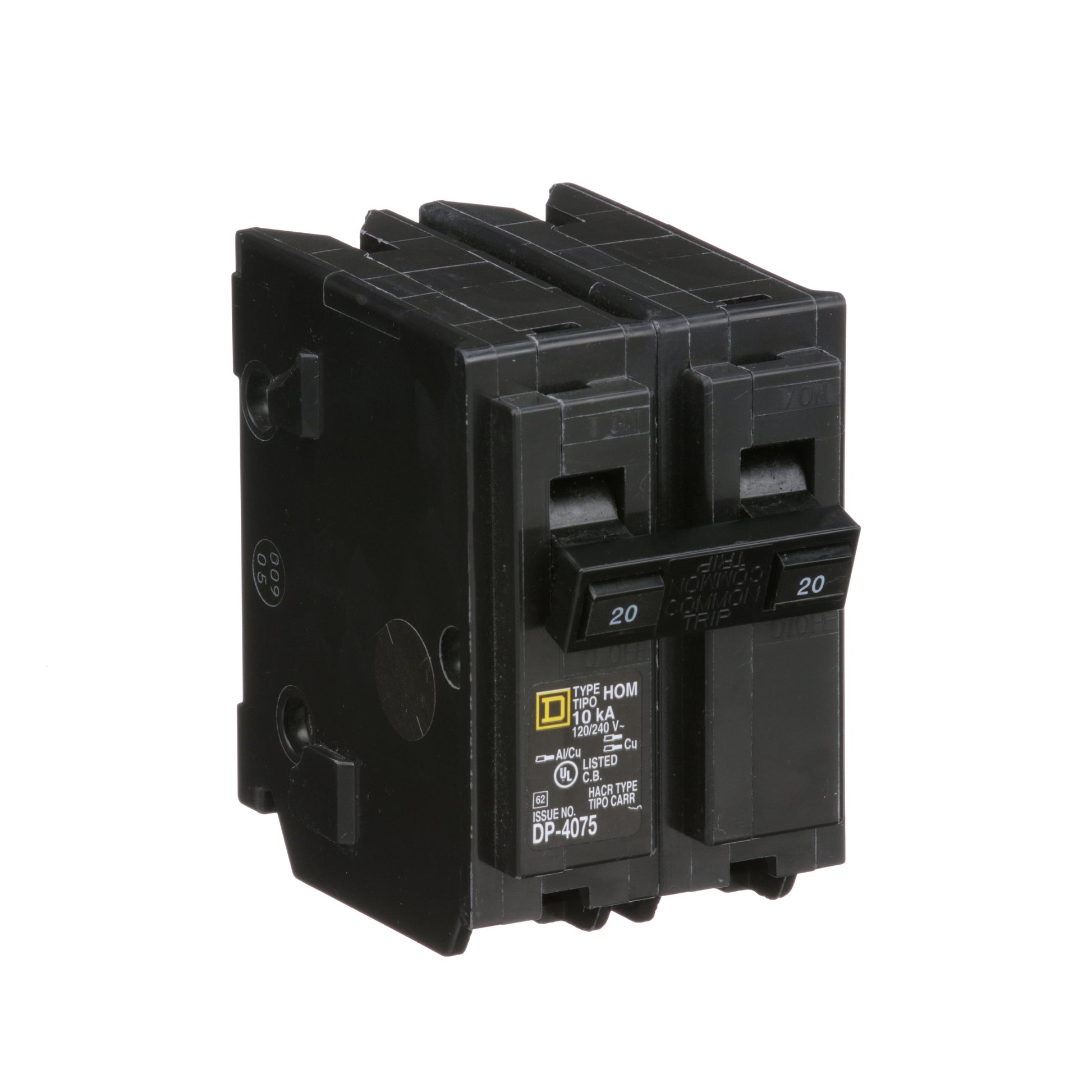

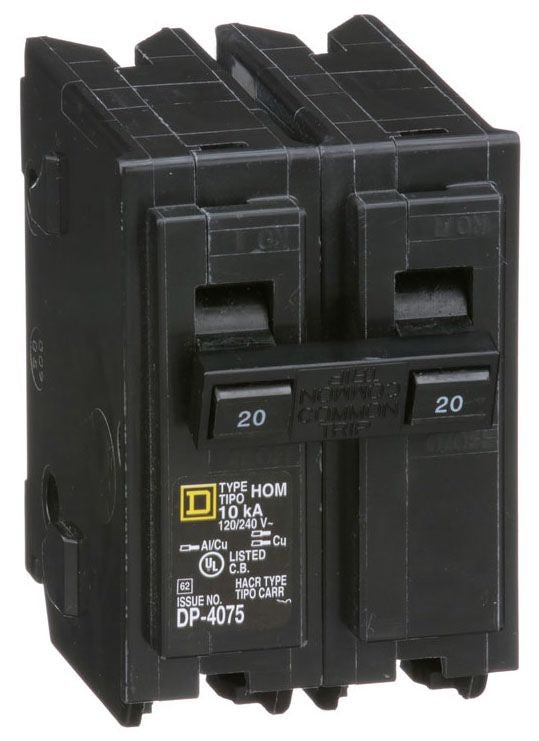

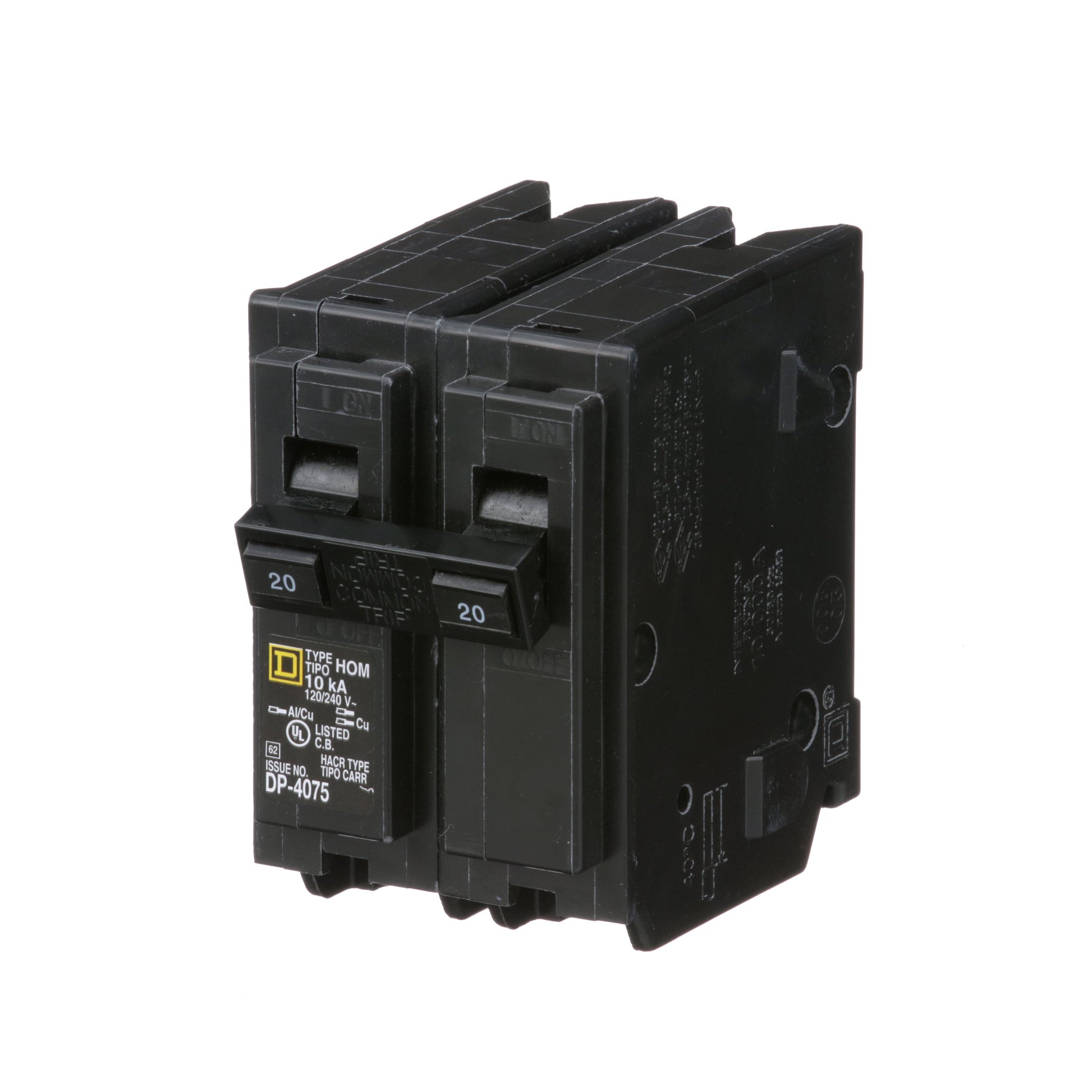

Square D HOM220 Circuit Breaker | 120/240V 20A 2P 10kA@240V Plug-In HOMELINE

Product Description:
The Square D HOM220 is a Molded Case Circuit Breaker from the HOMELINE family. It is a 2-pole, 20 amp breaker rated for 120/240 volts with a 10kA interrupting capacity at 240V. This plug-in circuit breaker provides thermal magnetic protection for reliable performance.

Key Features:
✔ Part Number: HOM220
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: HOMELINE
✔ Type: HOM
✔ Voltage: 120/240
✔ Amperage: 20
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Plug-In
✔ Protection: Thermal Magnetic
✔ Terminal Connection: Screw Clamp
✔ Frame Size: 100A/HOM
✔ Wire Size: 14 AWG Min, 8 AWG Max
✔ Breaker Type: Standard
✔ UPC: 785901065289
✔ GTIN: 00785901065289
✔ Country of Origin: Mexico
✔ Dimensions: 2 in x 3.13 in x 3.13 in
✔ Weight: 0.65
✔ Panel Type: Homeline Load Center
✔ Standards: CSA Certified, HACR, UL Listed
