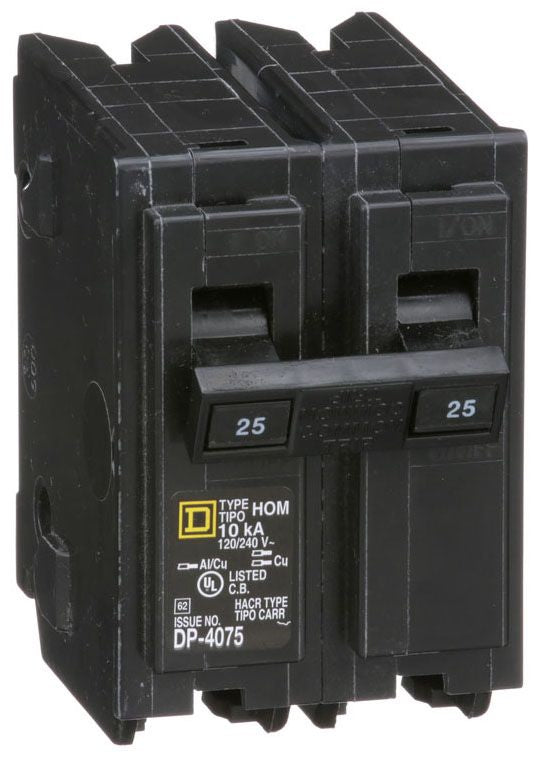

Square D HOM225 Circuit Breaker | 120/240V 25A 2P 10kA@240V Plug-In HOMELINE

Product Description:
The Square D HOM225 is a Molded Case Circuit Breaker from the HOMELINE family. It is a 2-pole, 25 amp breaker rated for 120/240 volts with a 10kA AIC rating at 240V. This plug-in breaker provides thermal magnetic protection for reliable circuit safety.

Key Features:
✔ Part Number: HOM225
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: HOMELINE
✔ Type: HOM
✔ Voltage: 120/240
✔ Amperage: 25
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp
✔ Frame Size: 100A/HOM
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 8 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901065487
✔ GTIN: 00785901065487
✔ Country of Origin: Mexico
✔ Dimensions: 2 in x 3.13 in x 3.13 in
✔ Weight: 1
✔ Panel Type: Homeline Load Center
✔ Standards: CSA Certified, HACR, UL Listed
✔ Certification: CSA Certified, HACR, UL Listed
