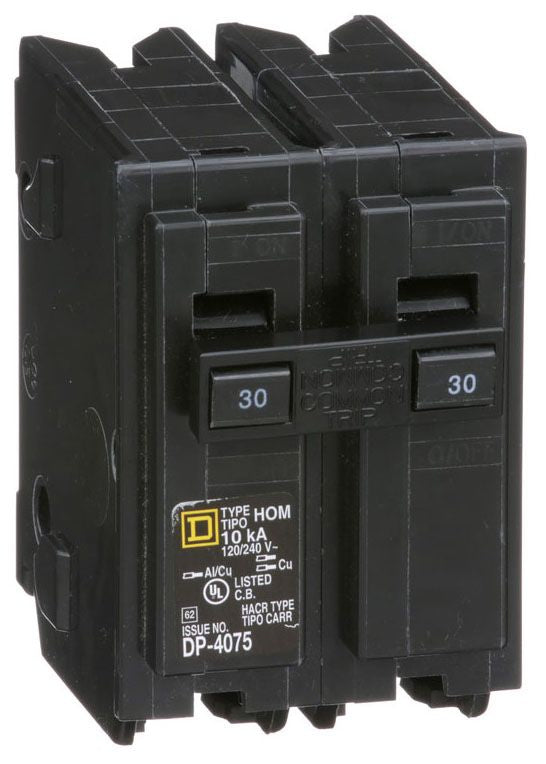

Square D HOM230 Circuit Breaker | 30A 2P 120/240V 10kA HOMELINE

Product Description:
The HOM230 is a Square D HOMELINE 2-pole circuit breaker designed for residential electrical panels. It provides reliable thermal magnetic protection for 30-amp circuits with a voltage rating of 120/240V. This plug-in breaker is UL Listed and CSA Certified, ensuring it meets industry safety standards. It is compatible with Homeline load centers and is easy to install with standard screw clamp terminals.

Key Features:
✔ Part Number: HOM230
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Parts And Accessories
✔ Family: HOMELINE
✔ Type: HOM
✔ Voltage: 120/240
✔ Amperage: 30
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp
✔ Frame Size: 100A/HOM
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 8 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901065296
✔ GTIN: 00785901065296
✔ Country of Origin: Mexico
✔ Dimensions: 2 in x 3.13 in x 3.13 in
✔ Weight: 0.67
✔ Panel Type: Homeline Load Center
✔ Standards: CSA Certified, HACR, UL Listed
✔ Certification: CSA Certified, HACR, UL Listed
