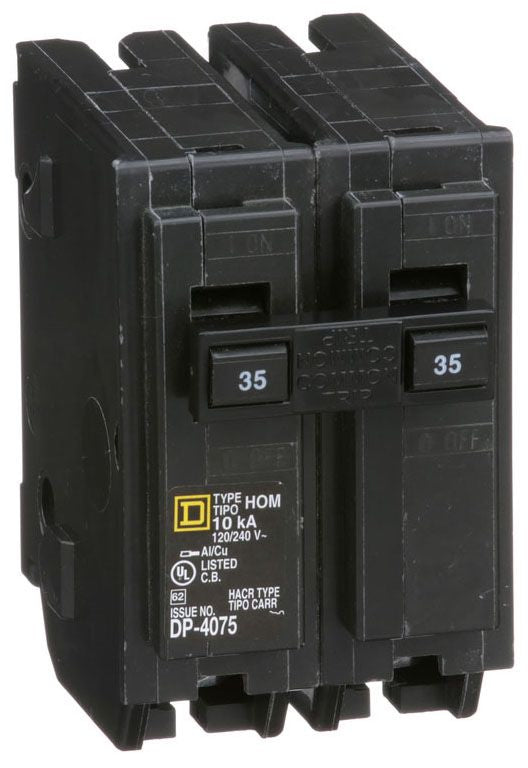

Square D HOM235 Circuit Breaker | 120/240V 35A 2P 10kA@240V Plug-In HOMELINE

Product Description:
The Square D HOM235 is a 2-pole molded case circuit breaker from the HOMELINE family. It is rated for 35 amps and 120/240 volts, providing reliable circuit protection with a 10kA AIC rating at 240V. This plug-in breaker features thermal magnetic protection for both overload and short-circuit conditions. It is designed for use in Homeline load centers and is CSA certified, HACR, and UL listed.

Key Features:
✔ Part Number: HOM235
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: HOMELINE
✔ Type: HOM
✔ Voltage: 120/240
✔ Amperage: 35
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Plug-In
✔ Protection: Thermal Magnetic
✔ Frame Size: 100A/HOM
✔ Wire Size: Min. 8 AWG Max. 2 AWG
✔ Breaker Type: Standard
✔ UPC: 785901065494
✔ GTIN: 00785901065494
✔ Country of Origin: Mexico
✔ Dimensions: 2 in x 3.13 in x 3.13 in
✔ Weight: 0.7
✔ Panel Type: Homeline Load Center
✔ Standards: CSA Certified, HACR, UL Listed
✔ Certification: CSA Certified, HACR, UL Listed
