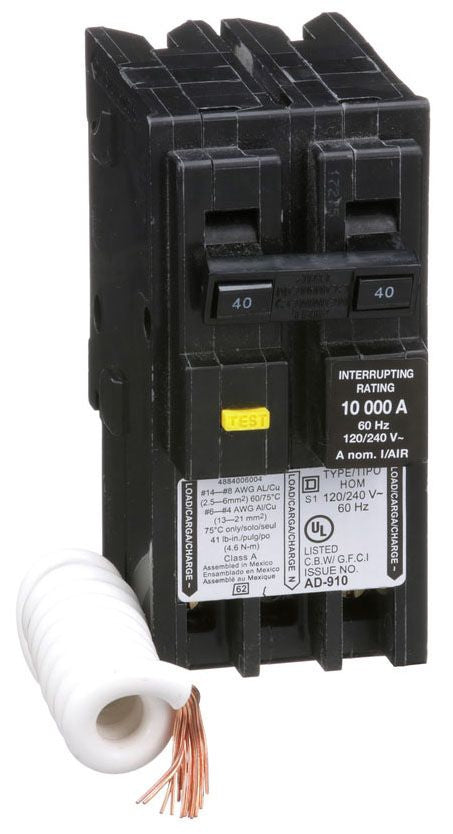

Square D HOM240GFI Circuit Breaker | 120/240V 40A 2P 10kA@240V Plug-In HOMELINE

Product Description:
The Square D HOM240GFI is a 2-pole, 40 amp Molded Case Circuit Breaker from the HOMELINE family, designed for 120/240 Volt systems. It features a 10kA@240V AIC rating and uses a plug-in connection for easy installation. This breaker provides thermal magnetic protection and includes ground fault circuit interruption (Class A - 5mA) for enhanced safety.

Key Features:
✔ Part Number: HOM240GFI
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: HOMELINE
✔ Type: HOM
✔ Voltage: 120/240
✔ Amperage: 40
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp
✔ Frame Size: 100A/HOM
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
✔ Breaker Type: Ground Fault Circuit Interrupter (Class A - 5mA)
✔ Protection: Thermal Magnetic
✔ UPC: 785901303466
✔ GTIN: 00785901303466
✔ Country of Origin: Mexico
✔ Dimensions: 2 in x 3.13 in x 3.13 in
✔ Weight: 1.22
✔ Panel Type: Homeline Load Center
✔ Standards: CSA Certified, HACR, UL Listed
✔ Certification: CSA Certified, HACR, UL Listed
