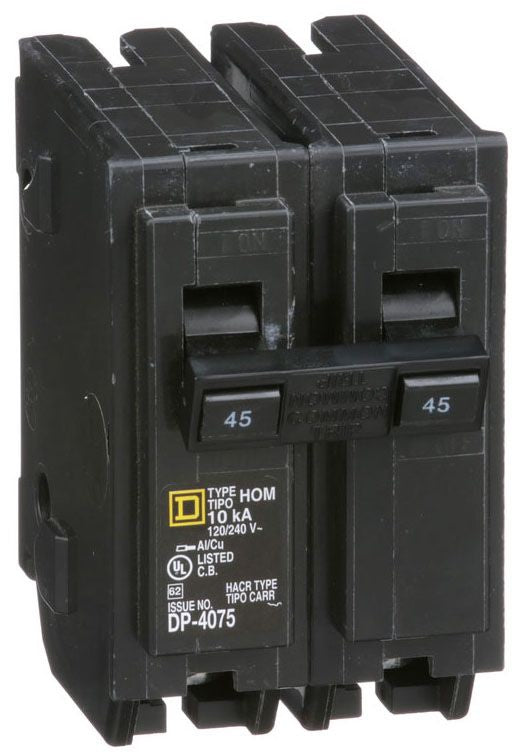

Square D HOM245 Circuit Breaker | 120/240V 45A 2P 10kA@240V HOMELINE

Product Description:
The Square D HOM245 is a Molded Case Circuit Breaker from the HOMELINE family. It is a 2-pole, 45 amp breaker rated for 120/240 Volt applications with an AIC rating of 10kA@240V. This model includes Thermal Magnetic protection for reliable performance. It is designed for use in Homeline Load Centers and is CSA Certified, HACR, and UL Listed.

Key Features:
✔ Part Number: HOM245
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: HOMELINE
✔ Type: HOM
✔ Voltage: 120/240
✔ Amperage: 45
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/HOM
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901065500
✔ GTIN: 00785901065500
✔ Country of Origin: Mexico
✔ Dimensions: 2 in x 3.13 in x 3.13 in
✔ Weight: 1 lb
✔ Panel Type: Homeline Load Center
✔ Standards: CSA Certified, HACR, UL Listed
✔ Certification: CSA Certified, HACR, UL Listed
