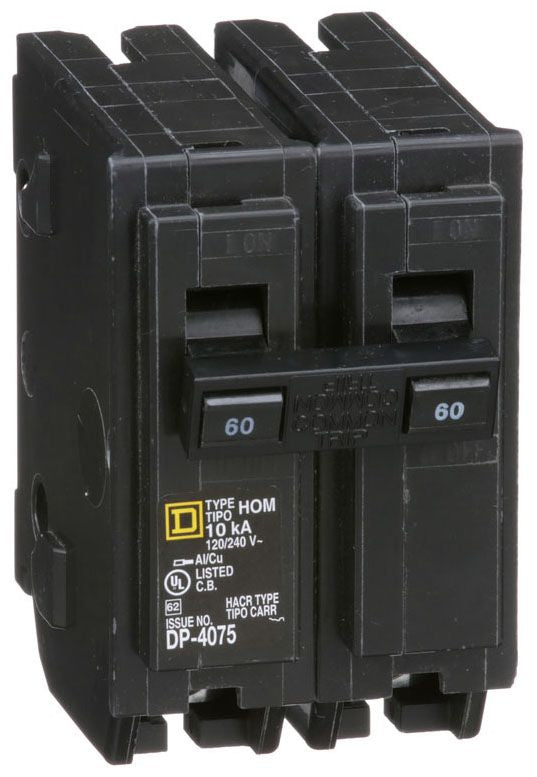

Square D HOM260 Circuit Breaker | 120/240V 60A 2P 10kA@240V HOMELINE

Product Description:
The Square D HOM260 is a 2-pole, 60 Amp Molded Case Circuit Breaker from the HOMELINE family. It operates at 120/240 Volts and features a 10kA@240V AIC rating with thermal magnetic protection. This plug-in circuit breaker is designed for use in Homeline load centers and is CSA Certified, HACR, and UL Listed.

Key Features:
✔ Part Number: HOM260
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: HOMELINE
✔ Type: HOM
✔ Voltage: 120/240
✔ Amperage: 60
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Plug-In
✔ Terminal Connection: Lug
✔ Frame Size: 100A/HOM
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901065333
✔ GTIN: 00785901065333
✔ Country of Origin: Mexico
✔ Dimensions: 2 in x 3.13 in x 3.13 in
✔ Weight: 1
✔ Panel Type: Homeline Load Center
✔ Standards: CSA Certified, HACR, UL Listed
✔ Certification: CSA Certified, HACR, UL Listed
