Product Description:

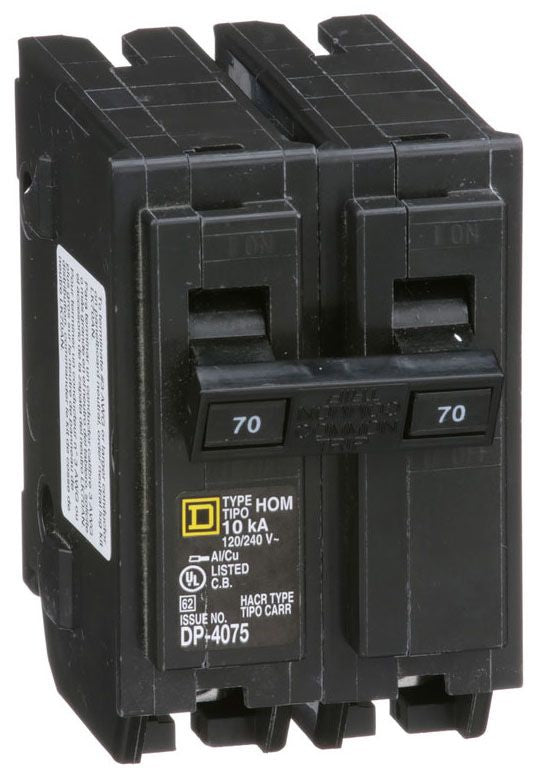

The Square D HOM270 is a Molded Case Circuit Breaker from the HOMELINE family. It is a 2-pole, 70 amp breaker with a 120/240 VAC rating and a 10kA@240V AIC rating. This breaker features thermal magnetic protection and a plug-in connection for easy installation. It is designed for use in Homeline load centers and meets CSA, HACR, and UL standards.
Key Features:
✔ Part Number: HOM270
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: HOMELINE
✔ Type: HOM
✔ Voltage: 120/240 VAC
✔ Amperage: 70
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/HOM
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901065340
✔ GTIN: 00785901065340
✔ Country of Origin: Mexico
✔ Dimensions: 2 in x 3.13 in x 3.13 in
✔ Weight: 1 lb
✔ Panel Type: Homeline Load Center
✔ Standards: CSA Certified, HACR, UL Listed
✔ Certification: CSA Certified, HACR, UL Listed
