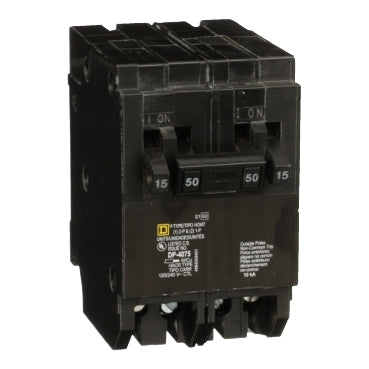

Square D HOMT1515250 Circuit Breaker | HOMELINE HOMT 240V 50A

Product Description:
The Square D HOMT1515250 is a Molded Case Circuit Breaker from the HOMELINE family. It is a 4-pole, 240V, 50A breaker with a 10kA@240V AIC rating. This breaker features Plug-In connections and Thermal Magnetic protection. It is UL Listed and suitable for residential and light commercial applications.

Key Features:
✔ Part Number: HOMT1515250
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: HOMELINE
✔ Type: HOMT
✔ Voltage: 240V
✔ Amperage: 50A
✔ Phase: 1
✔ Poles: 4
✔ AIC Rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Box Lugs
✔ MCM Size: Min. Wire Size 14 AWG (Cu), 12 AWG (Al)
✔ Max. Wire Size: 6 AWG (Cu/Al), 8 AWG (Al)
✔ Breaker Type: Quad Tandem
✔ Protection: Thermal Magnetic
✔ UPC: 785901377030
✔ GTIN: 00785901377030
✔ Country of Origin: Mexico
✔ Dimensions: 2 in x 3.13 in
✔ Weight: 0.91 lbs
✔ Standards: UL Listed
✔ Certification: UL Listed
