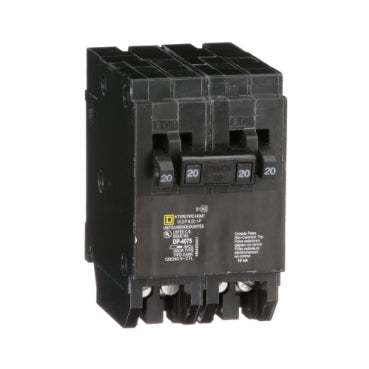

Square D HOMT2020220 Circuit Breaker | 120/240V 20A 4P 10kA@240V Plug-In HOMELINE

Product Description:
The Square D HOMT2020220 is a 4-pole molded case circuit breaker from the HOMELINE family. It operates at 120/240 volts with a 20 amp rating and offers thermal magnetic protection. This plug-in breaker is designed for use in Homeline load centers and is CSA certified, HACR rated, and UL listed.

Key Features:
✔ Part Number: HOMT2020220
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: HOMELINE
✔ Type: HOMT
✔ Voltage: 120/240
✔ Amperage: 20
✔ Poles: 4
✔ AIC rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/HOM
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 8 AWG
✔ Breaker Type: Tandem
✔ Protection: Thermal Magnetic
✔ UPC: 785901101024
✔ GTIN: 00785901101024
✔ Country of Origin: Mexico
✔ Dimensions: 2 in x 3.13 in x 3.13 in
✔ Weight: 0.84
✔ Panel Type: Homeline Load Center
✔ Standards: CSA Certified, HACR, UL Listed
✔ Certification: CSA Certified, HACR, UL Listed
