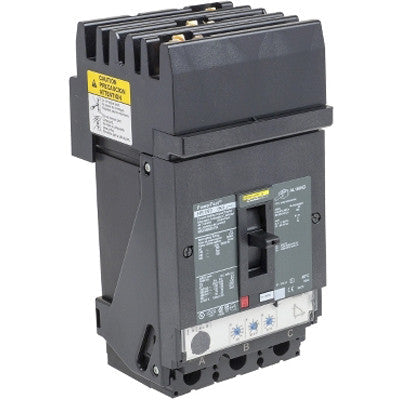

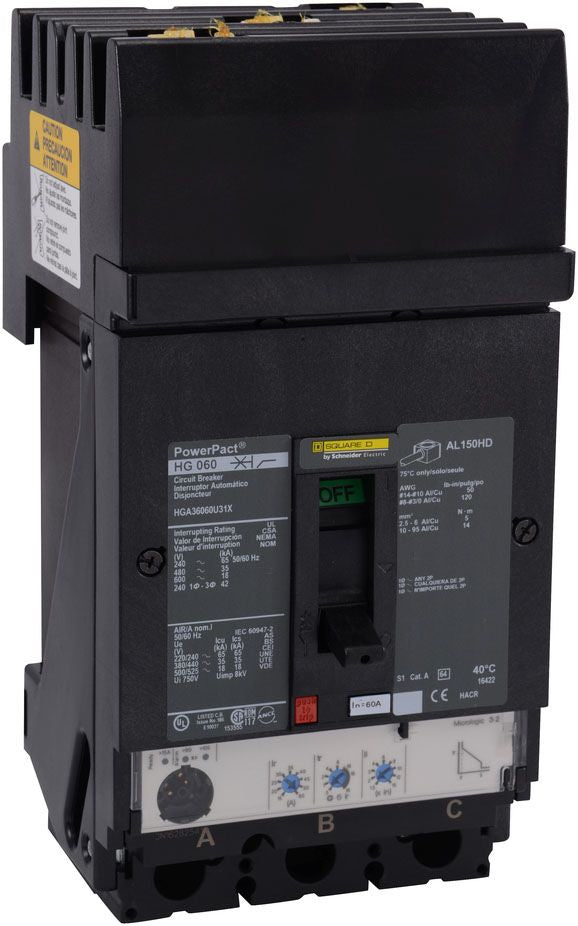

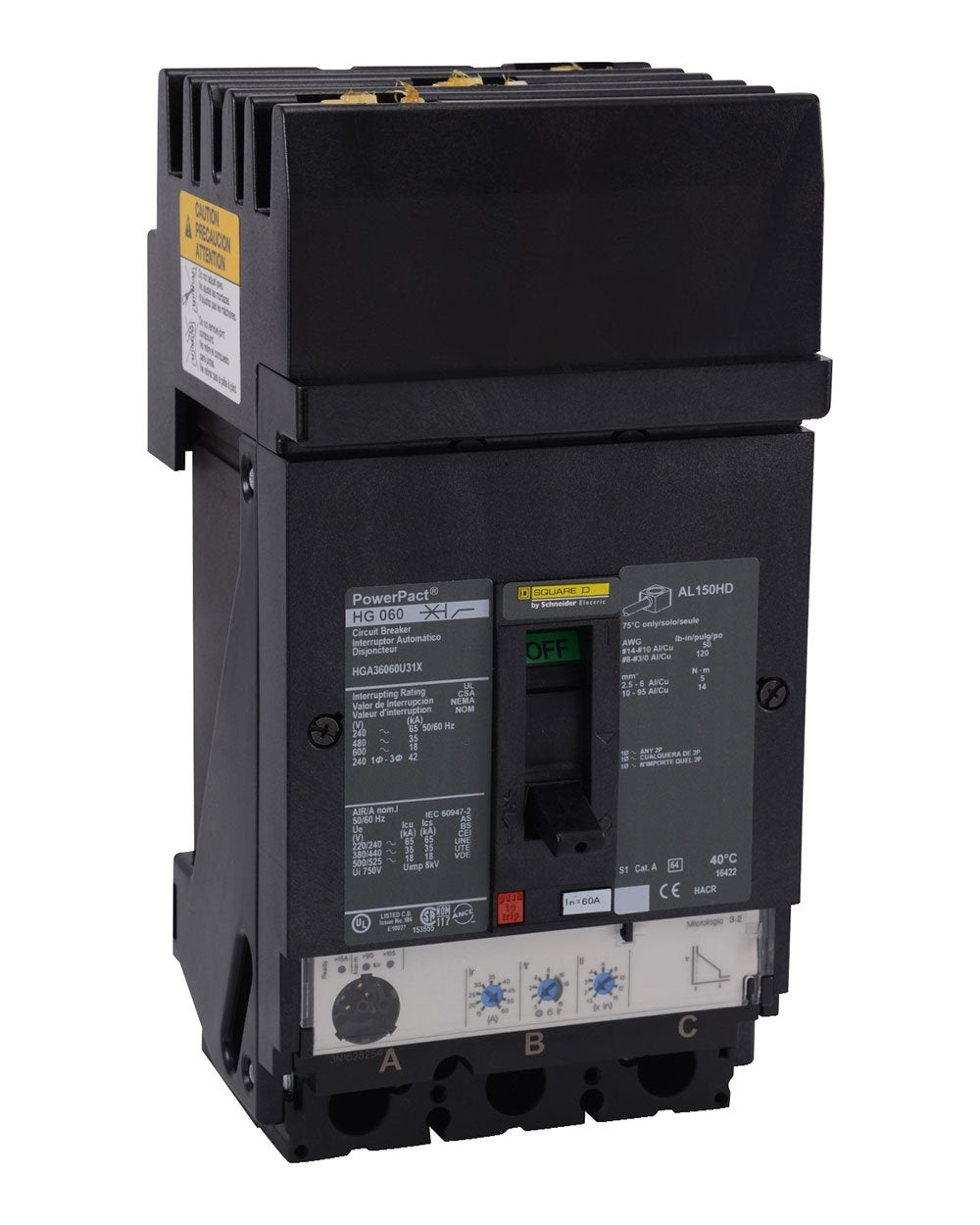

Square D HRA36060U31X Circuit Breaker | 600V 60A 3P 200kA@480V I-Line Plug-In Powerpact HRA

Product Description:
This Square D HRA36060U31X is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 60 amp breaker rated for 600 Volts with an interrupting capacity of 200kA at 480V. The unit features an I-Line Style Plug-In connection and solid-state protection for reliable performance.

Key Features:
✔ Part Number: HRA36060U31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HRA
✔ Voltage: 600
✔ Amperage: 60
✔ Poles: 3
✔ AIC Rating: 200kA@480V
✔ Connection: I-Line Style Plug-In
✔ Protection: Solid State
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: H
✔ Wire Size: Min. 14 AWG, Max. 3/0 AWG (Cu/Al)
✔ Phase Connection: ABC
✔ UPC: 785901943778
✔ GTIN: 00785901943778
✔ Country of Origin: Mexico
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
