Square D HRA36100U31X Circuit Breaker | 600V 100A 3P 200kA@480V I-Line Plug-In Powerpact HRA

Product Description:
The Square D HRA36100U31X is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 100 amp breaker rated for 600 Volts with an AIC rating of 200kA@480V. This unit features I-Line Style Plug-In connections and solid state protection for reliable performance.

Key Features:
✔ Part Number: HRA36100U31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HRA
✔ Voltage: 600
✔ Amperage: 100
✔ Poles: 3
✔ AIC rating: 200kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: H
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Solid State
✔ Phase Connection: ABC
✔ UPC: 785901710493
✔ GTIN: 00785901710493
✔ Country of Origin: Mexico

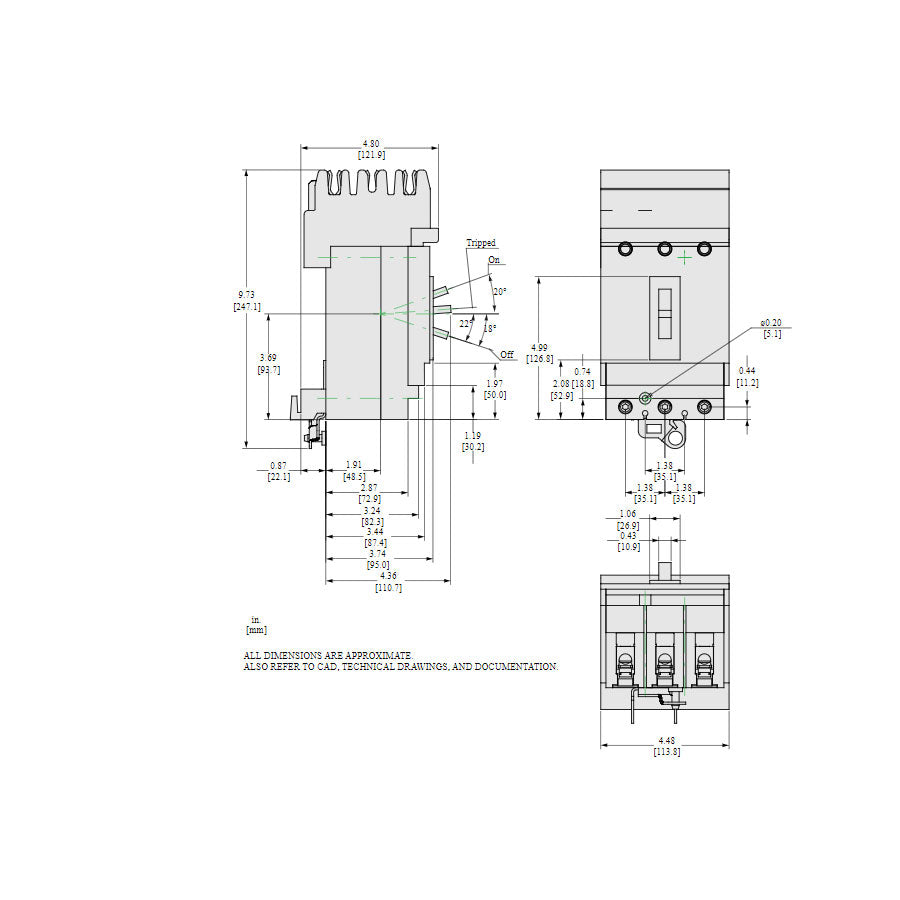

✔ Dimensions: 4.09 in x 6.42 in
✔ Weight: 2.62 lb
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
