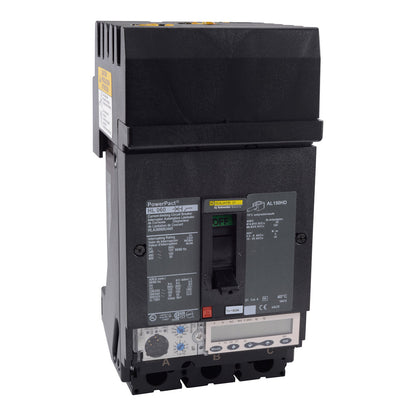

Square D HRL36050M72 Circuit Breaker | 600V 50A 3P 200kA@480V Feed-Thru Powerpact HRL

Product Description:

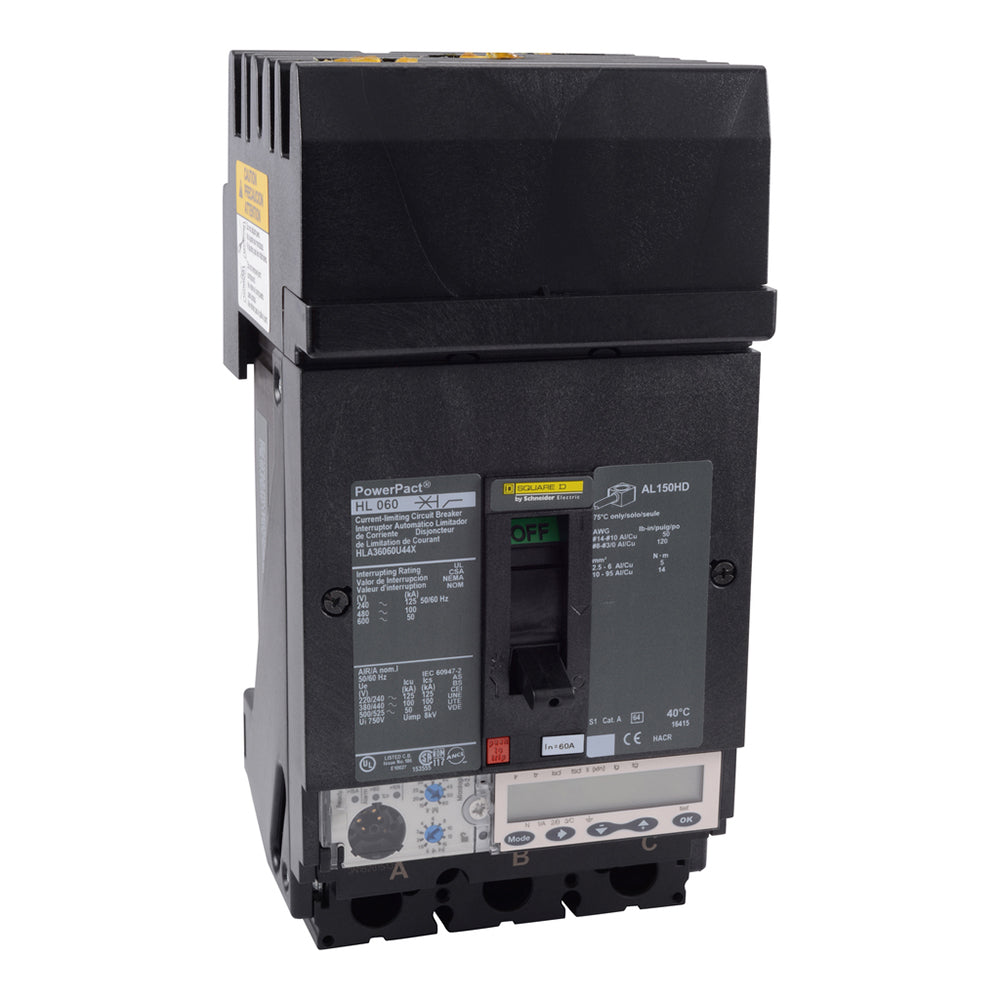

The Square D HRL36050M72 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole breaker rated for 600 Volts and 50 amps, with an AIC rating of 200kA at 480V. This model features a Feed-Thru connection and provides Magnetic Only protection.

Key Features:
✔ Part Number: HRL36050M72
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HRL
✔ Voltage: 600
✔ Amperage: 50
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 200kA@480V
✔ Connection: Feed-Thru
✔ Protection: Magnetic Only
✔ Functions: I - Instantaneous
✔ UPC: 060648628299
✔ GTIN: 03606486282991
✔ Dimensions: Height 6.42 in (163 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 2.27
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
