Product Description:

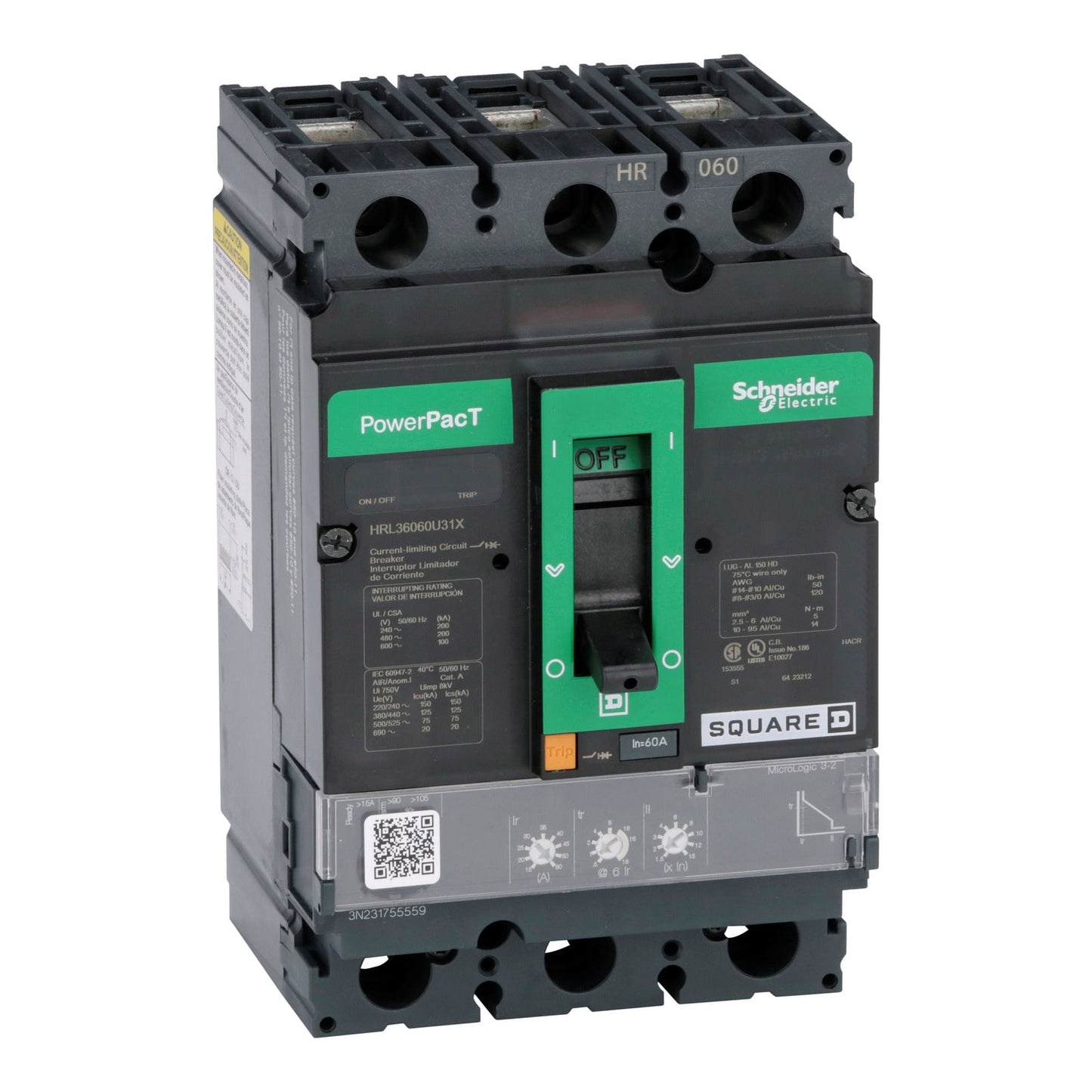

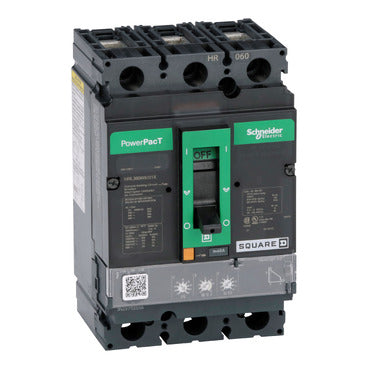

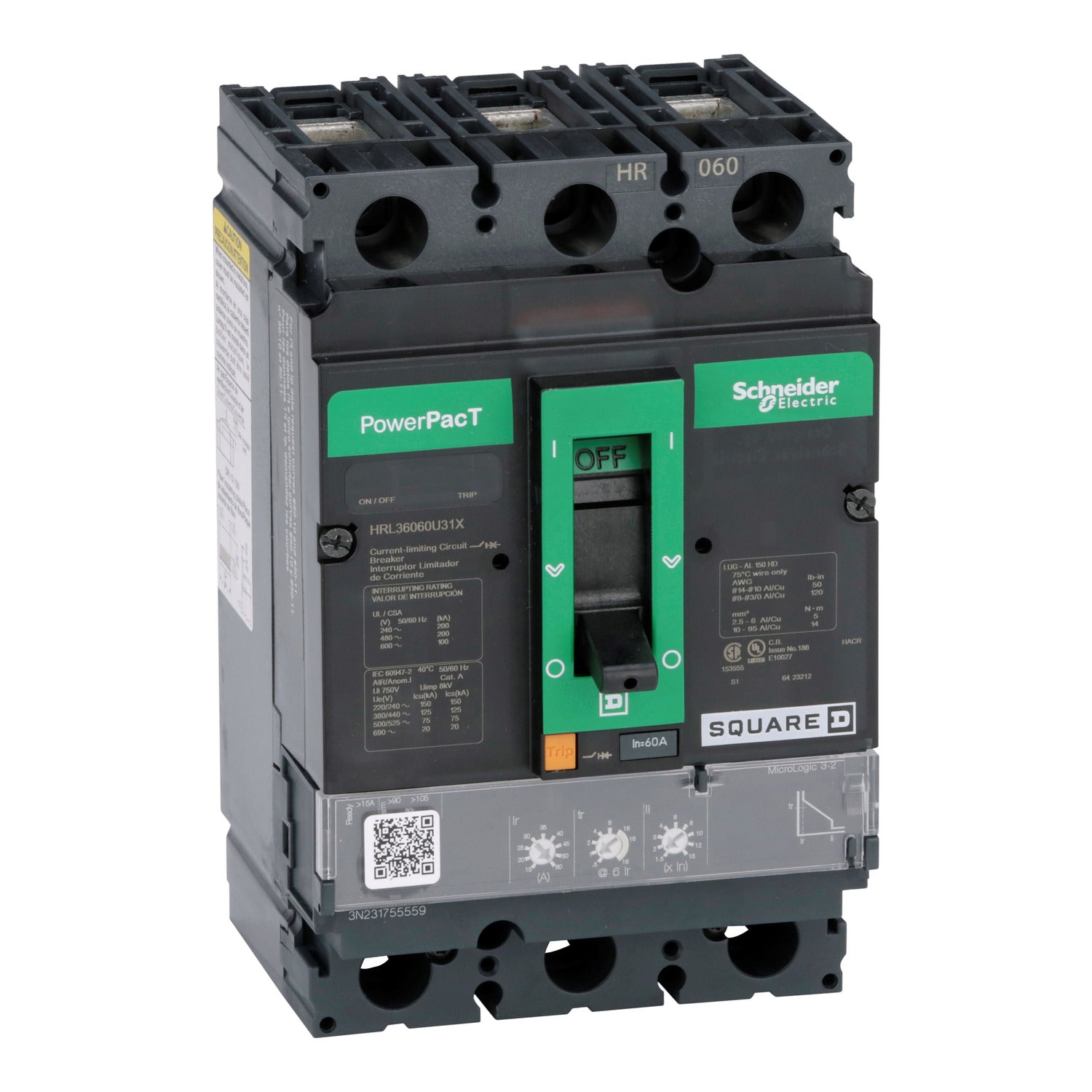

The Square D HRL36060U31X is a 3-pole molded case circuit breaker with a 600V, 60A rating. It features a 200kA@480V AIC rating and solid-state protection for reliable performance. The breaker uses a feed-thru connection and includes long-time and instantaneous trip functions.
Key Features:
✔ Part Number: HRL36060U31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Voltage: 600
✔ Amperage: 60
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 200kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Protection: Solid State
✔ UPC: 785901146810
✔ Country of Origin: Mexico
✔ Dimensions: 4.09 in x 6.42 in
✔ Weight: 1.99
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
