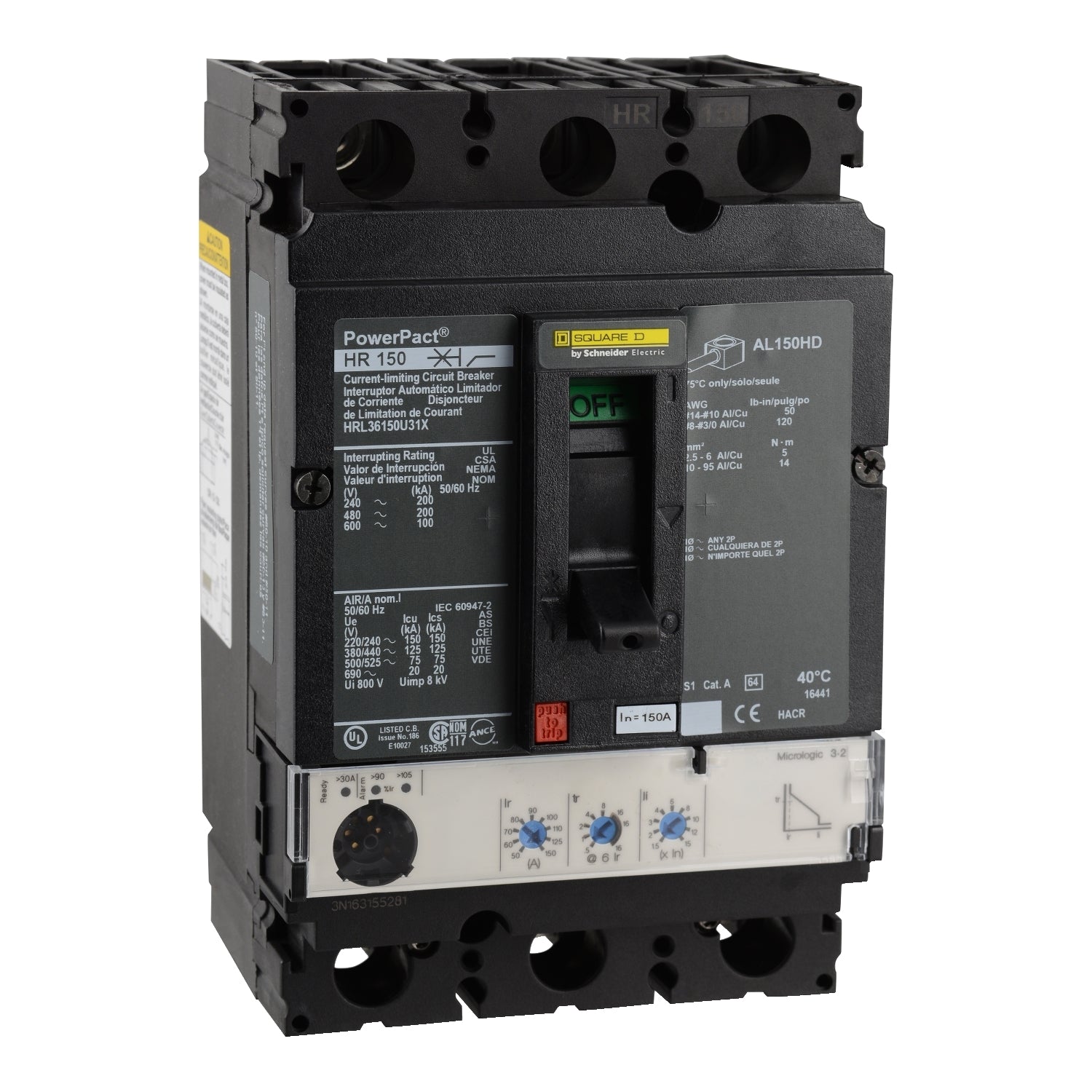

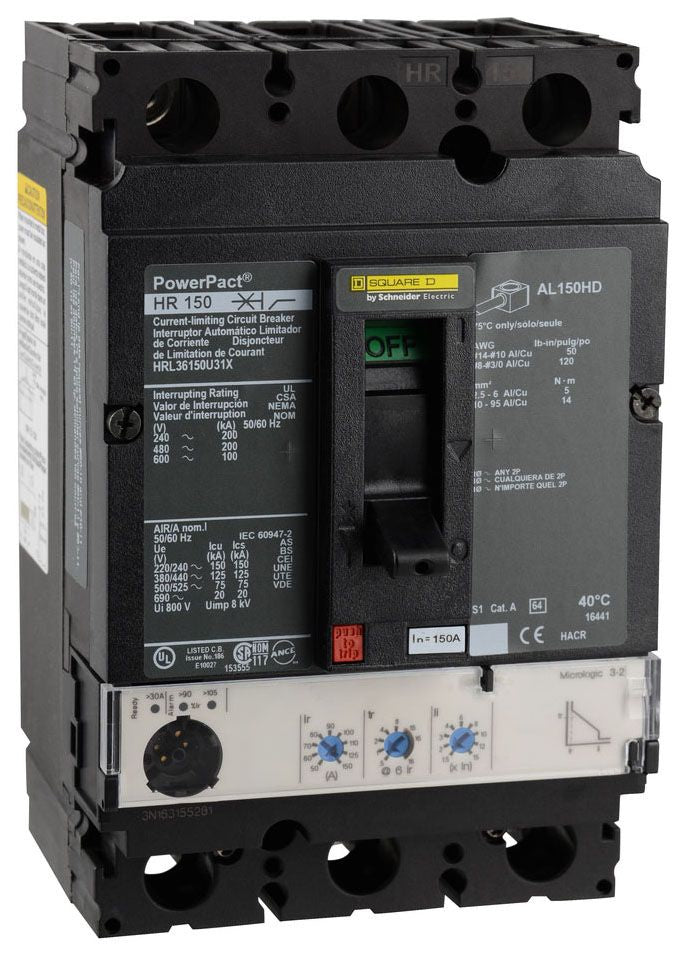

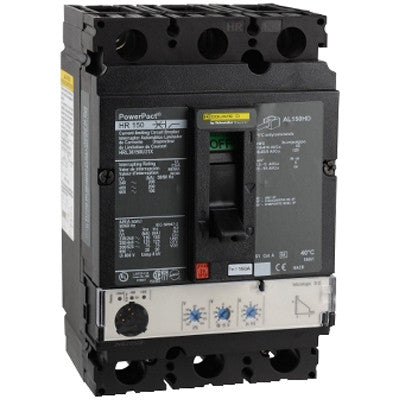

Square D HRL36150U31X Circuit Breaker | 600V 150A 3P 200kA@480V Feed-Thru Powerpact

Product Description:
The Square D HRL36150U31X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 150A rating and a 200kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes solid-state protection for reliable performance.

Key Features:
✔ Part Number: HRL36150U31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HRL
✔ Voltage: 600
✔ Amperage: 150
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 200kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: H
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Solid State
✔ UPC: 078590194874
✔ GTIN: 00785901948742
✔ Country of Origin: United States

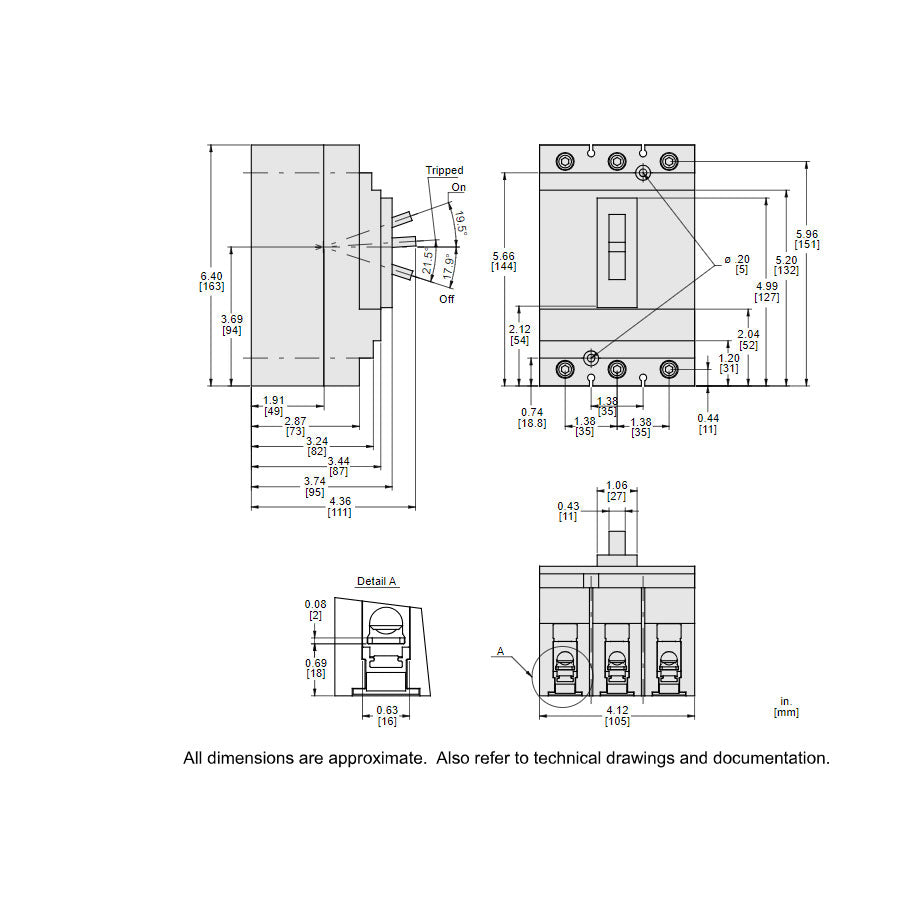

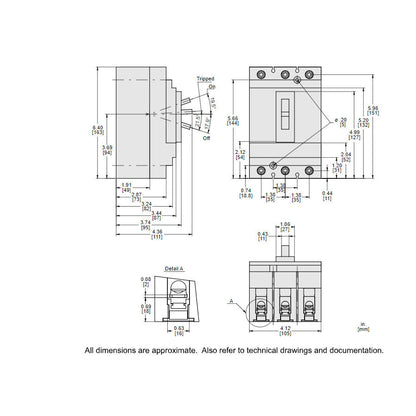

✔ Dimensions: 4.09 in x 6.42 in
✔ Weight: 1.99
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
