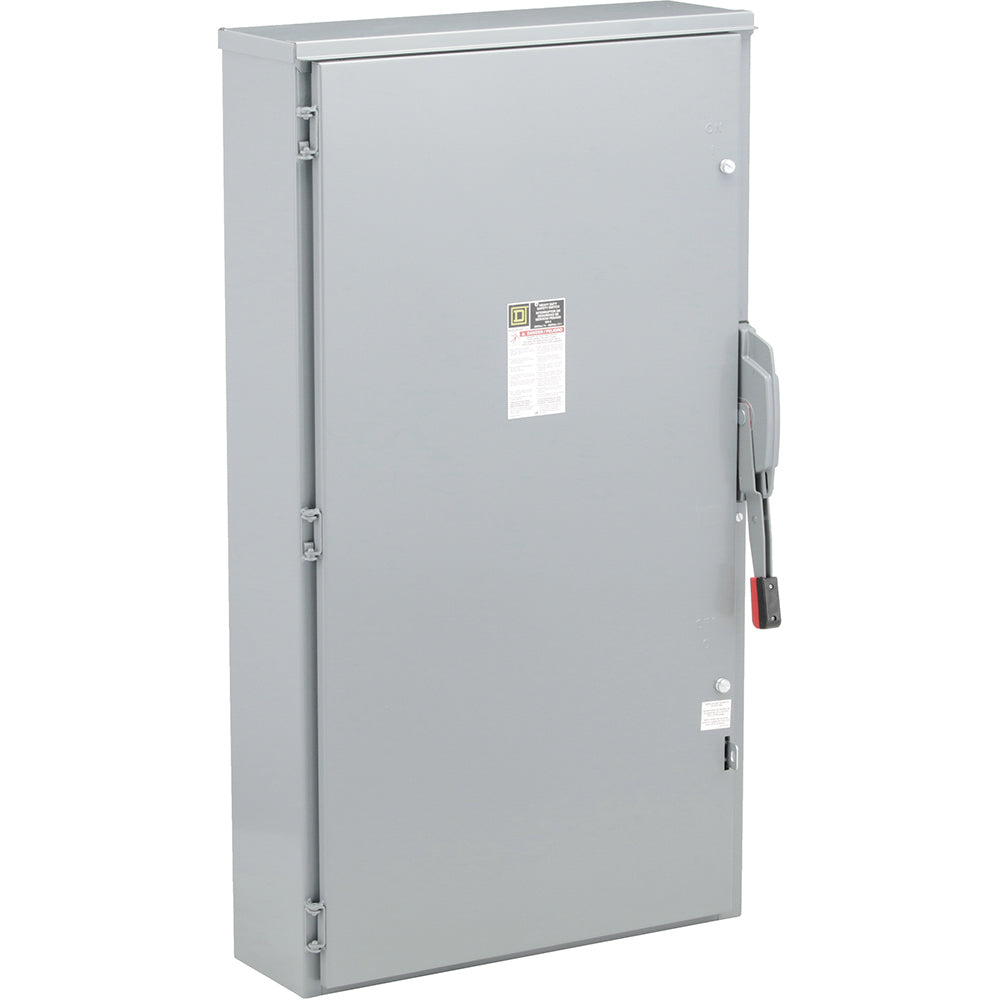

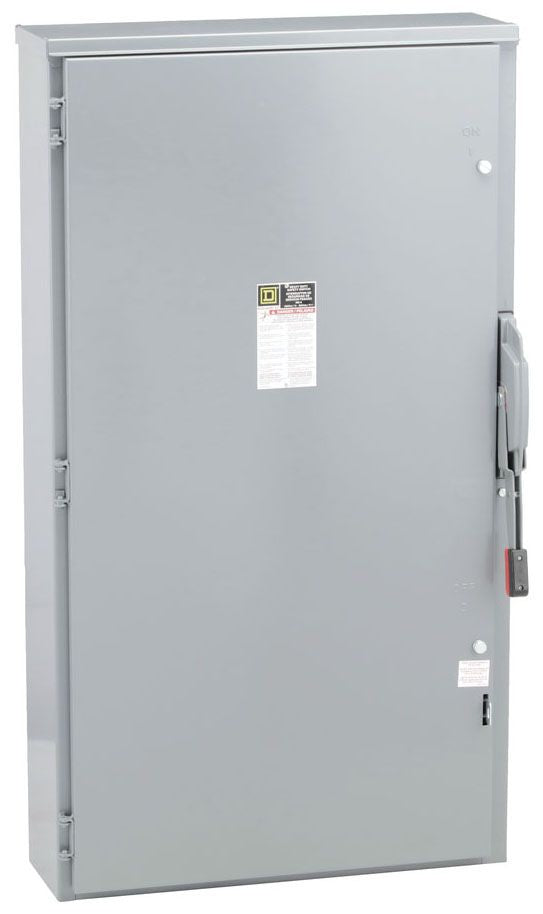

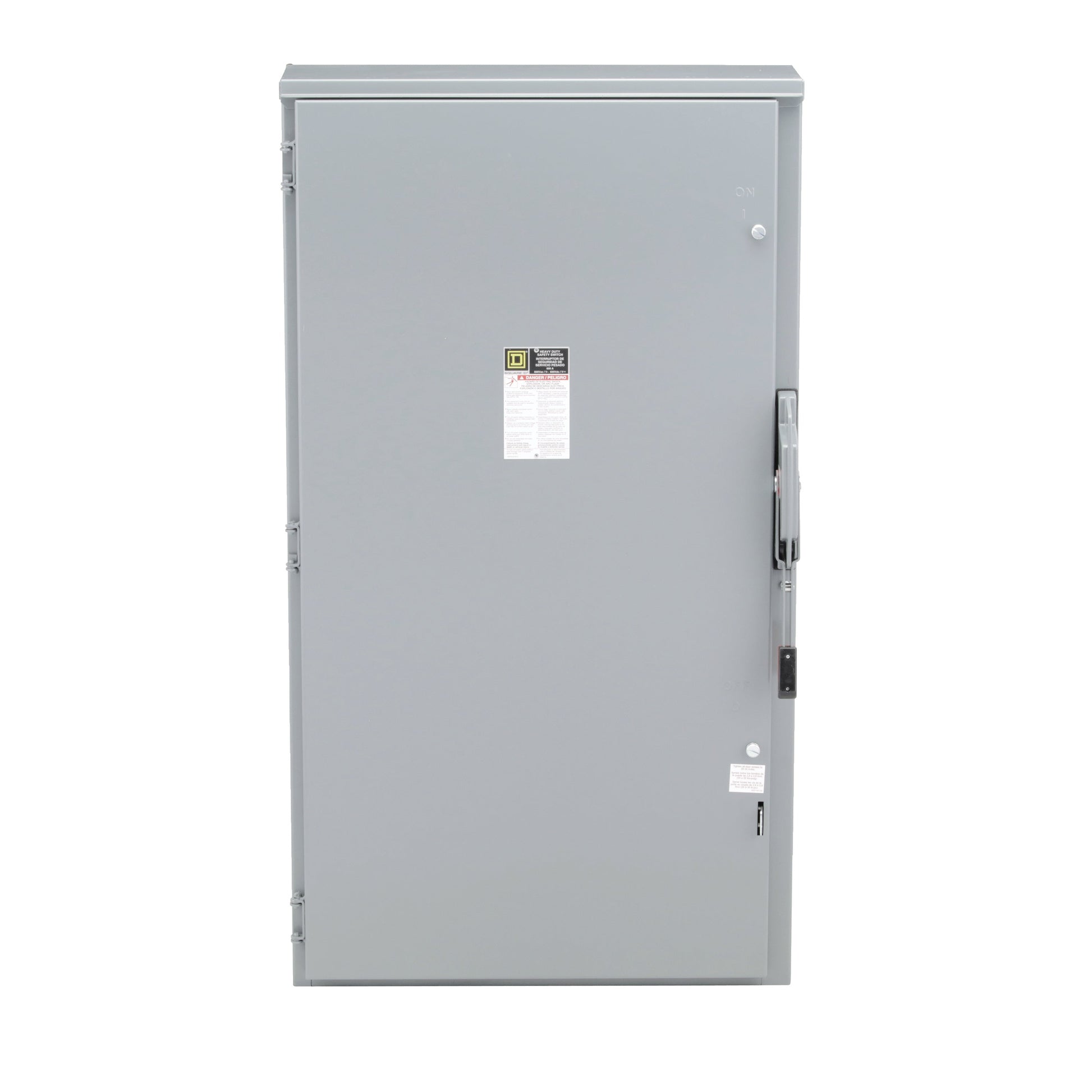

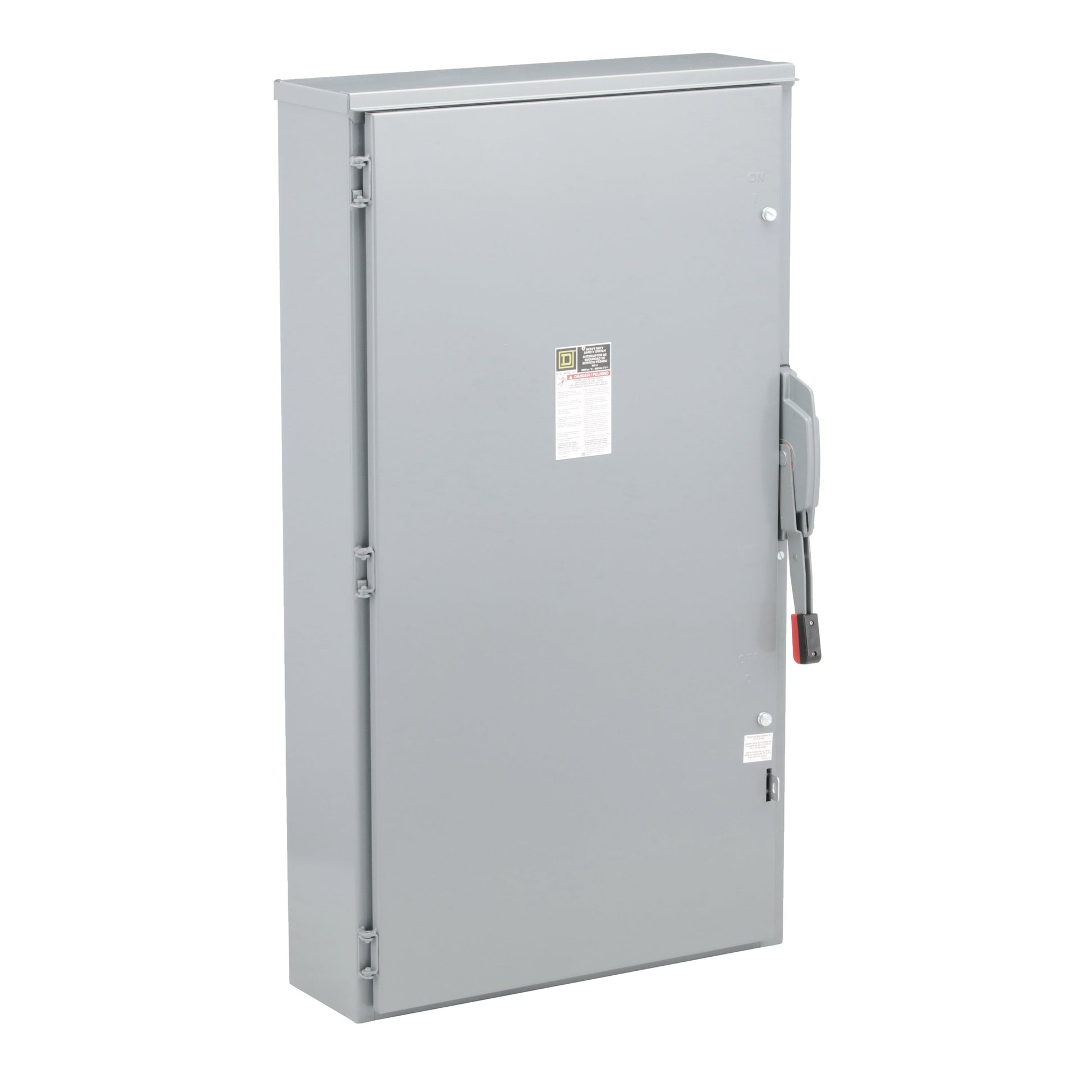

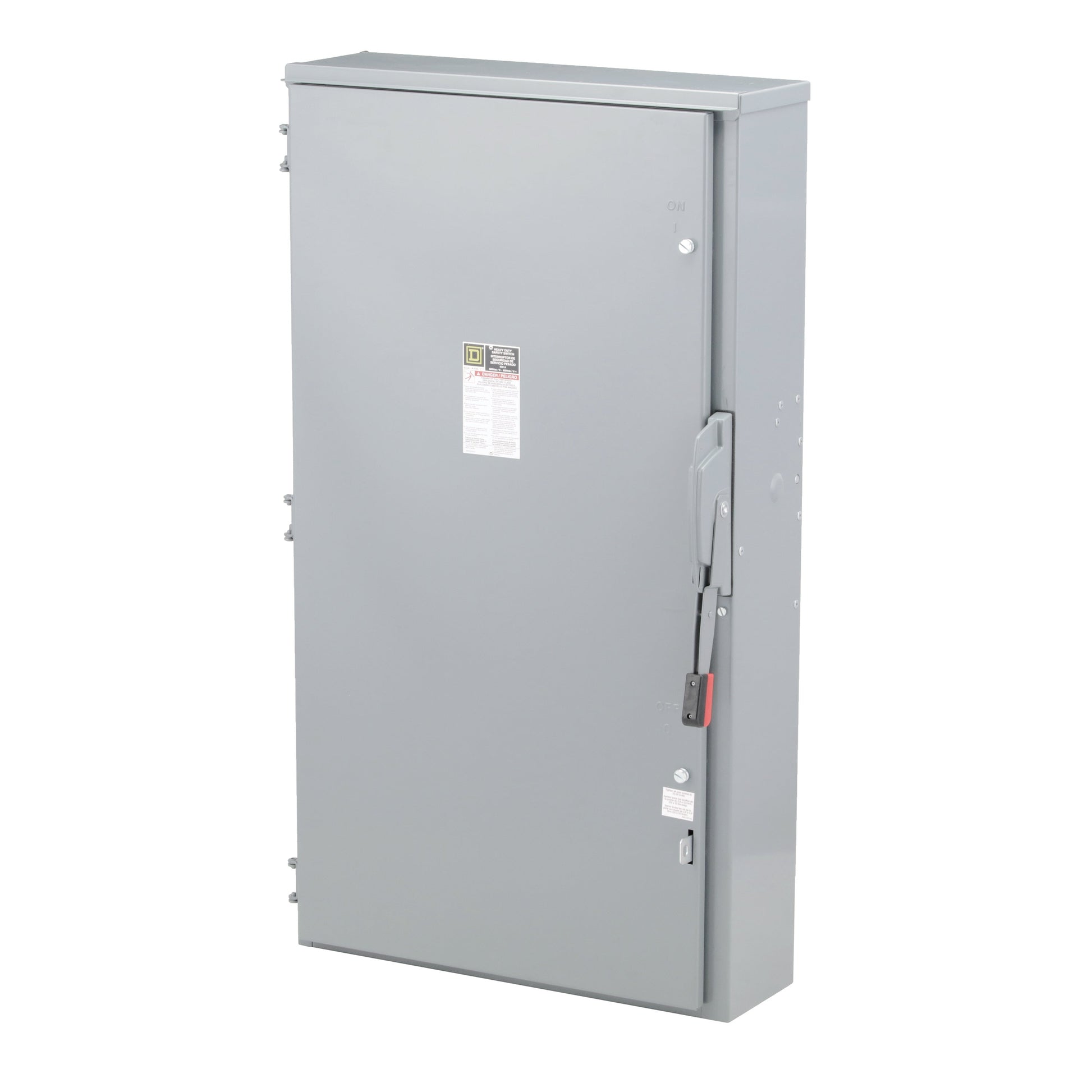

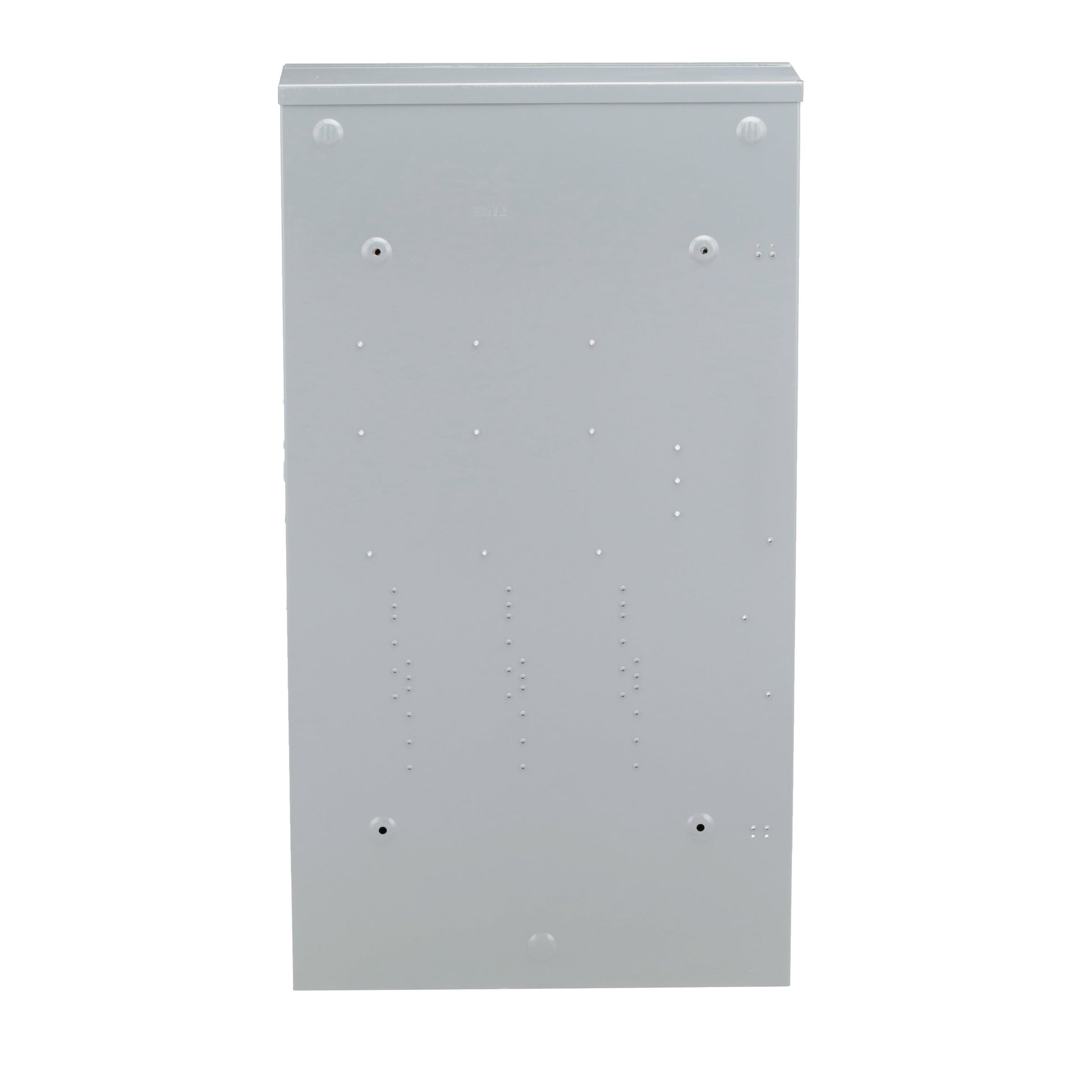

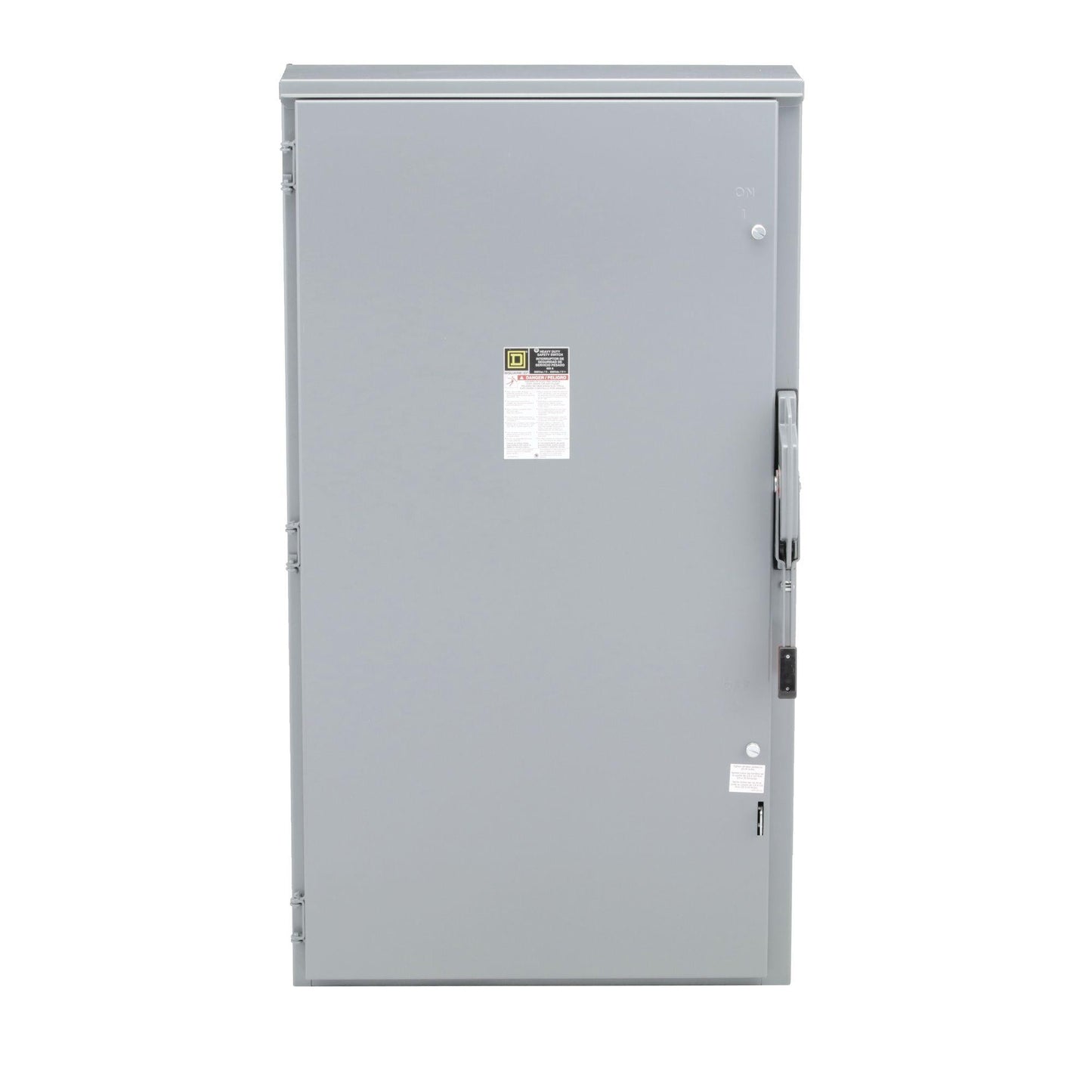

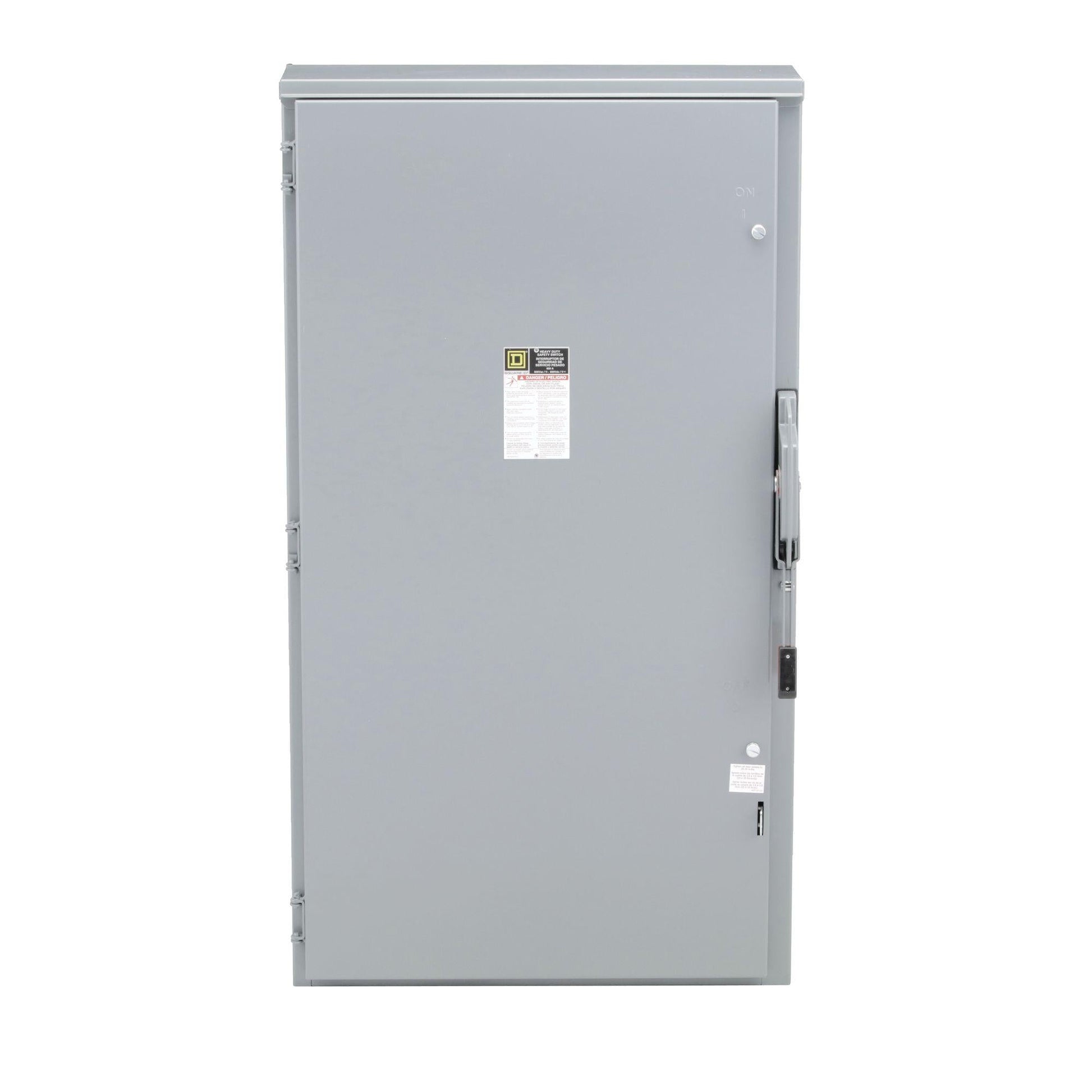

Square D HU366R Disconnect | 600A 600V 3P Non-Fusible Series E

Product Description:
The Square D HU366R is a heavy-duty 3-phase, 3-pole disconnect switch rated for 600 Volts and 600 Amps. It features a NEMA 3R rating for outdoor use and a high interrupting capacity of 200kA at 600V. This non-fusible switch is designed for service entrance applications and is compatible with ED frames.

Key Features:
✔ Part Number: HU366R
✔ Manufacturer: Square D
✔ Category: Switch
✔ Subcategory: Disconnect
✔ Family: Series E
✔ Type: HU
✔ Voltage: 600 AC
✔ Amperage: 600
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 200kA@600V
✔ Configuration: Single
✔ Switch Style: Non-Fusible
✔ Nema Rating: NEMA 3R
✔ Compatible Frames: ED
✔ UPC: 785901452164
✔ GTIN: 00785901452164
✔ Country of Origin: Mexico
✔ Dimensions: 27.88 in x 10.13 in x 50.31 in (WxDxH)
✔ Weight: 76.2 lb
✔ Certification: UL listed
