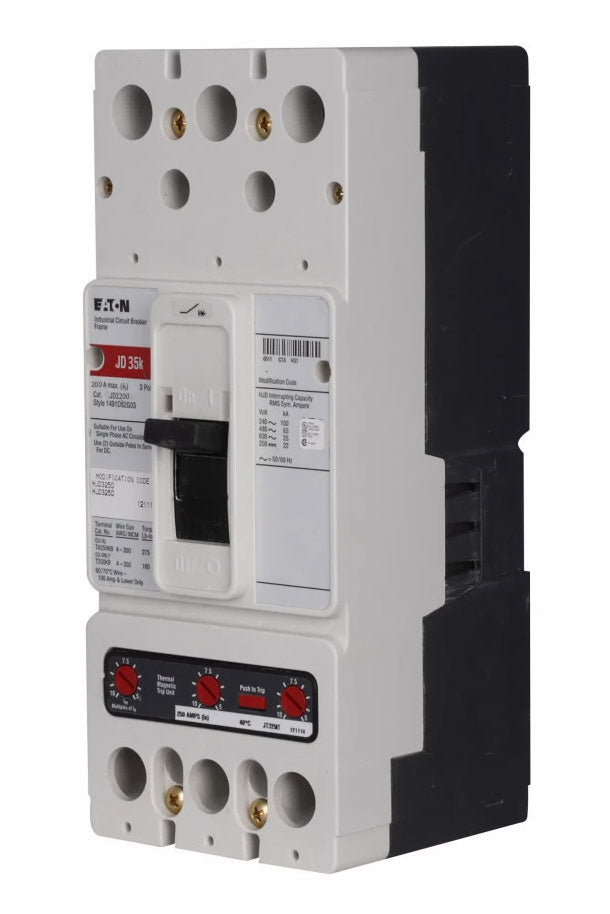

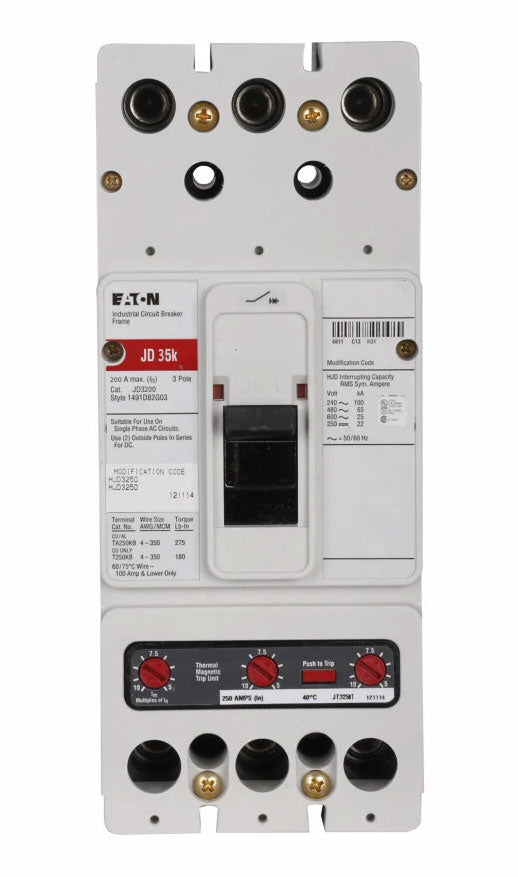

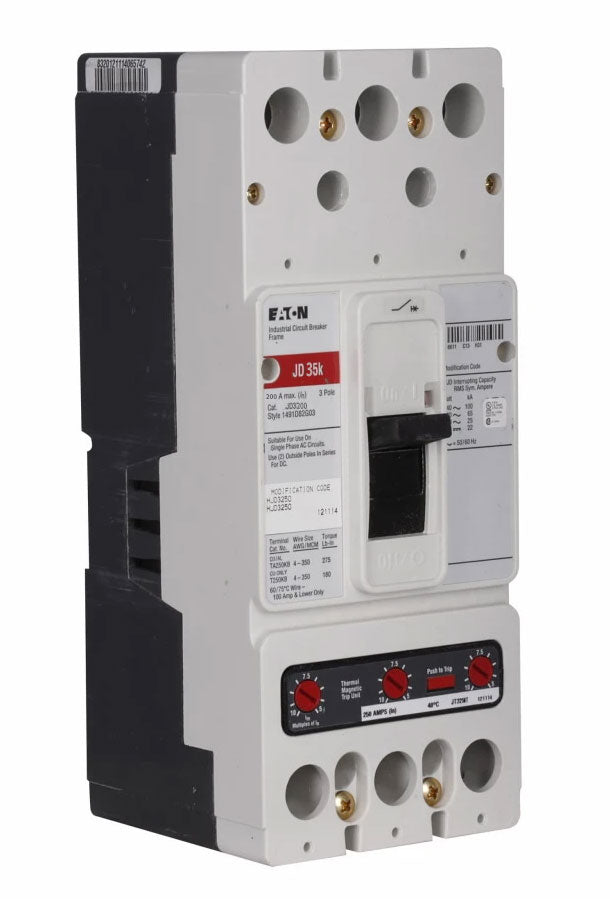

Cutler Hammer JD3200 Circuit Breaker | 200A 600V 3P 35kA Series C

Product Description:
The Cutler Hammer JD3200 is a molded case circuit breaker from the Series C family. It is a 3-pole, 200 amp breaker rated for 600 volts with an AIC rating of 35kA at 480V. This thermal magnetic circuit breaker features a bolt-on connection for secure installation.

Key Features:
✔ Part Number: JD3200
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Trip Units & Programmers
✔ Family: Series C
✔ Type: JD
✔ Voltage: 600
✔ Amperage: 200
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 250A/J
✔ MCM Size: Min. Wire Size 4 AWG Max. Wire Size 350 MCM
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 786679346150
✔ GTIN: 00786679346150
✔ Country of Origin: Dominican Republic
✔ Dimensions: 4.13 in x 4.13 in
✔ Weight: 9.55
✔ Panel Type: Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
✔ Standards: CSA Certified, IEC Rated, UL Listed
✔ Certification: CSA Certified, IEC Rated, UL Listed
