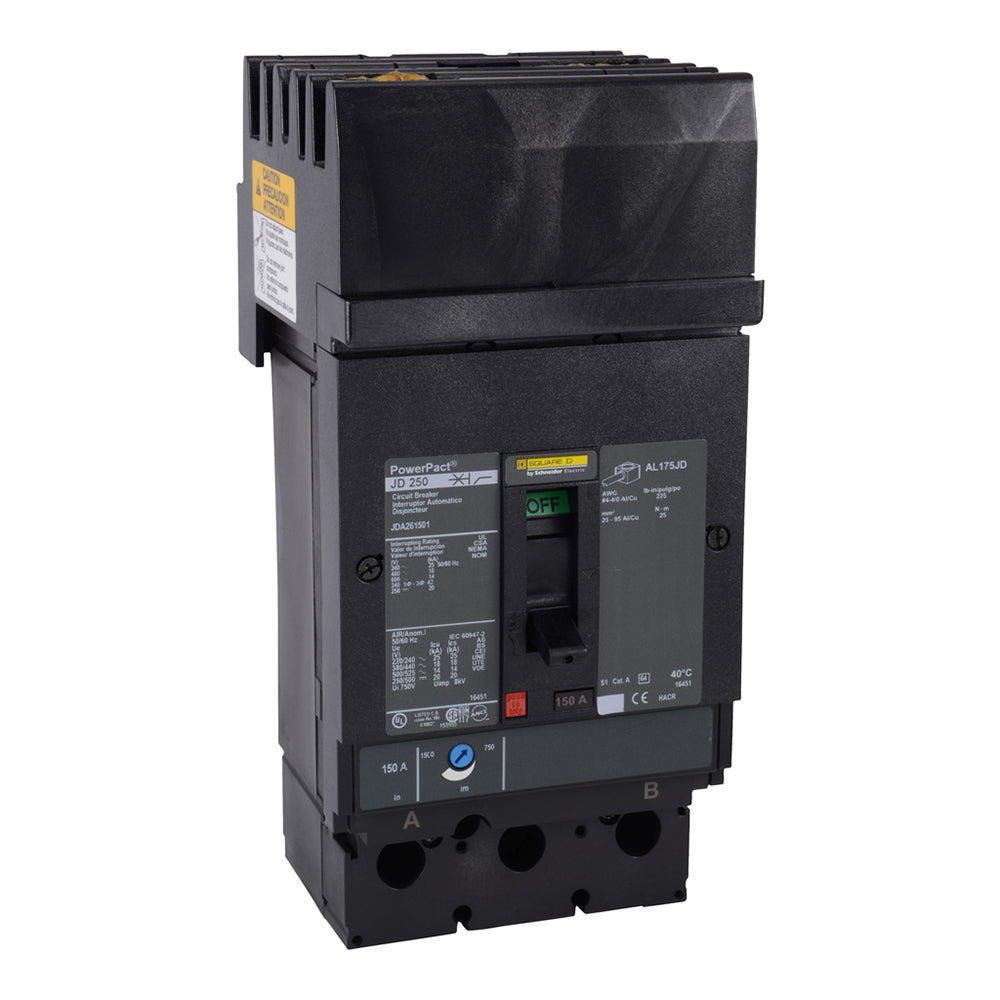

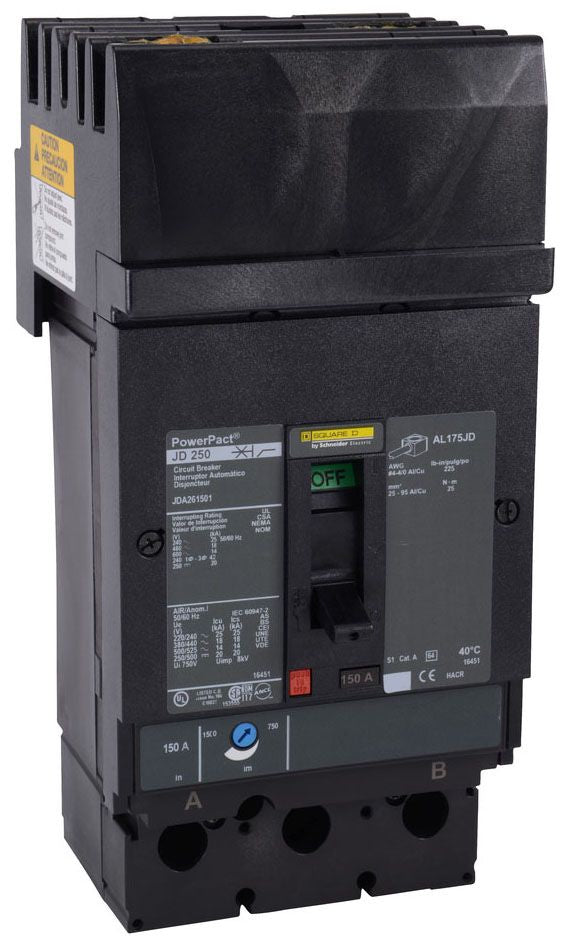

Square D JDA262004 Circuit Breaker | 600V 200A 18kA@480V I-Line Style Plug-In Powerpact

Product Description:
The Square D JDA262004 is a Molded Case Circuit Breaker from the Powerpact family. It features a 600V, 200A rating with an 18kA@480V AIC rating and uses an I-Line Style Plug-In connection. This breaker includes Thermal Magnetic protection for reliable performance. It is designed for industrial and commercial electrical systems.

Key Features:
✔ Part Number: JDA262004
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JDA
✔ Voltage: 600
✔ Amperage: 200
✔ Phase: 1
✔ AIC rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: D
✔ MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: BC
✔ UPC: 785901912408
✔ GTIN: 00785901912408
✔ Country of Origin: United States
✔ Dimensions: 4.09 in x 7.52 in
✔ Weight: 2.89
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
