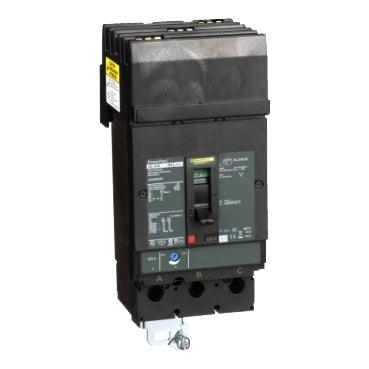

Square D JDA36225SA Circuit Breaker | 600V 225A 3P 18kA@480V I-Line Style Plug-In Powerpact

Product Description:
The Square D JDA36225SA is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 225A rating and an 18kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes Thermal Magnetic protection. It comes complete with a 110-130Vac shunt trip.

Key Features:
✔ Part Number: JDA36225SA
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JDA
✔ Voltage: 600
✔ Amperage: 225
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: J
✔ MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901835721
✔ GTIN: 00785901835721
✔ Country of Origin: United States
✔ Dimensions: 104 mm x 191 mm
✔ Weight: 2.27
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
