Cutler Hammer

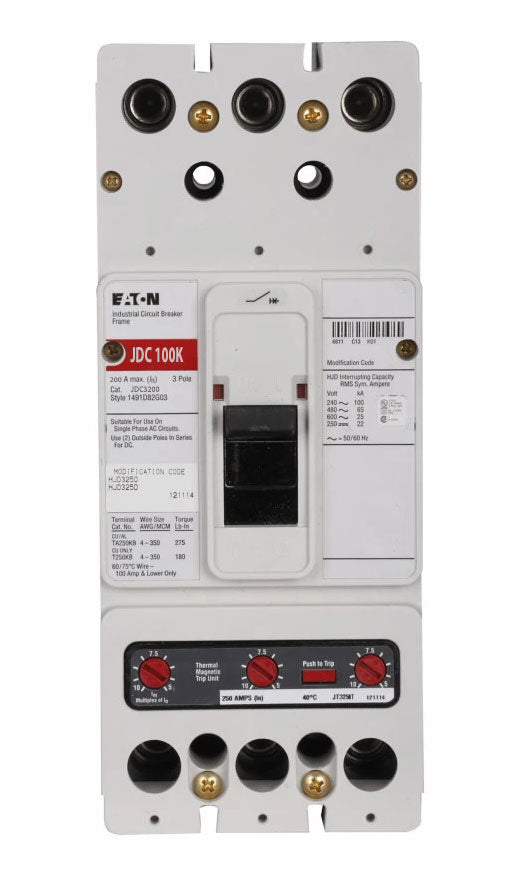

Westinghouse JDC3200 Circuit Breaker | 600V 200A 3P 100kA@480V Feed-Thru Series C
Westinghouse JDC3200 Circuit Breaker | 600V 200A 3P 100kA@480V Feed-Thru Series C
Price:
Sale
Sold out
Regular price
$2,238.74 USD
Regular price
$15,195.60 USD
Sale price
$2,238.74 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 7 left
Couldn't load pickup availability
Product Description:
The Cutler Hammer JDC3200 is a Molded Case Circuit Breaker from the Series C family. It is a 3-pole, 200 amp breaker rated for 600 volts with an AIC rating of 100kA at 480V. This unit features a feed-thru connection and provides thermal magnetic protection for reliable circuit interruption.
Key Features:
✔ Part Number: JDC3200
✔ Manufacturer: Westinghouse
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: JDC
✔ Voltage: 600
✔ Amperage: 200
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 100kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: J Frame
✔ Protection: Thermal Magnetic
✔ UPC: 786679340868
✔ GTIN: 00786679340868
✔ Country of Origin: Dominican Republic
✔ Dimensions: Length 4.06in Height 4.13in Width 4.13in
✔ Weight: 8.3
✔ Certification: UL Listed
