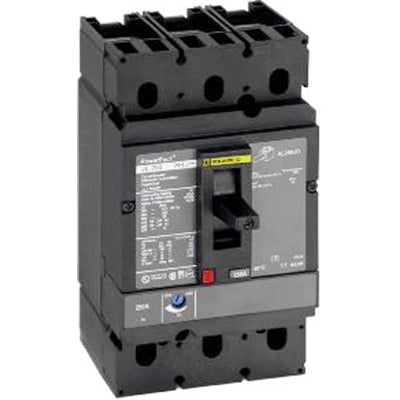

Square D JDL26250 Circuit Breaker | 600V 250A 2P 18kA@480V Bolt-On Powerpact

Product Description:
The Square D JDL26250 is a Molded Case Circuit Breaker from the Powerpact family. It features 2 poles, 600V voltage, and a 250A amperage rating with an 18kA@480V AIC rating. This thermal magnetic circuit breaker uses a bolt-on connection and is designed for reliable performance.

Key Features:
✔ Part Number: JDL26250
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JDL
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 250A/JD
✔ MCM Size: Min. Wire Size 3/0 AWG Max. Wire Size 300 MCM
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: Not Applicable
✔ UPC: 785901839880
✔ GTIN: 00785901839880
✔ Country of Origin: Mexico
✔ Dimensions: 2.74 in x 7.52 in
✔ Weight: 2.14
✔ Standards: BS, CCC, CE Marked, CEI, CSA Certified, Federal Specification W-C-375B/GEN, HACR, HID, IEC, NEMA, NMX, NOM, SWD, UL Listed, UNE, UTE, VDE
✔ Certification: BS, CCC, CE Marked, CEI, CSA Certified, Federal Specification W-C-375B/GEN, HACR, HID, IEC, NEMA, NMX, NOM, SWD, UL Listed, UNE, UTE, VDE
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
