Square D JDL36175 Circuit Breaker | Powerpact JDL 600V 175A

Product Description:

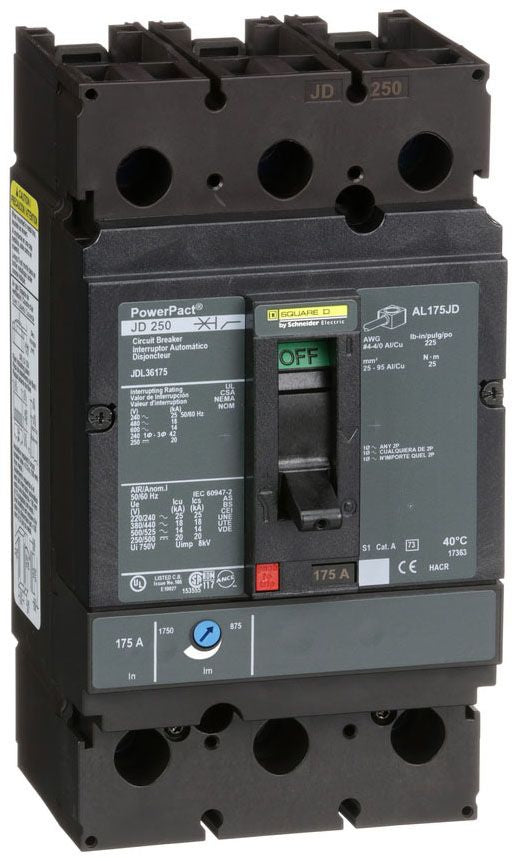

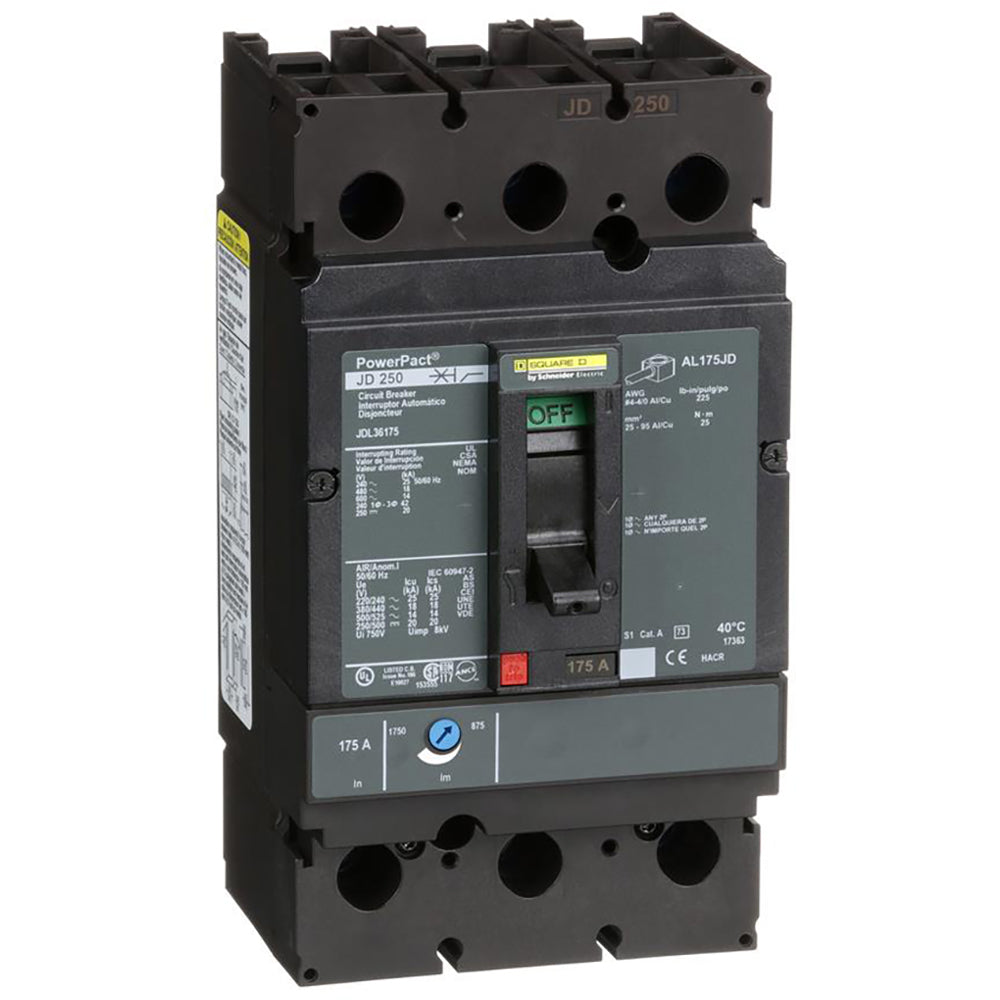

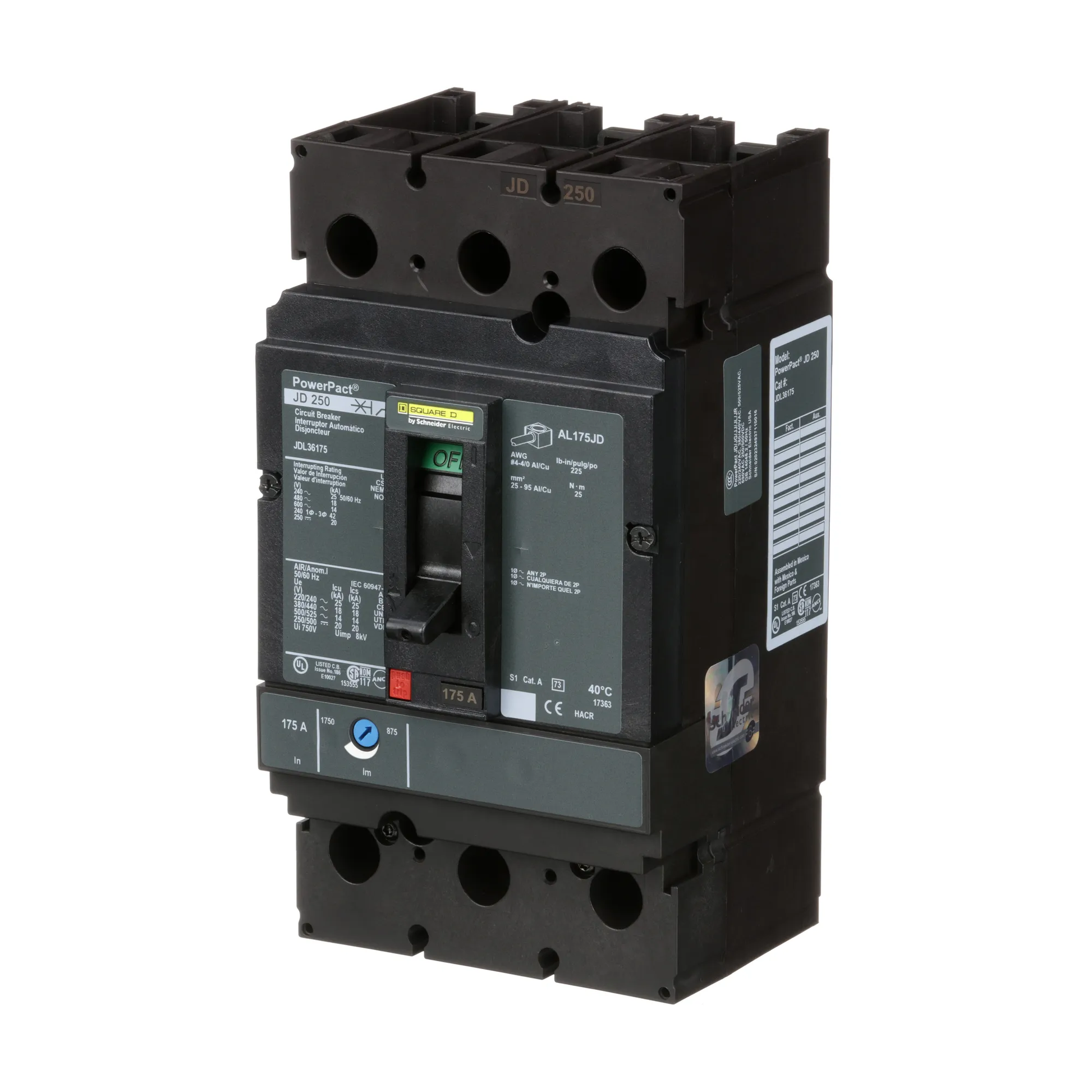

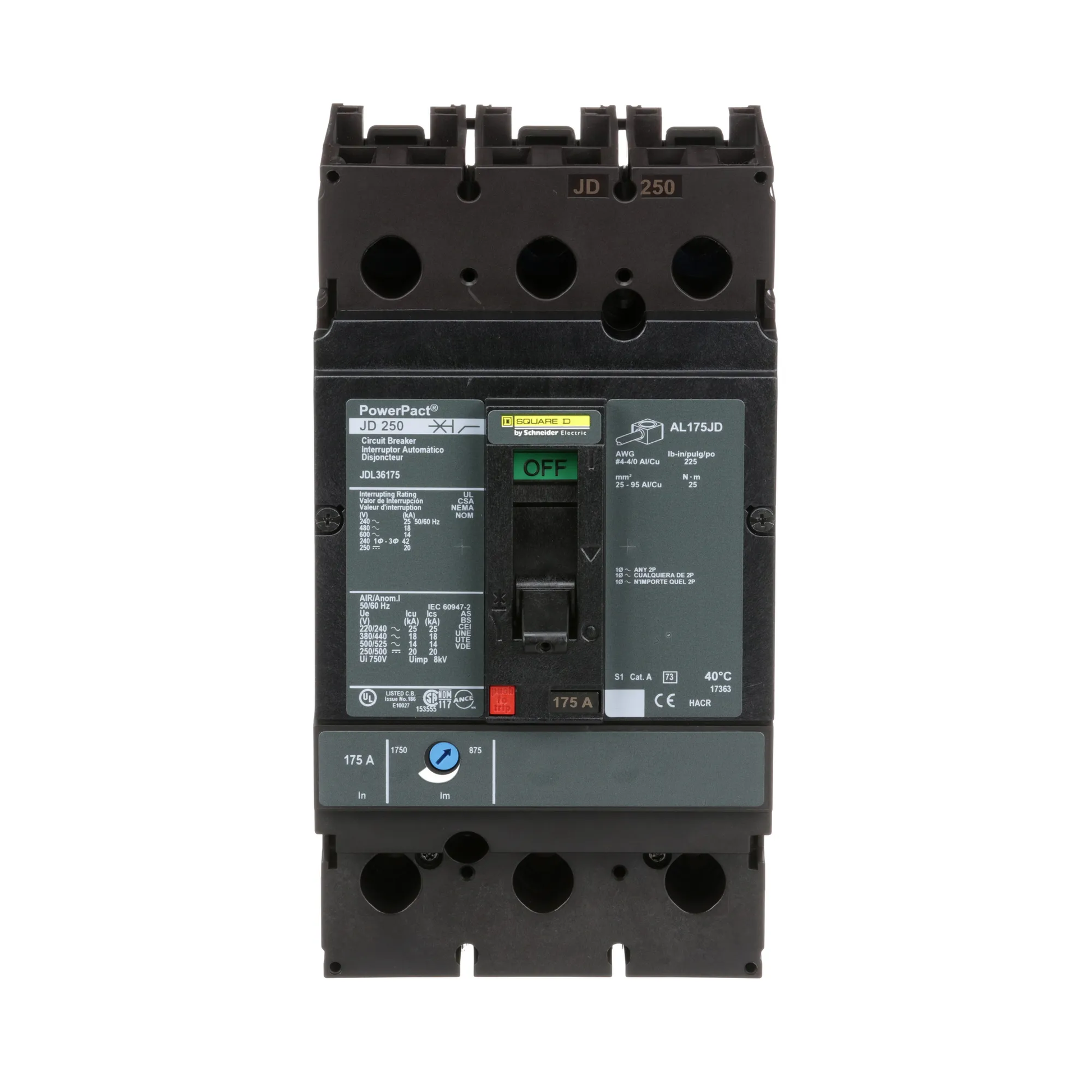

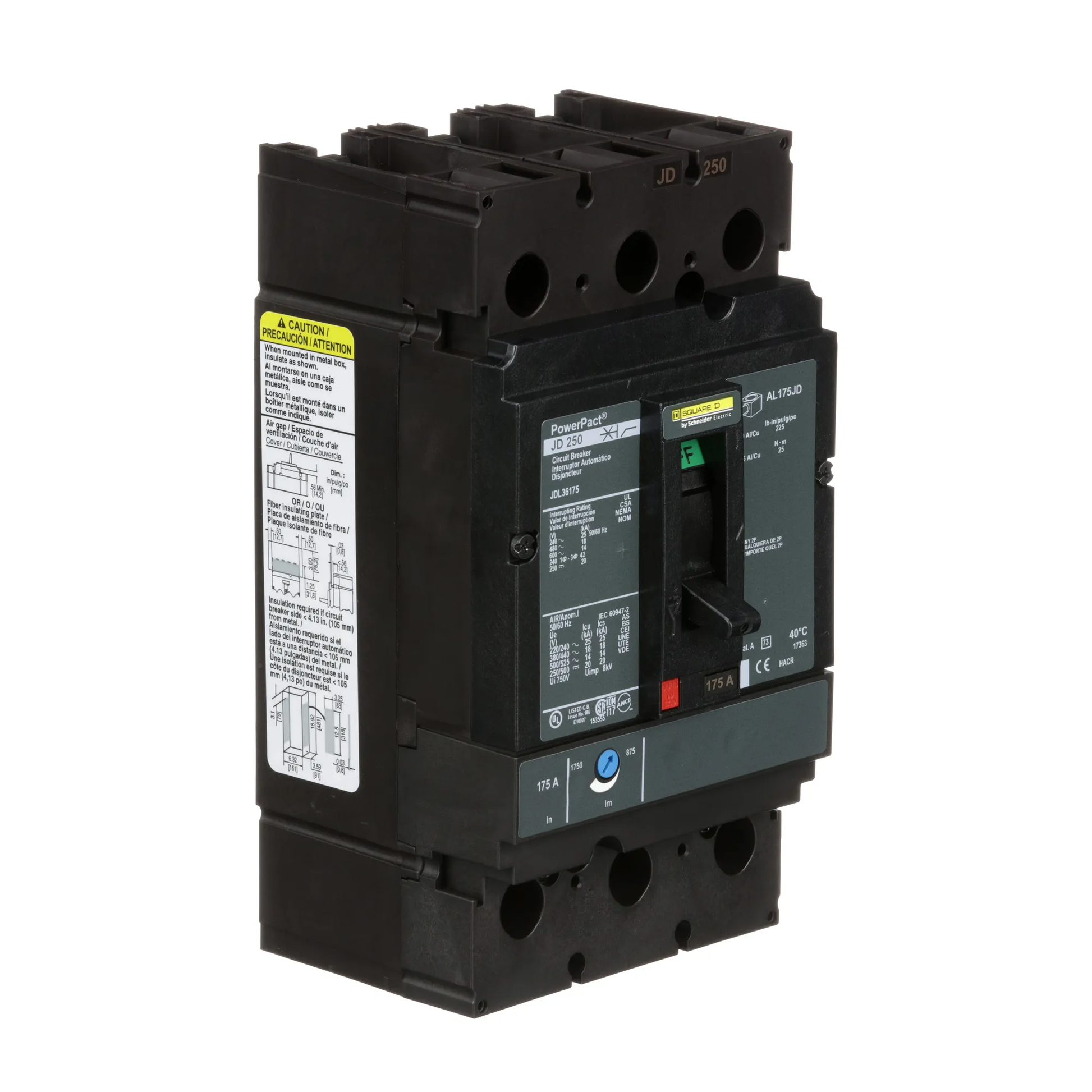

The Square D JDL36175 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 175A rating and an 18kA@480V AIC rating. This breaker uses a Bolt-On connection and includes Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: JDL36175
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JDL
✔ Voltage: 600V
✔ Amperage: 175A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 250A/JD
✔ MCM Size: Min. Wire Size 3 AWG, Max. Wire Size 350 MCM
✔ Breaker Type: Standard
✔ Temp Rating: 28-158°F (-2-70°C)
✔ Wire Size: AWG 4...AWG 4/0 aluminum/copper terminal
