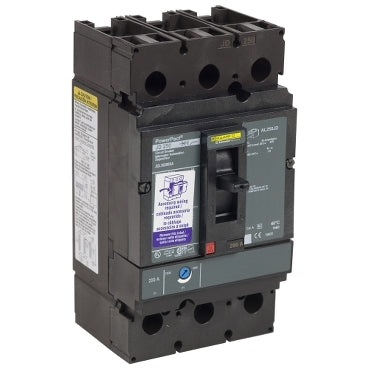

Square D JDL36250SA Circuit Breaker | 600V 250A 3P 18kA@480V Feed-Thru Powerpact

Product Description:
The Square D JDL36250SA is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 250A rating and an 18kA@480V AIC rating. This circuit breaker includes thermal magnetic protection and a feed-thru connection. It comes complete with a 110/130Vac shunt trip.

Key Features:
✔ Part Number: JDL36250SA
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JDL
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: J
✔ MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901946847
✔ GTIN: 00785901946847
✔ Country of Origin: United States
✔ Dimensions: 104 mm x 191 mm
✔ Weight: 2.27
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
