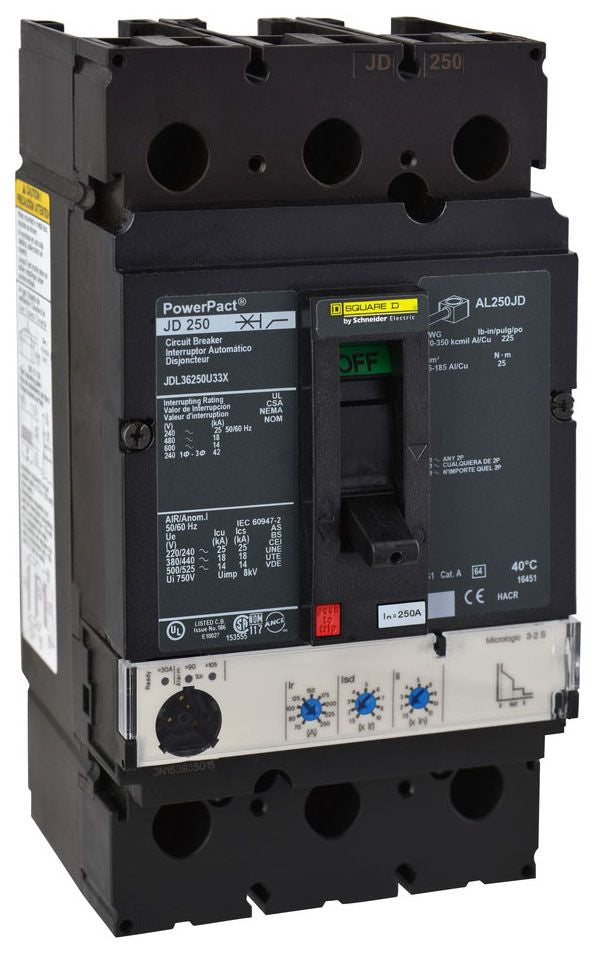

Square D JDL36250U33X Circuit Breaker | 600V 250A 3P 18kA@480V Feed-Thru Powerpact
Square D JDL36250U33X Circuit Breaker | 600V 250A 3P 18kA@480V Feed-Thru Powerpact
Price:
Sale
Sold out
Regular price
$1,472.24 USD
Regular price
$3,221.00 USD
Sale price
$1,472.24 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 1 left
Couldn't load pickup availability
Product Description:
The Square D JDL36250U33X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 250A rating and an 18kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes solid-state protection for reliable performance. It is suitable for industrial and commercial electrical systems. Key Features:
✔ Part Number: JDL36250U33X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JDL
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Functions: LSI - Long-Time, Short-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: J
✔ MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
✔ Protection: Solid State
✔ Phase Connection: ABC
✔ UPC: 785901965404
✔ GTIN: 00785901965404
✔ Country of Origin: Mexico
✔ Dimensions: 4.12 in x 7.52 in
✔ Weight: 2.36
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
