Product Description:

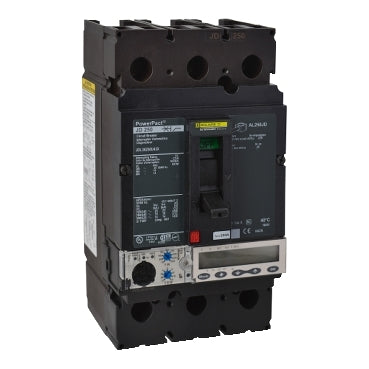

The Square D JDL36250U43X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 250A rating and an 18kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes solid-state protection for reliable performance. It is designed for industrial and commercial electrical systems.
Key Features:
✔ Part Number: JDL36250U43X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JDL
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Functions: LSI - Long-Time, Short-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: J
✔ Wire Size: Min. 3/0 AWG (Cu/Al), Max. 350 kcmil (Cu/Al)
✔ Protection: Solid State
✔ Phase Connection: ABC
✔ UPC: 785901497059
✔ GTIN: 00785901497059
✔ Country of Origin: United States
✔ Dimensions: 4.12 in x 7.52 in
✔ Weight: 2.36
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
