Square D JDL36250U53X Circuit Breaker | Powerpact JDL 600V 250A

Product Description:

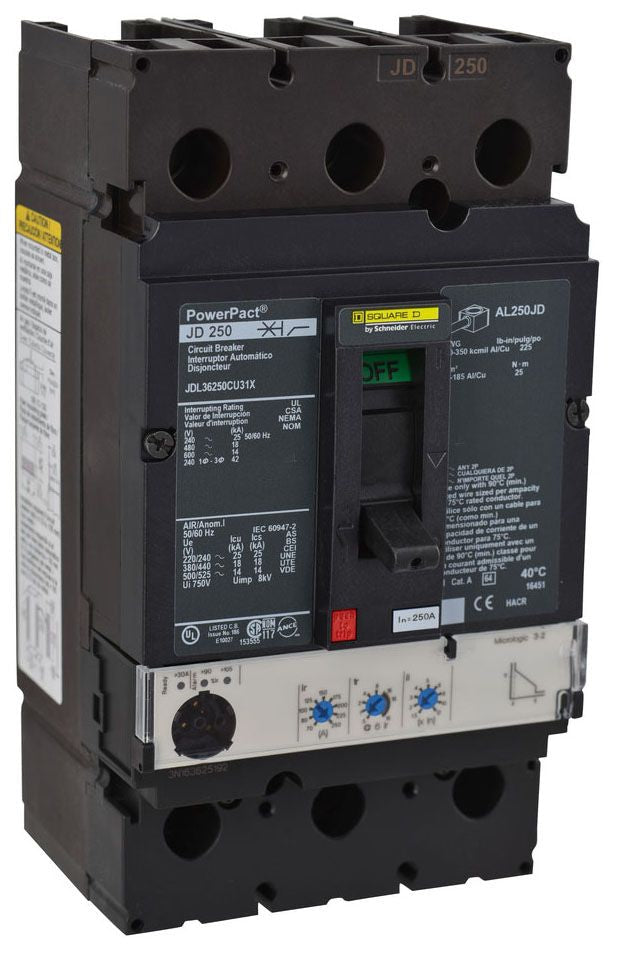

The Square D JDL36250U53X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 250A rating and an 18kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes solid-state protection for reliable performance.

Key Features:
✔ Part Number: JDL36250U53X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JDL
✔ Voltage: 600V
✔ Amperage: 250A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Functions: LSI (Long-Time, Short-Time, Instantaneous)
✔ Frame Size: J Frame
✔ Protection: Solid State

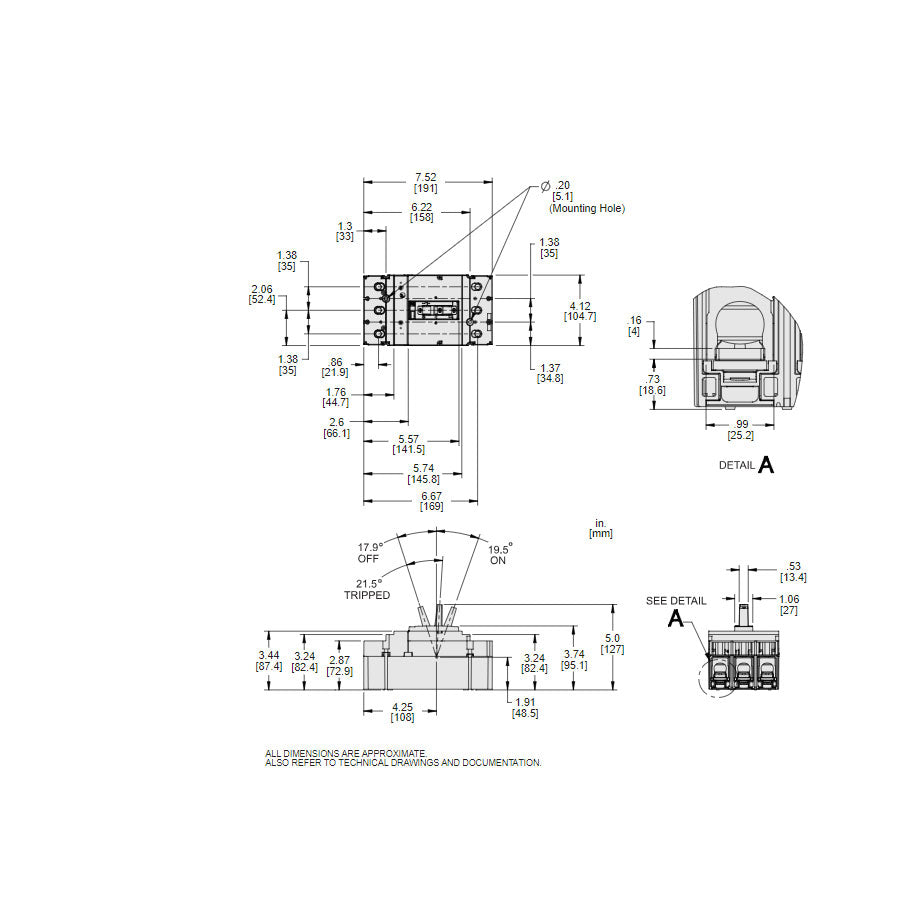

✔ Dimensions: 7.52" H x 5.38" D x 5.64" W
✔ Weight: 5 lbs
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
