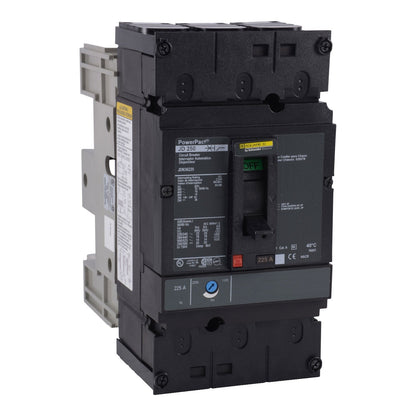

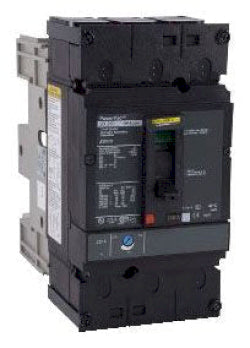

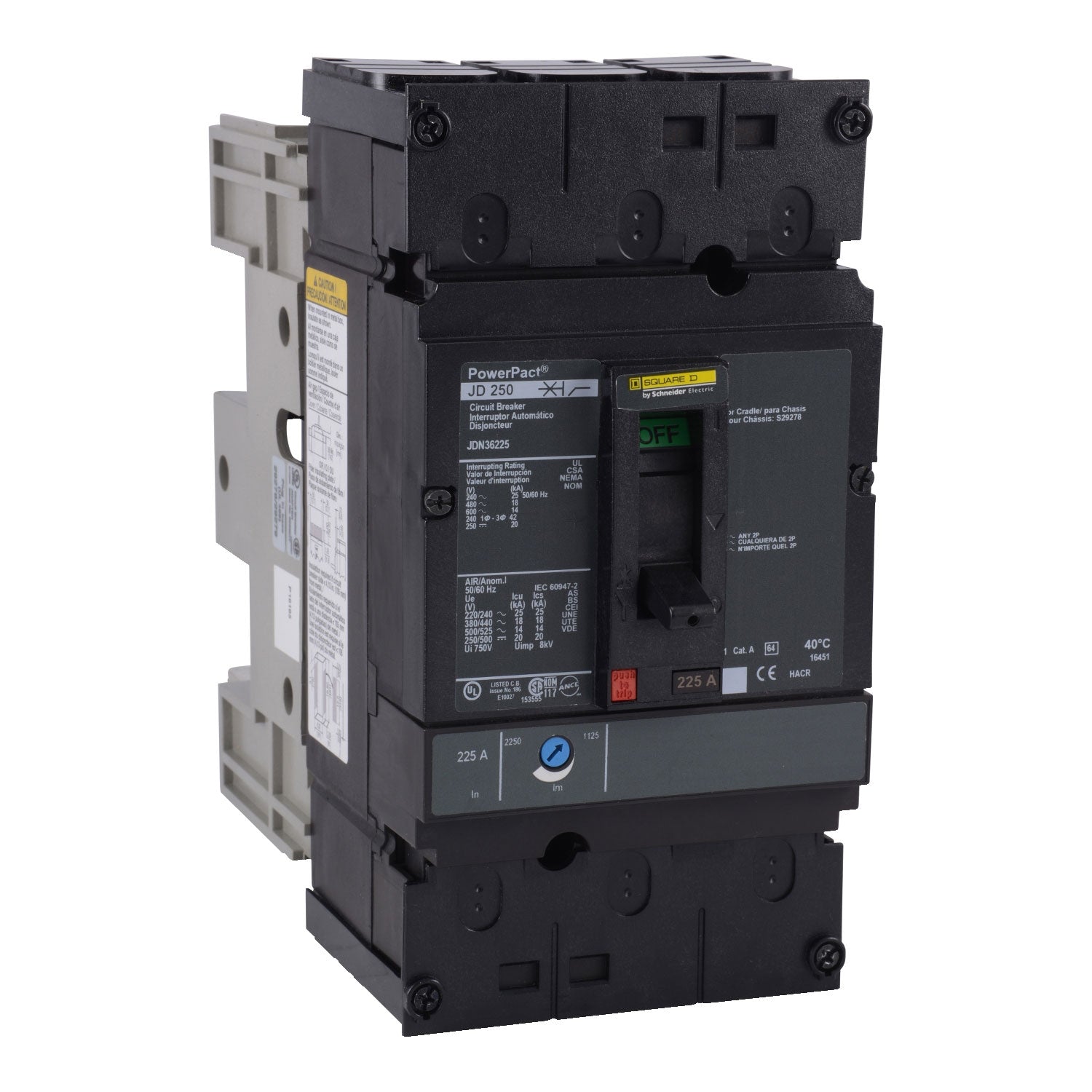

Square D JDN36225 Circuit Breaker | 600V 225A 3P 18kA@480V Plug-In Powerpact

Product Description:
The Square D JDN36225 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 225A rating and an AIC rating of 18kA@480V. This breaker uses a Plug-In connection and offers Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: JDN36225
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JDN
✔ Voltage: 600
✔ Amperage: 225
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Plug-In
✔ Frame Size: J
✔ MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901448891
✔ GTIN: 00785901448891
✔ Country of Origin: United States
✔ Dimensions: 4.12 in x 8 in
✔ Weight: 3.51
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
