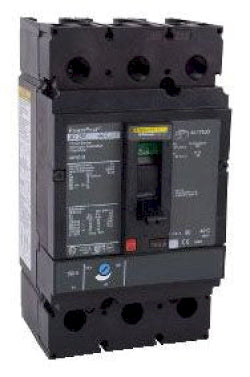

Square D JDP36250 Circuit Breaker | 600V 250A 3P 18kA@480V Bolt-On Powerpact
Square D JDP36250 Circuit Breaker | 600V 250A 3P 18kA@480V Bolt-On Powerpact
Price:
Sale
Sold out
Regular price
$2,245.85 USD
Regular price
$3,749.00 USD
Sale price
$2,245.85 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 3 left
Couldn't load pickup availability
Product Description:
The Square D JDP36250 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 250A rating and an 18kA@480V AIC rating. This breaker uses a Bolt-On connection and offers Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: JDP36250
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JDP
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug, Terminal Nut
✔ Frame Size: J
✔ MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901947158
✔ GTIN: 00785901947158
✔ Country of Origin: Mexico
✔ Dimensions: 4.09 in x 7.52 in
✔ Weight: 2.2
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
The Square D JDP36250 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 250A rating and an 18kA@480V AIC rating. This breaker uses a Bolt-On connection and offers Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: JDP36250
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JDP
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug, Terminal Nut
✔ Frame Size: J
✔ MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901947158
✔ GTIN: 00785901947158
✔ Country of Origin: Mexico
✔ Dimensions: 4.09 in x 7.52 in
✔ Weight: 2.2
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
