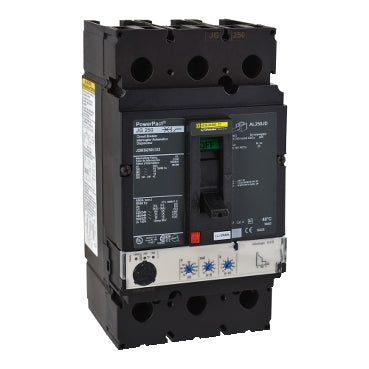

Square D JDP36250U31X Circuit Breaker | 600V 250A 3P 18kA@480V Bolt-On Powerpact

Product Description:
The Square D JDP36250U31X is a Molded Case Circuit Breaker from the Powerpact family. This 3-pole breaker is rated for 600V and 250A, with an AIC rating of 18kA@480V. It features Bolt-On connections and solid-state protection for reliable performance.

Key Features:
✔ Part Number: JDP36250U31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JDL
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: J Frame
✔ Protection: Solid State
✔ UPC: 060648628322
✔ GTIN: 03606486283226
✔ Dimensions: Depth 3.39 in (86 mm) Width 4.09 in (104 mm) Height 7.52 in (191 mm)
✔ Weight: 3.63
✔ Certification: UL
