Square D JGA262251 Circuit Breaker | 600V 225A 2P 35kA@480V I-Line Style Plug-In Powerpact

Product Description:

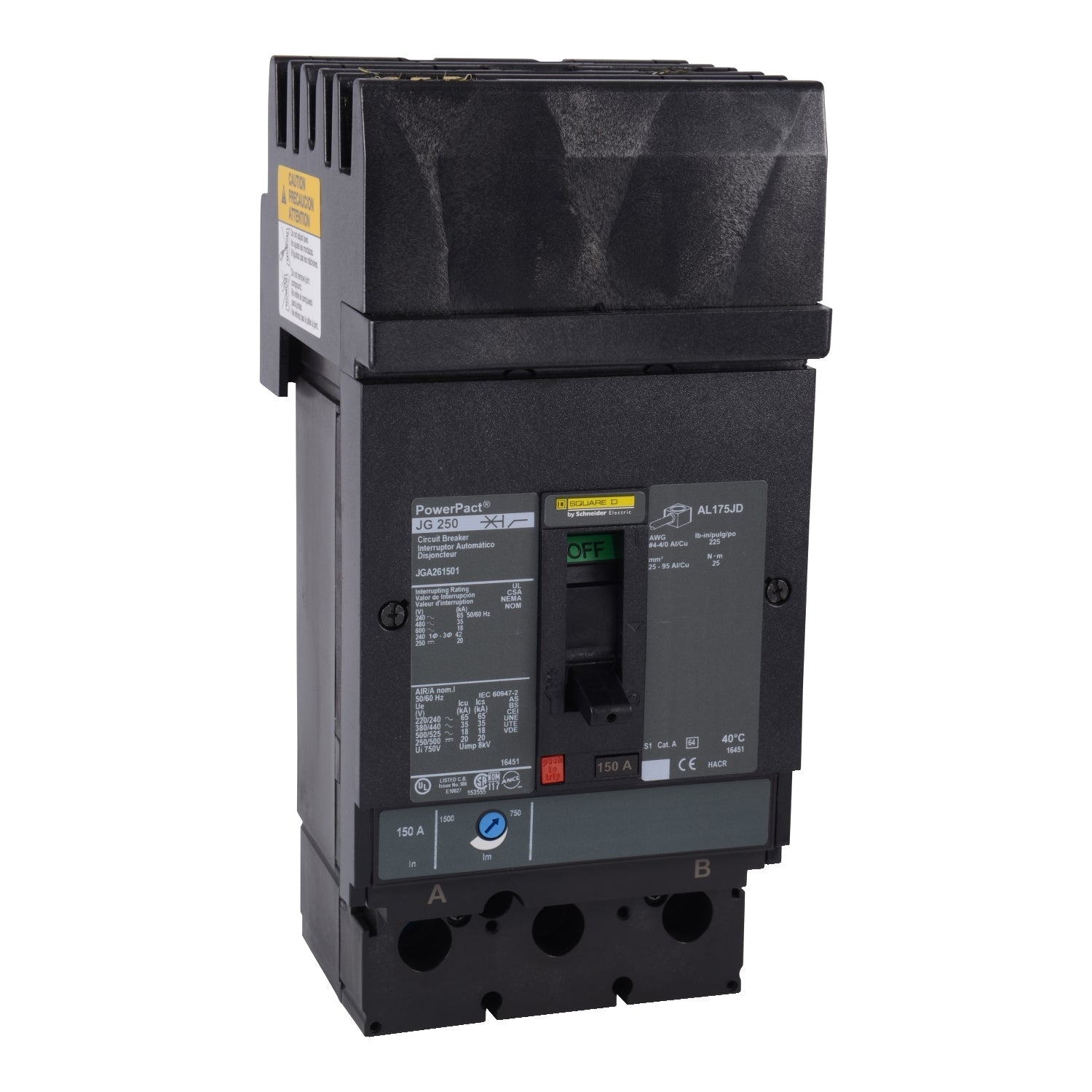

The Square D JGA262251 is a Molded Case Circuit Breaker from the Powerpact family. It features a 2-pole design with a 600V, 225A rating and 35kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and offers Thermal Magnetic protection. It is designed for use in I-Line Panelboards and meets multiple industry standards.

Key Features:
✔ Part Number: JGA262251
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JGA
✔ Voltage: 600
✔ Amperage: 225
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 35kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 250A/JG
✔ MCM Size: Min. Wire Size 3/0 AWG Max. Wire Size 300 MCM
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: AB
✔ UPC: 785901511687
✔ GTIN: 00785901511687
✔ Country of Origin: United States
✔ Dimensions: 2.74 in x 7.52 in
✔ Weight: 2.04
✔ Panel Type: I Line Panelboards
✔ Standards: BS, CCC, CE Marked, CEI, CSA Certified, Federal Specification W-C-375B/GEN, HACR, HID, IEC, NEMA, NMX, NOM, SWD, UL Listed, UNE, UTE, VDE
✔ Certification: BS, CCC, CE Marked, CEI, CSA Certified, Federal Specification W-C-375B/GEN, HACR, HID, IEC, NEMA, NMX, NOM, SWD, UL Listed, UNE, UTE, VDE
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
