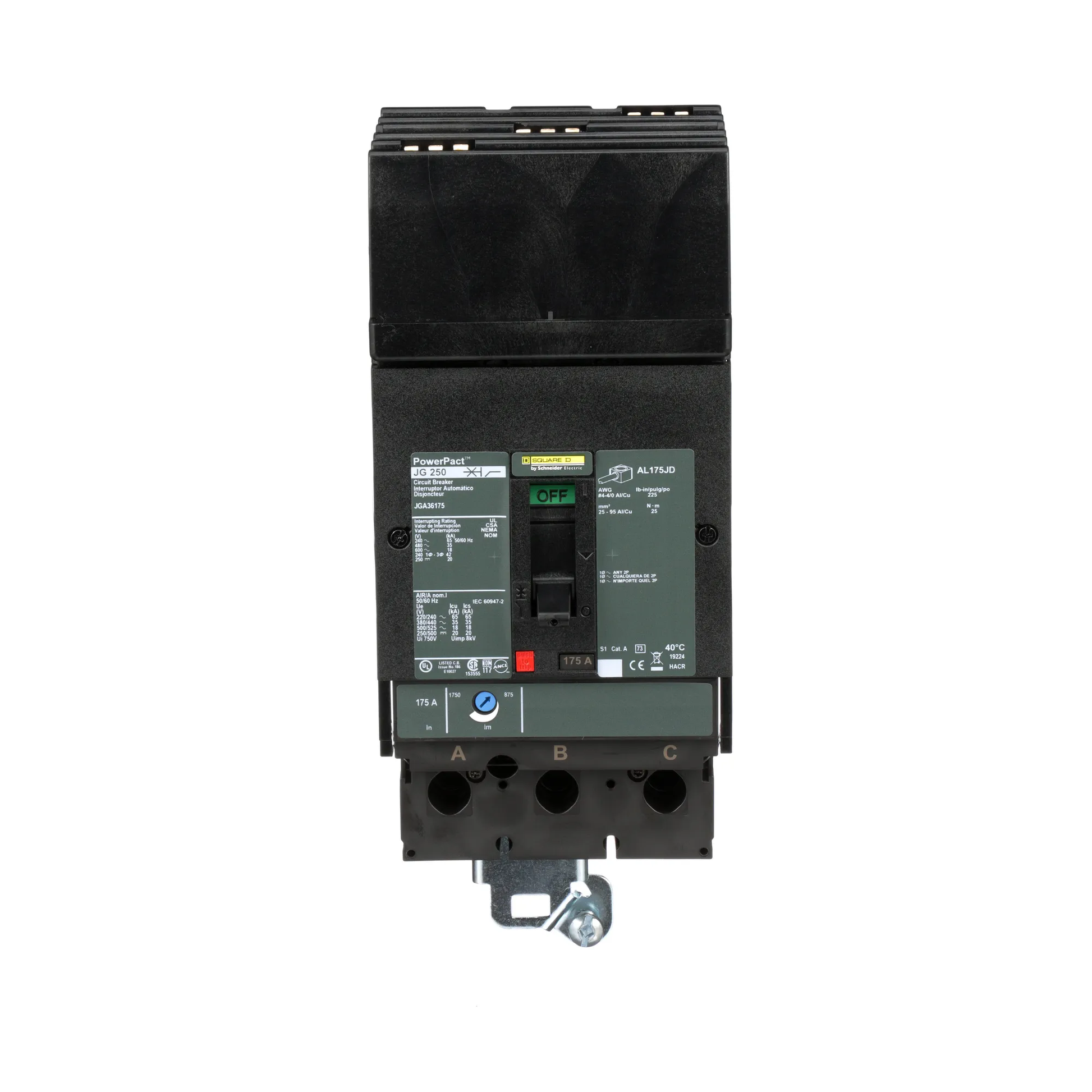

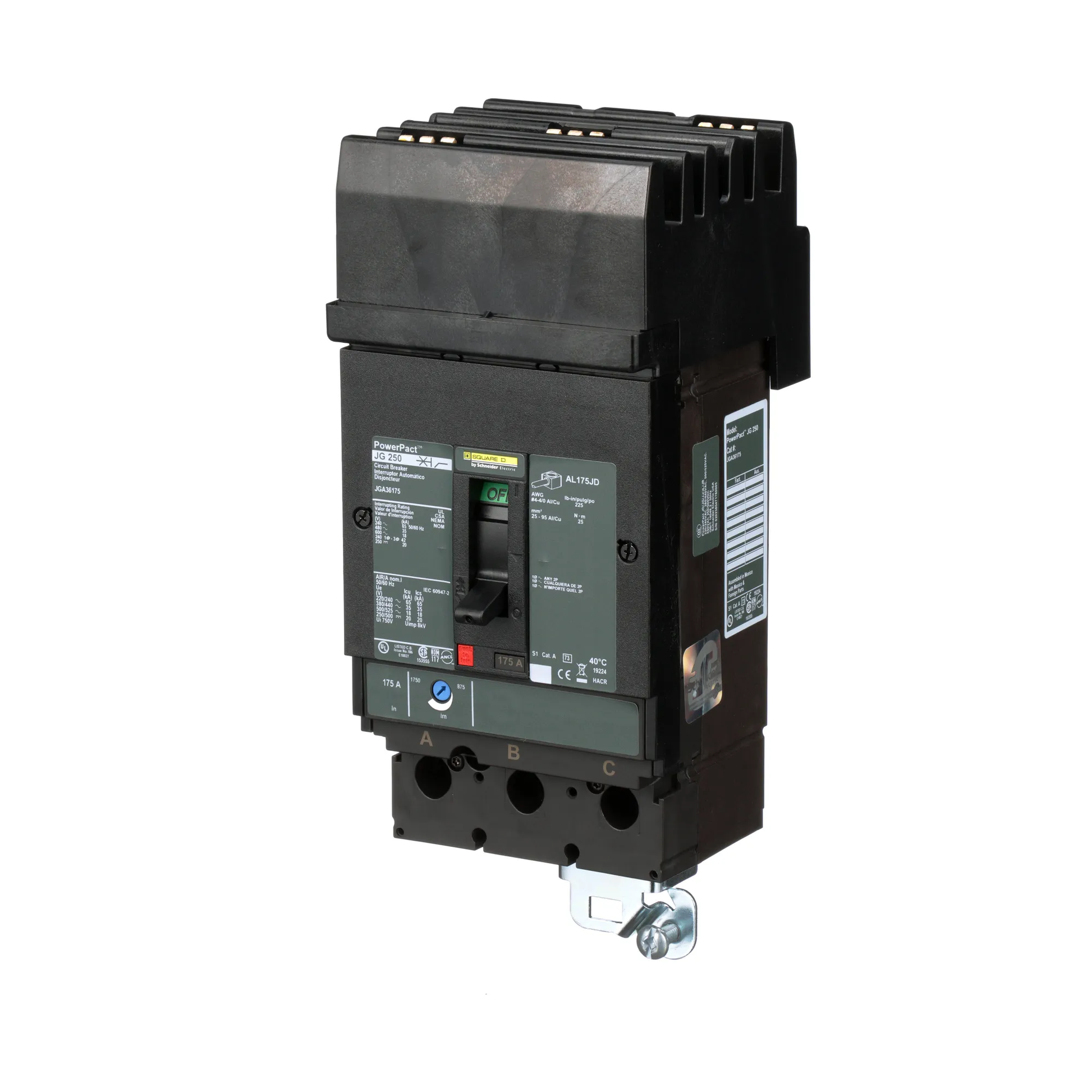

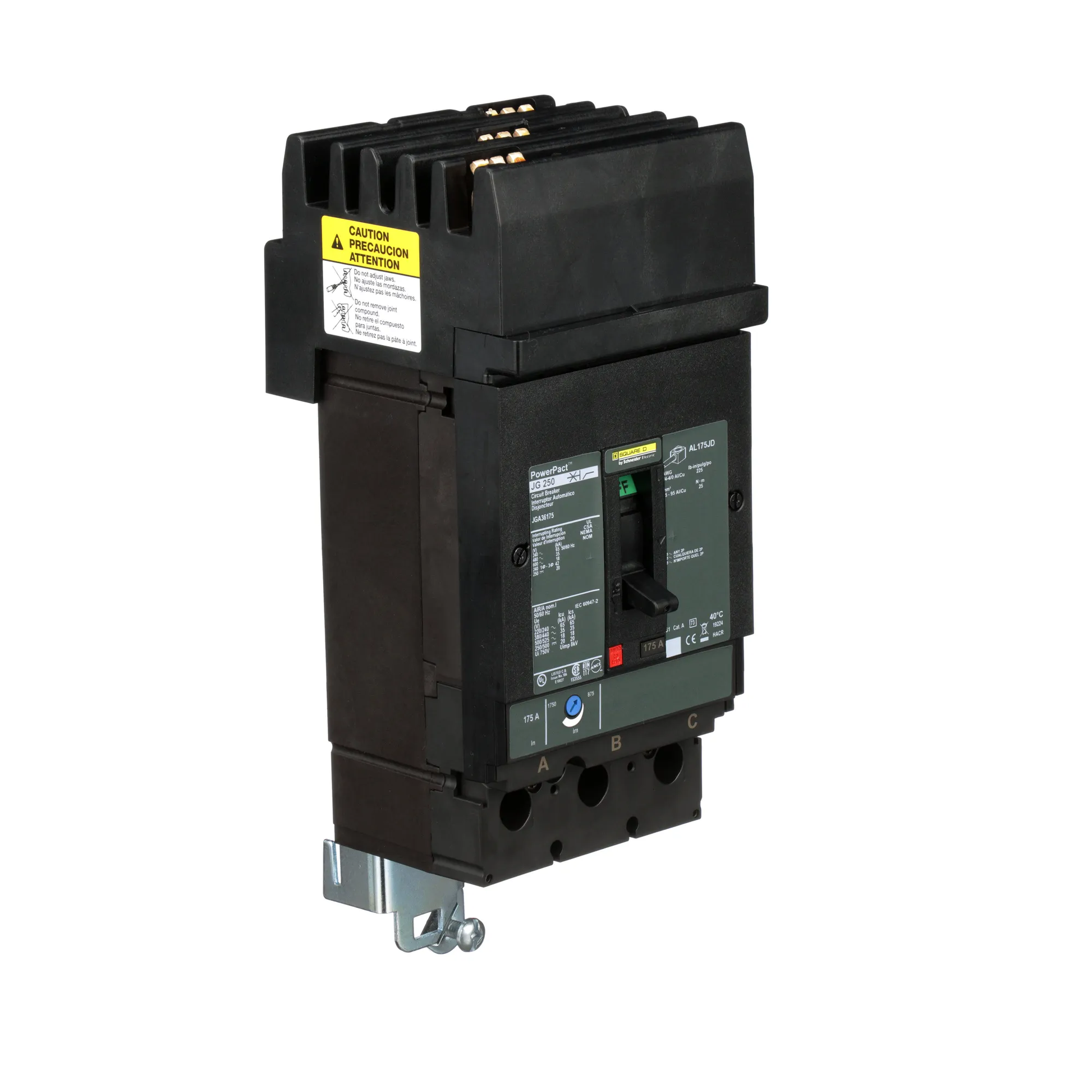

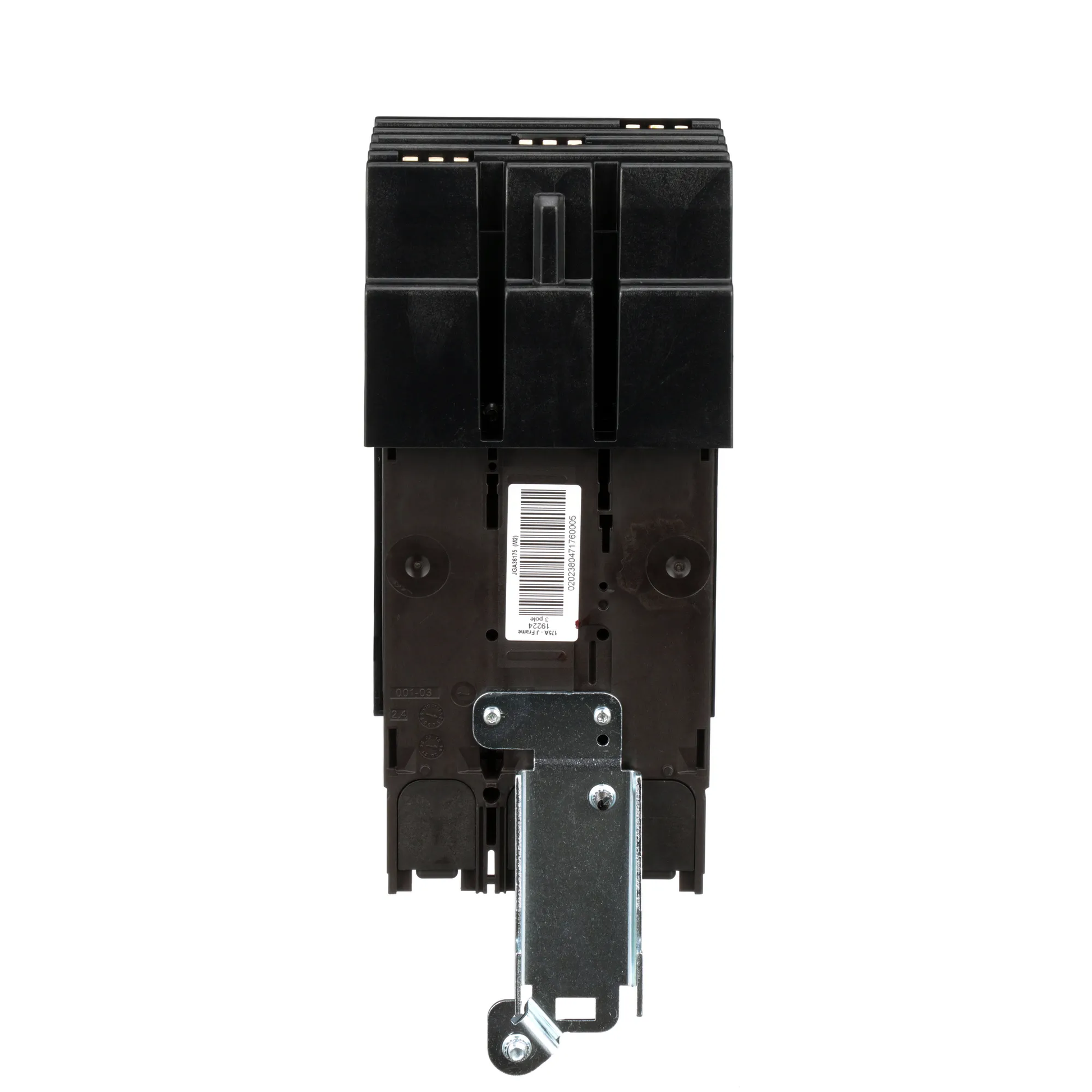

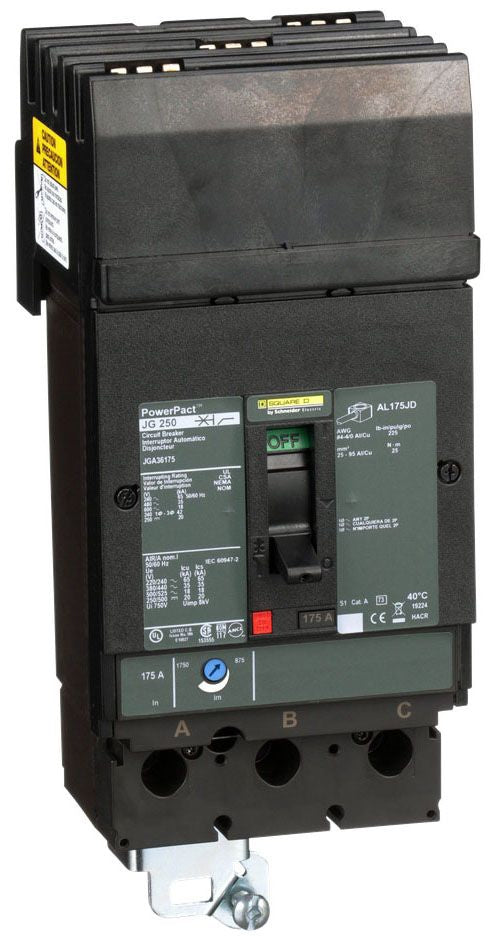

Square D JGA36175 Circuit Breaker | 600V 175A 3P 35kA@480V Plug In Panelboard Powerpact JGA

Product Description:
The Square D JGA36175 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 175 amp breaker rated for 600 Volts with an AIC rating of 35kA at 480V. This Plug In Panelboard breaker provides Thermal Magnetic protection for reliable circuit interruption.

Key Features:
✔ Part Number: JGA36175
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JGA
✔ Voltage: 600
✔ Amperage: 175
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Plug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 250A/JG
✔ MCM Size: Min. Wire Size 4 AWG Max. Wire Size 4 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901700685
✔ GTIN: 00785901700685
✔ Country of Origin: Mexico

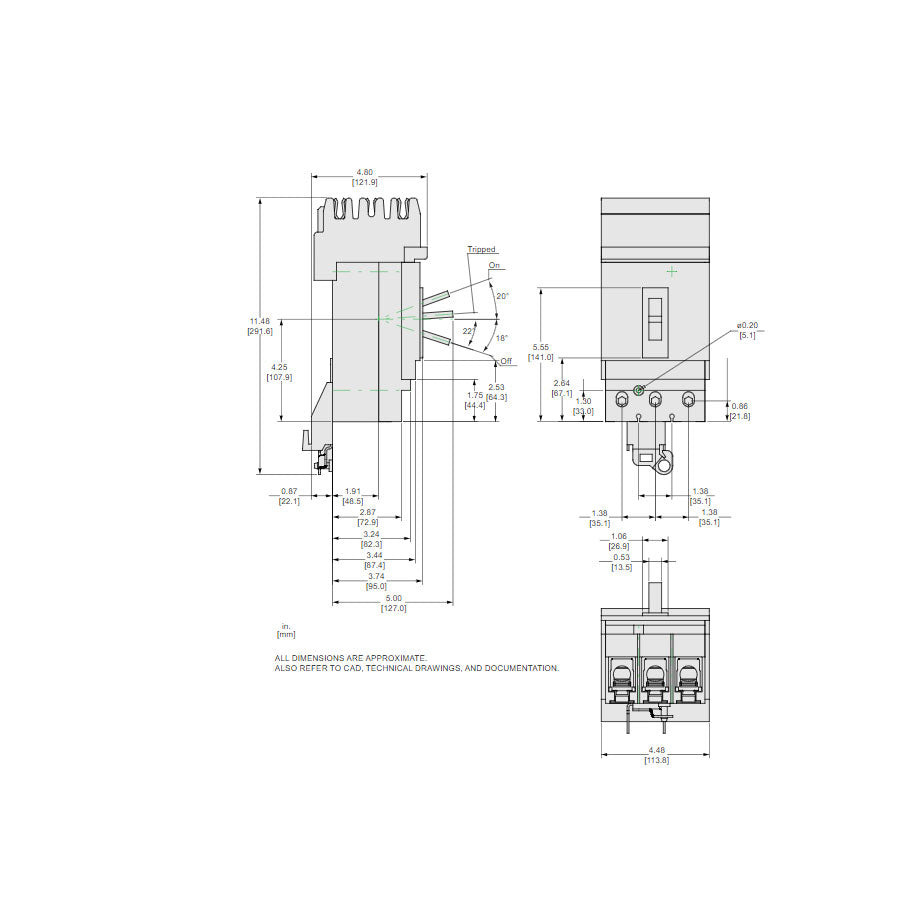

✔ Dimensions: 4.12 in x 7.52 in
✔ Weight: 3.05 lb
✔ Panel Type: I Line Panelboards
✔ Standards: CCC, CE, CSA, IEC, NMX, UL Listed
✔ Certification: CCC, CE, CSA, IEC, NMX, UL Listed
✔ Wire Size: AWG 4...AWG 4/0 aluminum/copper terminal
