Square D

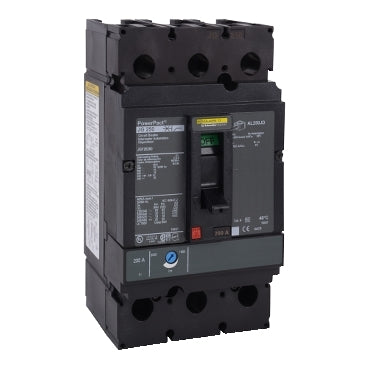

Square D JGF26175 Circuit Breaker | 600V 175A 2P 35kA@480V Bolt-On Powerpact JGF
Square D JGF26175 Circuit Breaker | 600V 175A 2P 35kA@480V Bolt-On Powerpact JGF
Price:
Sale
Sold out
Regular price
$2,823.76 USD
Regular price
$0.00 USD
Sale price
$2,823.76 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D JGF26175 is a Molded Case Circuit Breaker from the Powerpact family. This 2-pole breaker is rated for 600V and 175A, with a 35kA@480V AIC rating. It features Bolt-On connections and Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: JGF26175
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JGF
✔ Voltage: 600
✔ Amperage: 175
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: J Frame
✔ Protection: Thermal Magnetic
✔ Dimensions: Height 7.52 in (191 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 5
✔ Wire Size: AWG 4...AWG 4/0 aluminum/copper terminal
The Square D JGF26175 is a Molded Case Circuit Breaker from the Powerpact family. This 2-pole breaker is rated for 600V and 175A, with a 35kA@480V AIC rating. It features Bolt-On connections and Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: JGF26175
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JGF
✔ Voltage: 600
✔ Amperage: 175
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: J Frame
✔ Protection: Thermal Magnetic
✔ Dimensions: Height 7.52 in (191 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 5
✔ Wire Size: AWG 4...AWG 4/0 aluminum/copper terminal
