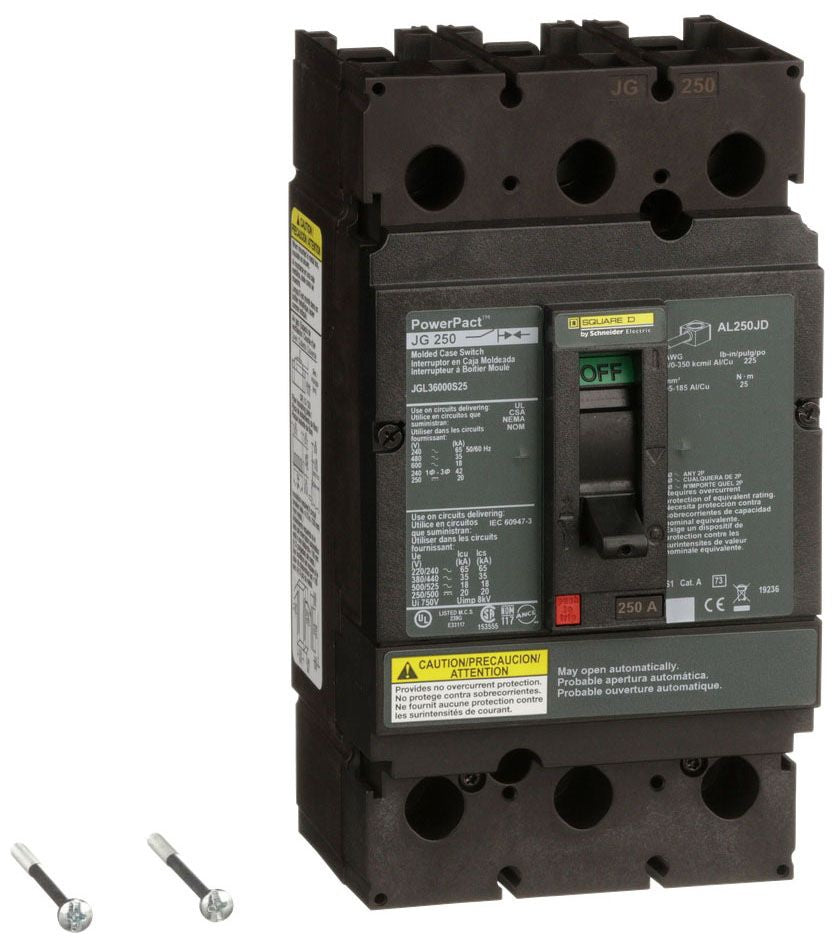

Square D JGL36000S25 Molded Case Circuit Breaker | 600V 250A 3P 35kA@480V Feed-Thru Powerpact
Square D JGL36000S25 Molded Case Circuit Breaker | 600V 250A 3P 35kA@480V Feed-Thru Powerpact
Price:
Sale
Sold out
Regular price
$1,871.59 USD
Regular price
$2,286.00 USD
Sale price
$1,871.59 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D JGL36000S25 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole breaker rated for 600 Volts and 250 amps, with an AIC rating of 35kA at 480V. This model features a Feed-Thru connection and provides Non-Automatic protection. It is designed for use in I-Line Panelboards and meets multiple industry standards.
Key Features:
✔ Part Number: JGL36000S25
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JGL
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: NA - No Overcurrent Protection
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 250A/JG
✔ Wire Size: Min. 3 AWG, Max. 350 MCM
✔ Breaker Type: Shunt Trip
✔ Protection: Non-Automatic
✔ Phase Connection: ABC
✔ UPC: 785901598862
✔ GTIN: 00785901598862
✔ Country of Origin: Mexico
✔ Dimensions: 4.12 in x 7.52 in
✔ Weight: 2.2
✔ Panel Type: I Line Panelboards
✔ Standards: CCC, CE, CSA, IEC, UL Listed
✔ Certification: CCC, CE, CSA, IEC, UL Listed
The Square D JGL36000S25 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole breaker rated for 600 Volts and 250 amps, with an AIC rating of 35kA at 480V. This model features a Feed-Thru connection and provides Non-Automatic protection. It is designed for use in I-Line Panelboards and meets multiple industry standards.
Key Features:
✔ Part Number: JGL36000S25
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JGL
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: NA - No Overcurrent Protection
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 250A/JG
✔ Wire Size: Min. 3 AWG, Max. 350 MCM
✔ Breaker Type: Shunt Trip
✔ Protection: Non-Automatic
✔ Phase Connection: ABC
✔ UPC: 785901598862
✔ GTIN: 00785901598862
✔ Country of Origin: Mexico
✔ Dimensions: 4.12 in x 7.52 in
✔ Weight: 2.2
✔ Panel Type: I Line Panelboards
✔ Standards: CCC, CE, CSA, IEC, UL Listed
✔ Certification: CCC, CE, CSA, IEC, UL Listed
