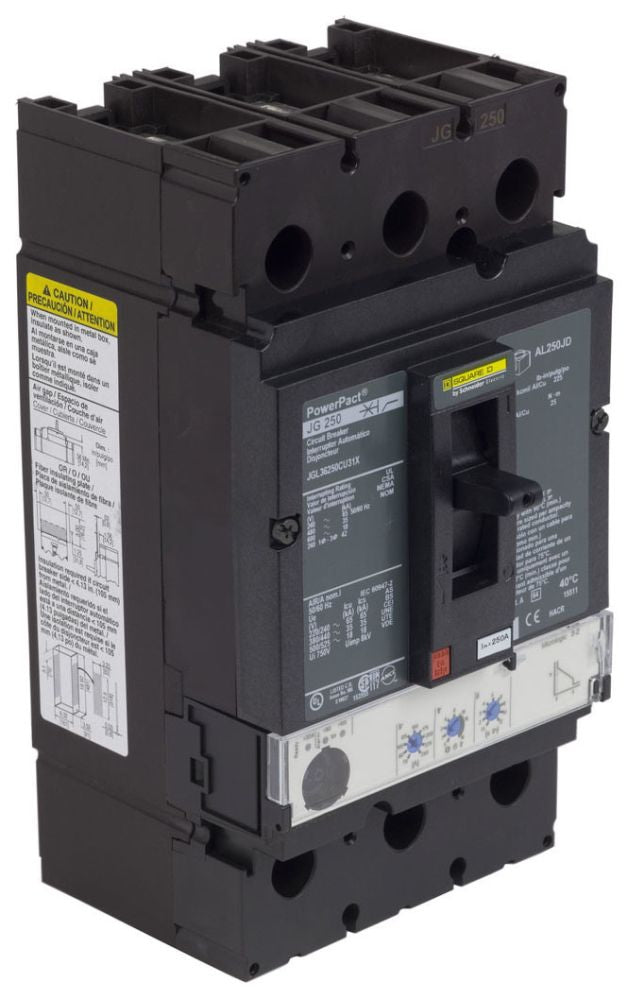

Square D JGL36250CU31X Circuit Breaker | 600V 250A 3P 35kA@480V Feed-Thru Powerpact

Product Description:
The Square D JGL36250CU31X is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole breaker rated for 600 Volts and 250 amps, with an AIC rating of 35kA at 480V. This model features solid state protection and a feed-thru lug connection for reliable performance.

Key Features:
✔ Part Number: JGL36250CU31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JGL
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: G
✔ MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
✔ Protection: Solid State
✔ UPC: 785901582014
✔ GTIN: 00785901582014
✔ Country of Origin: Mexico
✔ Dimensions: 4.12 in x 7.52 in
✔ Weight: 2.27
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
